breaker is tripped, the tool will NOT be able to conduct battery current to the tip even
when the power switch is pressed. Intentionally tripping the breaker and using the
tool to probe can be considered an added precaution against accidental pressing of
the power switch.
2.8 Work mode
There are four modes to diagnose the electrical systems, which can be accessed by
depressing the Mode Button and cycling through each one.
DC voltage

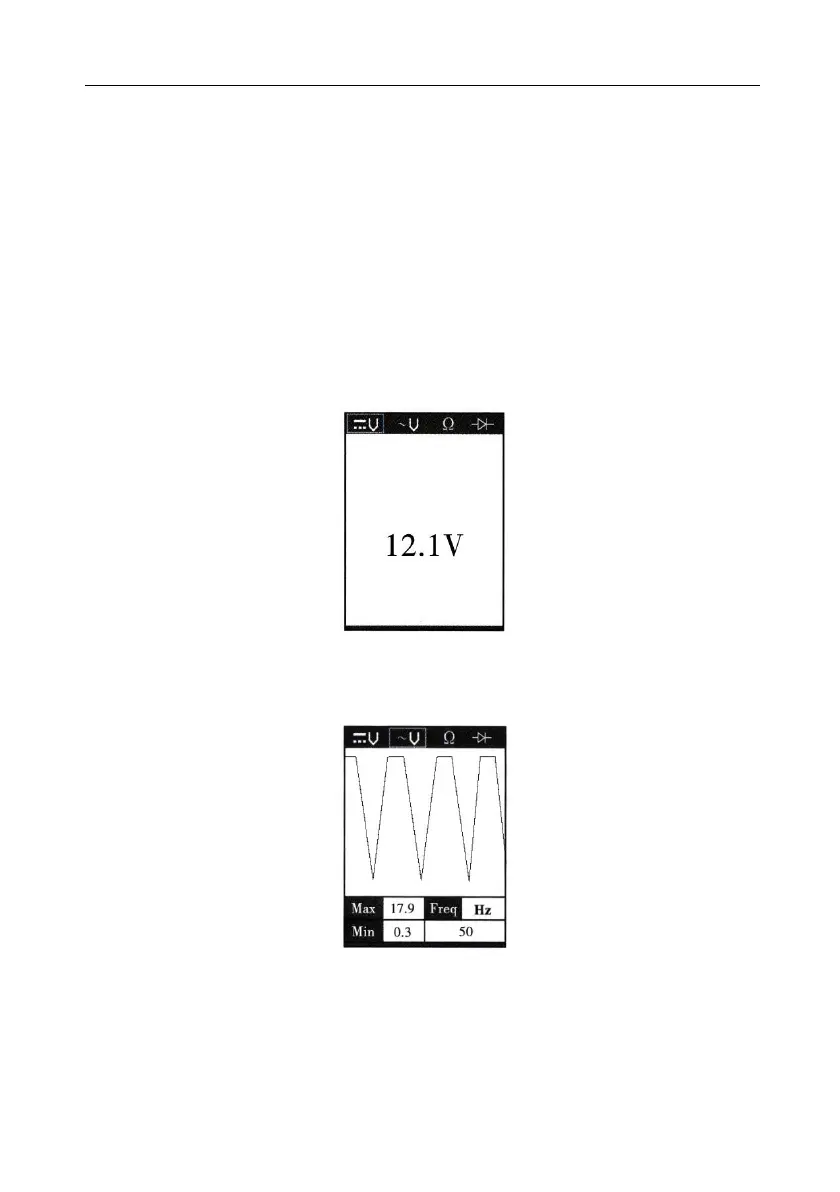

While the tool in this mode, contact the probe tip to a circuit, then the LCD display will
read the DC voltage with a resolution of 0.1 volt. (Figure 2)
Figure 2
AC voltage
While the tool in this mode, contact the probe tip to a circuit, then the LCD display will
read the Max. voltage, the Min. Voltage and frequency (Figure 3).
Figure 3
Resistance
While the tool in this mode, contact the probe tip to a circuit, then the LCD display will
read the resistance between the tip and auxiliary ground lead. (Figure 4)
