115XT HiQ COAXIAL STAGE MONITOR
User Manual
VERSION 1
HiQ_UM_ML_1
www.l-acoustics.com
8 en
5 115XT HIQ COAXIAL STAGE MONITOR
L-ACOUSTICS
®
115XT HiQ features a 3’’ diaphragm compression driver loaded onto a constant directivity conical
waveguide united in a coaxial configuration with a 15’’ low frequency transducer, integrated into a compact low profile
bass-reflex tuned enclosure.
Managed by the LA4 amplified controller, the two-way active filtering encompasses advanced crossover functions,
system EQ, HF and LF transducer time-alignment, and protection of the transducers. The linearization and protection
of the transducers is defined by the drive parameters contained in the LA4 amplified controller. The nominal impedance
of the 115XT HiQ enclosure is 8 ohms.
The coaxial transducer and conical waveguide arrangement produces a 50° axi-symmetric directivity output along with a
smooth tonal response free of secondary lobes over the entire frequency range, and provides immunity to feedback.

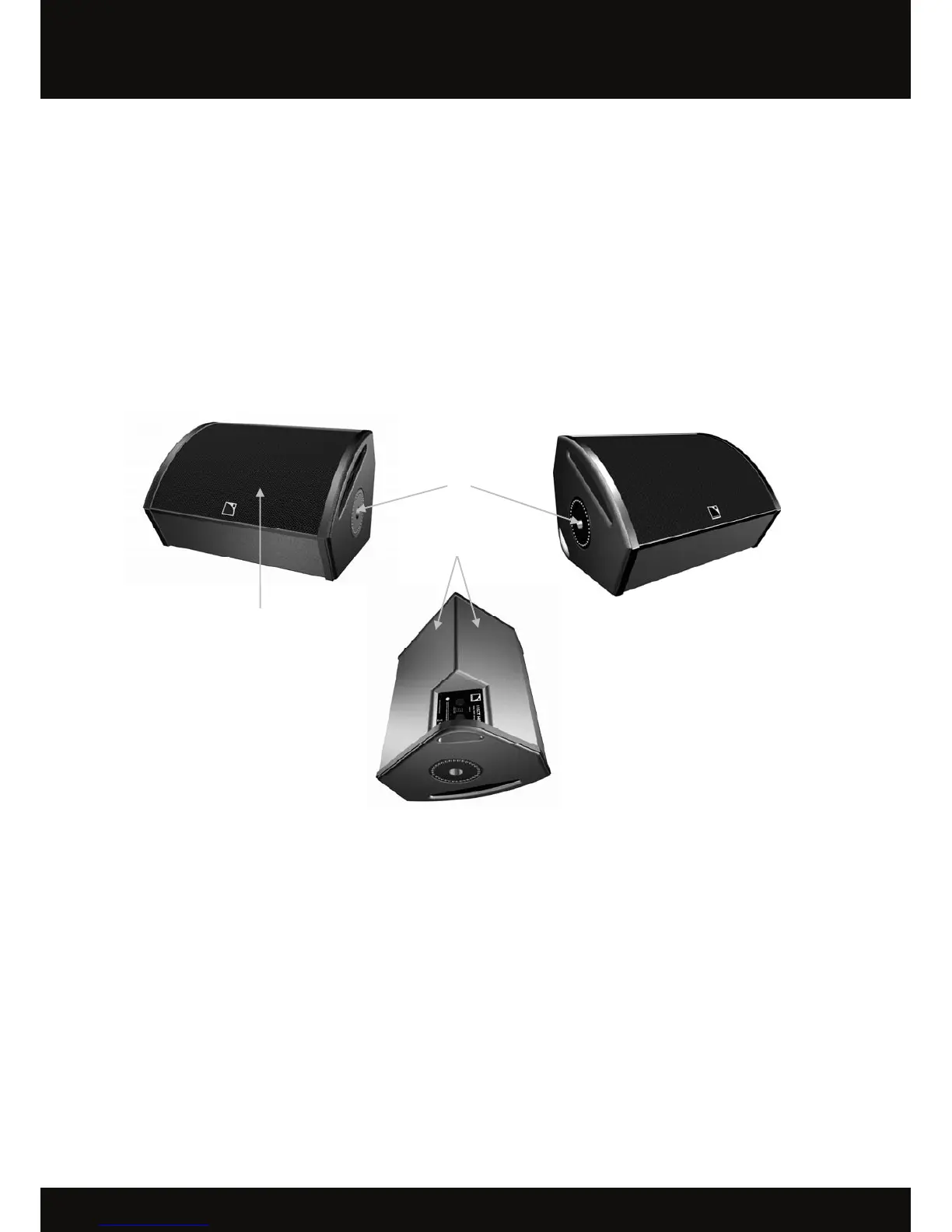

Figure 2: 115XT HiQ enclosure with rigging components
The wedge-shaped cabinet design makes the 115XT HiQ perfectly suited to short or long throw monitoring use with
two fixed angle settings of either 30˚ or 60° with regard to the vertical. The cabinet also features two pole sockets to
mount the cabinet on a pole stand or to fly the cabinet using the complimentary L-ACOUSTICS
®
ETR15 or
XTLIFTBAR accessories.
The 115XT HiQ cabinet is made of high grade Baltic birch plywood, with remarkable mechanical and acoustic
properties.
Grill
Pole mount sockets
Wedge-shaped cabinetry
