Angle settings with KARAIIi-TILT
Angle settings with KARAIIi-TILT

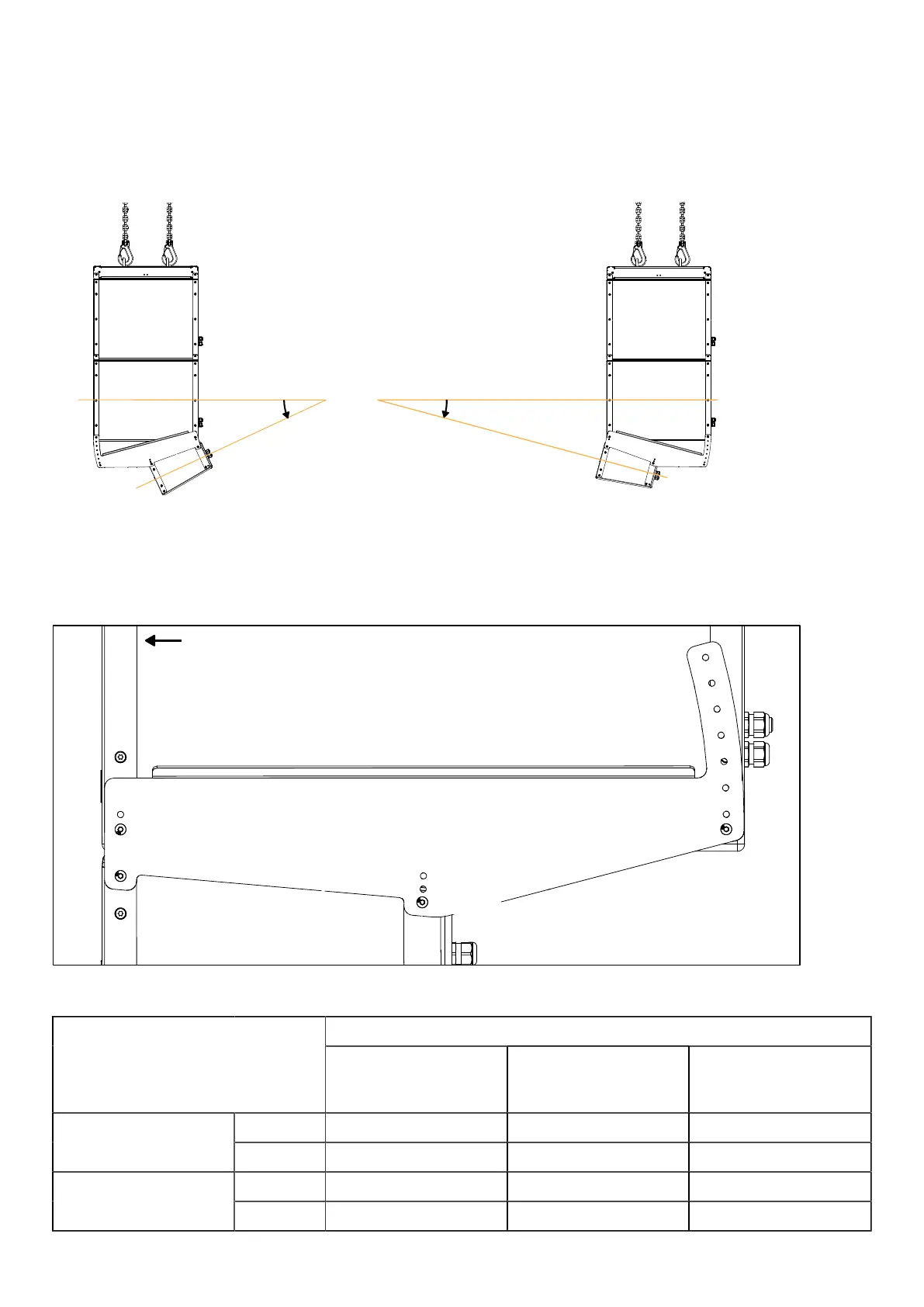

About inter-element angles
An inter-element angle is the splay angle between two elements of a line array.
+25°
-15°
positive inter-element angle negative inter-element angle
Angles in standard orientation
In standard orientation, the inter-element angle can be set between +5° and -15° in 2.5° steps.
FRONT
A
A 0°
A -2.5°
A -5°
A -7.5°
A -10°
A -12.5°
A -15°
B1
B2
B +2.5°
B +5°
AB1
AB2 (0°)
KARAIIi-TILT holes used in standard position
inter-element angle
Linking points
0°, -2.5°, -5°, -7.5°,
-10°, -12.5°, -15°
0° with reduced
space between
enclosures
+2.5°, +5°
front A B1 B1On SB18 IIi
rear A angle set B2 B2
front AB1 AB1 AB1On Kara IIi
rear AB2 AB2 B angle set
Kara IIi owner's manual (EN) version 2.0 137
