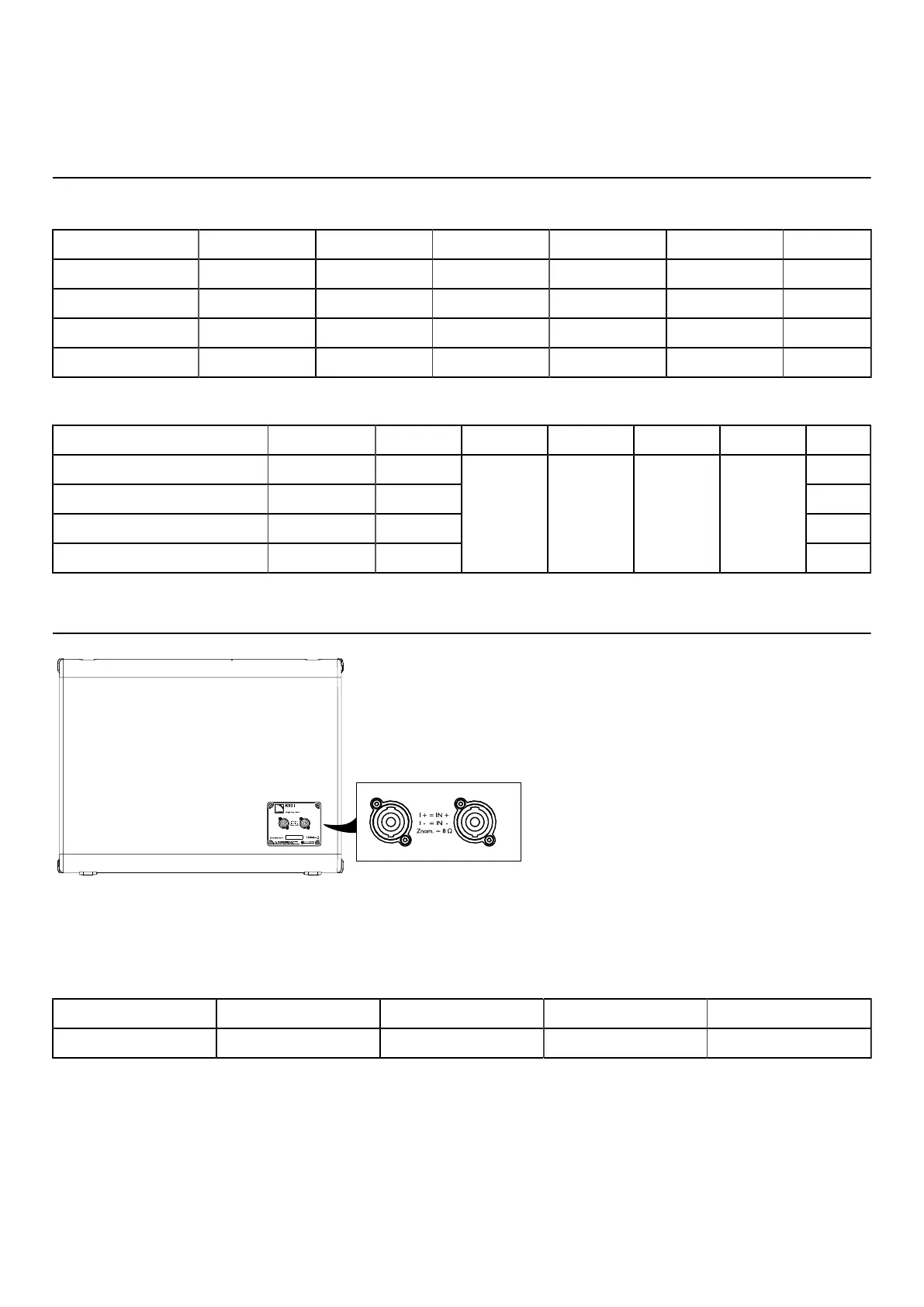

Electro-acoustical description
Electro-acoustical description
Preset description
[KS21_60] [KS21_100]
outputs channels routing gain delay polarity mute
OUT 1 SB IN A 0 dB 0 ms + ON
OUT 2 SB IN A 0 dB 0 ms + ON
OUT 3 SB IN A 0 dB 0 ms + ON
OUT 4 SB IN A 0 dB 0 ms + ON
[KS21_60_C] [KS21_100_C] [KS21_60_Cx] [KS21_100_Cx]
loudspeaker elements outputs channels routing gain delay polarity mute
SR OUT 1 SR ON
SB OUT 2 SB ON
SB OUT 3 SB ON
SB OUT 4 SB
IN A 0 dB 0 ms +
ON
Connectors
KS21
2 × 4-point speakON
Internal pinout for L-Acoustics subwoofers
speakON points 1 + 1 - 2 + 2 -
Transducer connectors LF + LF - Not linked Not linked
KS21 owner's manual (EN) version 2.1 11
