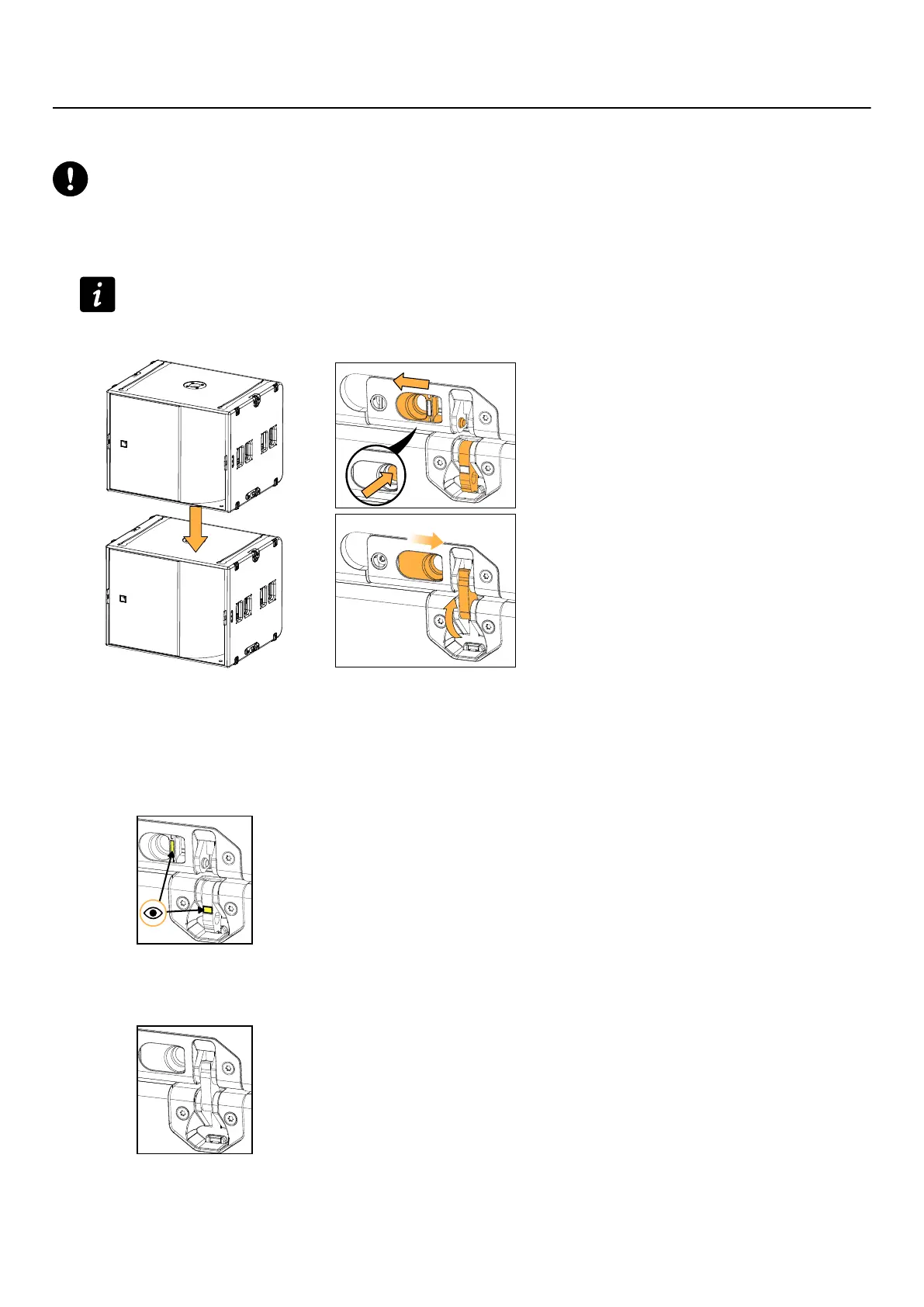

Inspection and preventive maintenance
Rigging check
About this task
The procedure is described with two KS21 but can be executed identically with two A15 Wide/Focus.
Procedure
1. Secure one KS21 on top of another one.
Push and slide to unlock the spring-loaded pin.
Connect the rigging systems on both sides.
SHLAK!
• The rigging arm is removed from its storage position with some resistance.
• When pushing and sliding the mechanism, the spring-loaded pin is retracted with some resistance.
• Upon release, the spring-loaded pin quickly returns to its initial position.
• The yellow labels on the rigging arm and on the spring-loaded pin are visible when the rigging system is not
locked.
not locked
• No yellow labels are visible when the rigging system is locked.
locked
42 KS21 owner's manual (EN) version 2.1
