Rigging system description

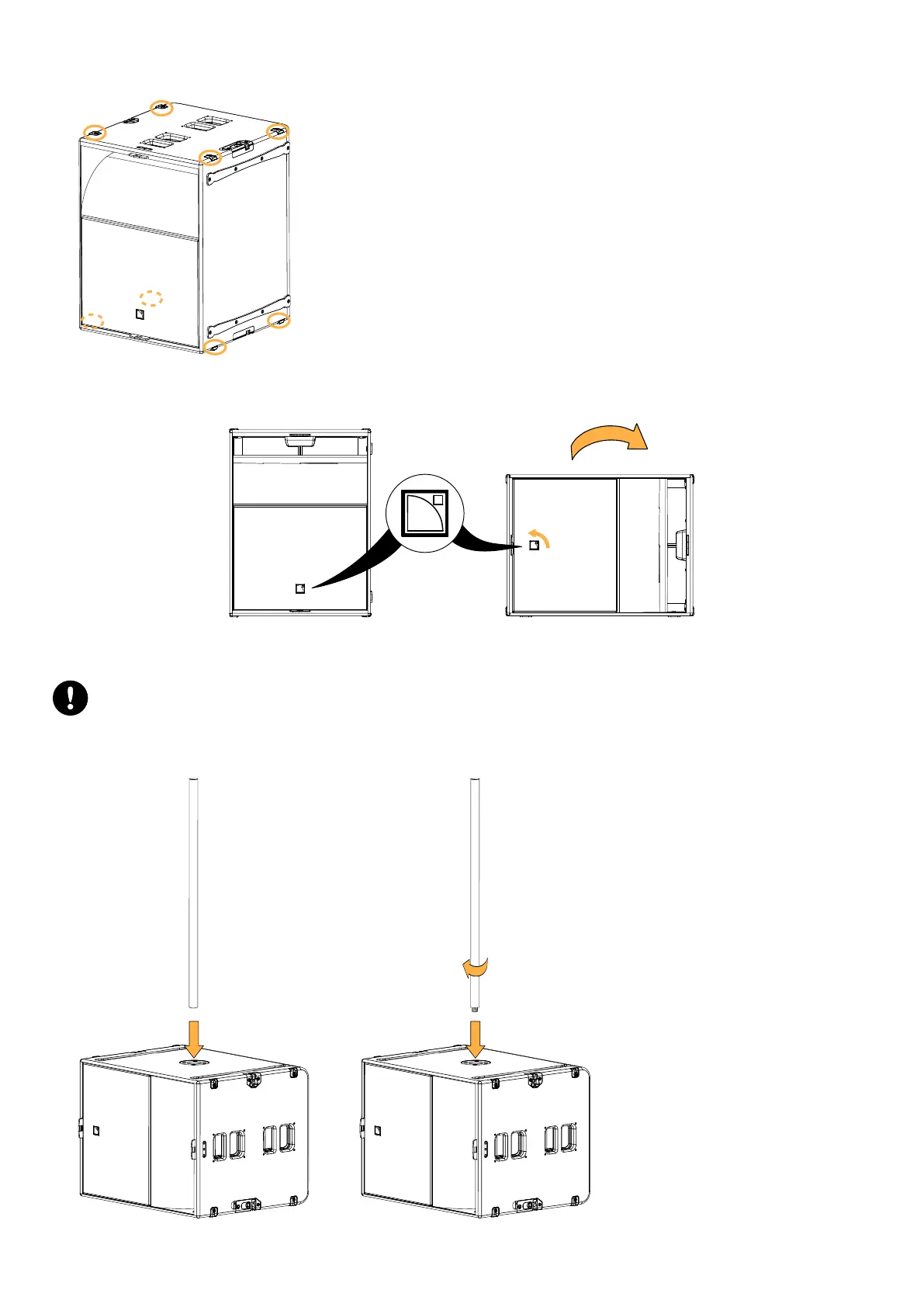

Eight corner stops protect the side panels during handling.
The logo on the enclosure front can be rotated to adapt to every conguration.
KS21 features a 35 mm pole-socket which contains an M20×150 insert.
Use a 35 mm diameter pole
The pole can be non-threaded or with M20 thread.
Use an adapter for poles with other dimensions, for example the 21329 adapter by K&M, available on
www.k
‑
m.de/en.
KS21 owner's manual (EN) version 2.1 13
