Corrective maintenance

D/R - Fixing bars

Tools

• torque screwdriver

• T30 Torx bit

Repair kit

G03409

KR loudspeaker 21 KS21

×2

S253

M6 × 55 Torx

Prerequisite

Grill removed. See Grill (p.59).

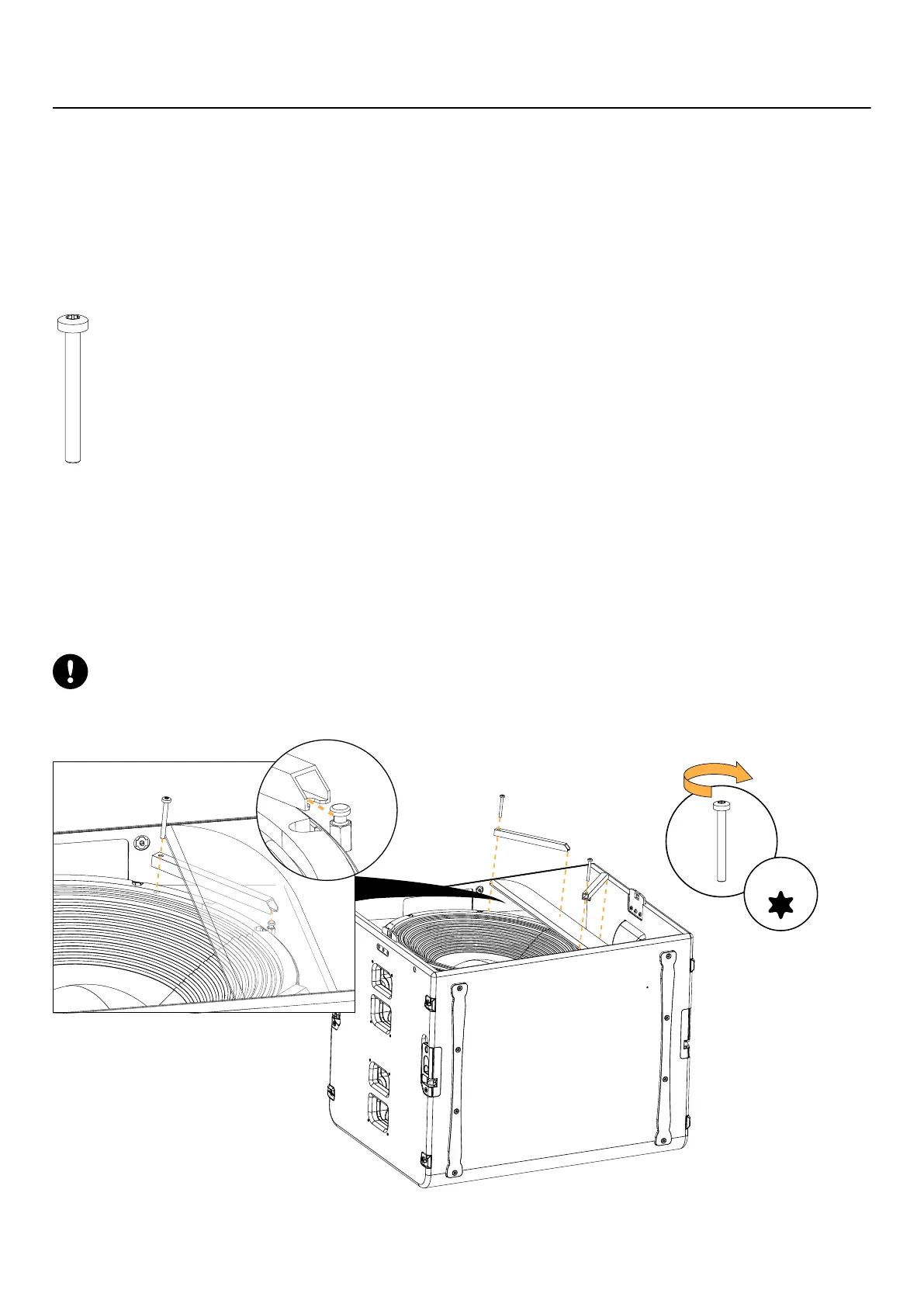

Exploded view

For safety reasons, always use the new screws and spare parts provided in the KR.

If no new screws are available, use blue threadlocker.

Slide the xing bars under the vent panel to attach them to the studs, then secure them with the screws.

5 N.m

T30
