L-Acoustics MTD115b - Mtd108 A FLOOR MONITOR SYSTEM; Figure 7 A: Mtd108 A Floor Monitor System Block Diagram; Figure 7 B: Mtd108 A Floor Monitor System Cabling Detail

L-ACOUSTICS MTD Manual V1.2 11/30/2004 27
4.1 MTD108a FLOOR MONITOR SYSTEM

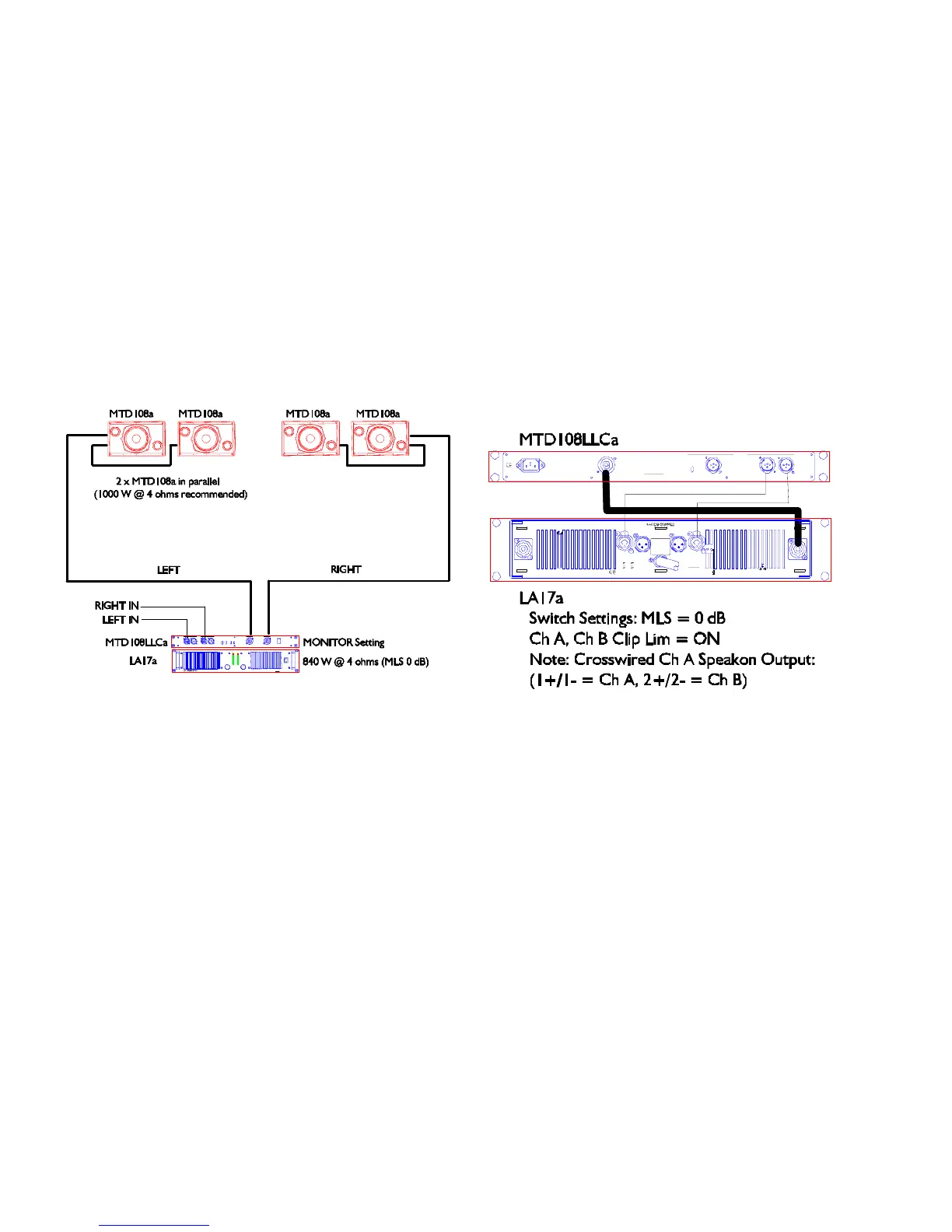

Figure 7a: MTD108a Floor Monitor System Block Diagram
Figure 7b: MTD108a Floor Monitor System Cabling Detail
