L-Acoustics MTD115b - Mtd115 B (PASSIVE) FOH SYSTEM (MONO SUB); Figure 14 A: Mtd115 B (Passive) FOH System Block Diagram (Mono Subwoofers); Figure 14 B: Mtd115 B (Passive) FOH System Cabling Detail (Mono Subwoofers)

L-ACOUSTICS MTD Manual V1.2 11/30/2004 34
4.8 MTD115b (PASSIVE) FOH SYSTEM (MONO SUB)

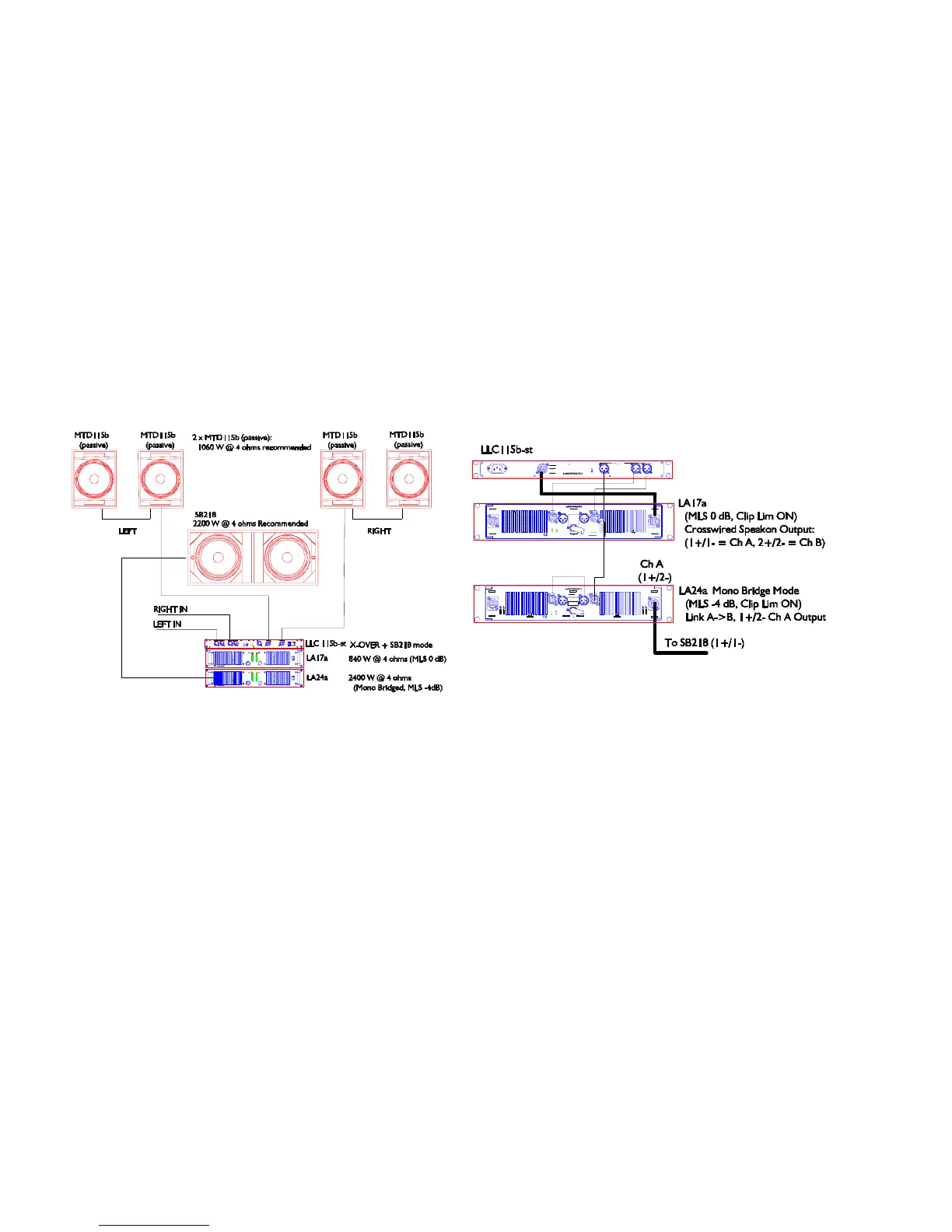

Figure 14a: MTD115b (passive) FOH System Block Diagram (mono subs)
Figure 14b: MTD115b (passive) FOH System Cabling Detail (mono subs)
