L-ACOUSTICS MTD Manual V1.2 30-11-04 51
6. INSTALLATION PROCEDURES
6.1 ETR8 U-BRACKET ATTACHMENT(MTD108a)
(1) MTD108a and ETR8 U-bracket
(2) Remove locking pin on the pivoting arm
(3) U-bracket stud mates with MTD108a pole mount socket
(4) Remove recessed set screw
(5) Rotate pivoting arm into position, select angle
(6) Secure the locking pin on the pivoting arm
(7) Three attachment points are available for ceiling
or scaffold mounting in the horizontal orientation
(8) Always install with the fixed arm on the bottom when
installing the MTD108a in the vertical orientation

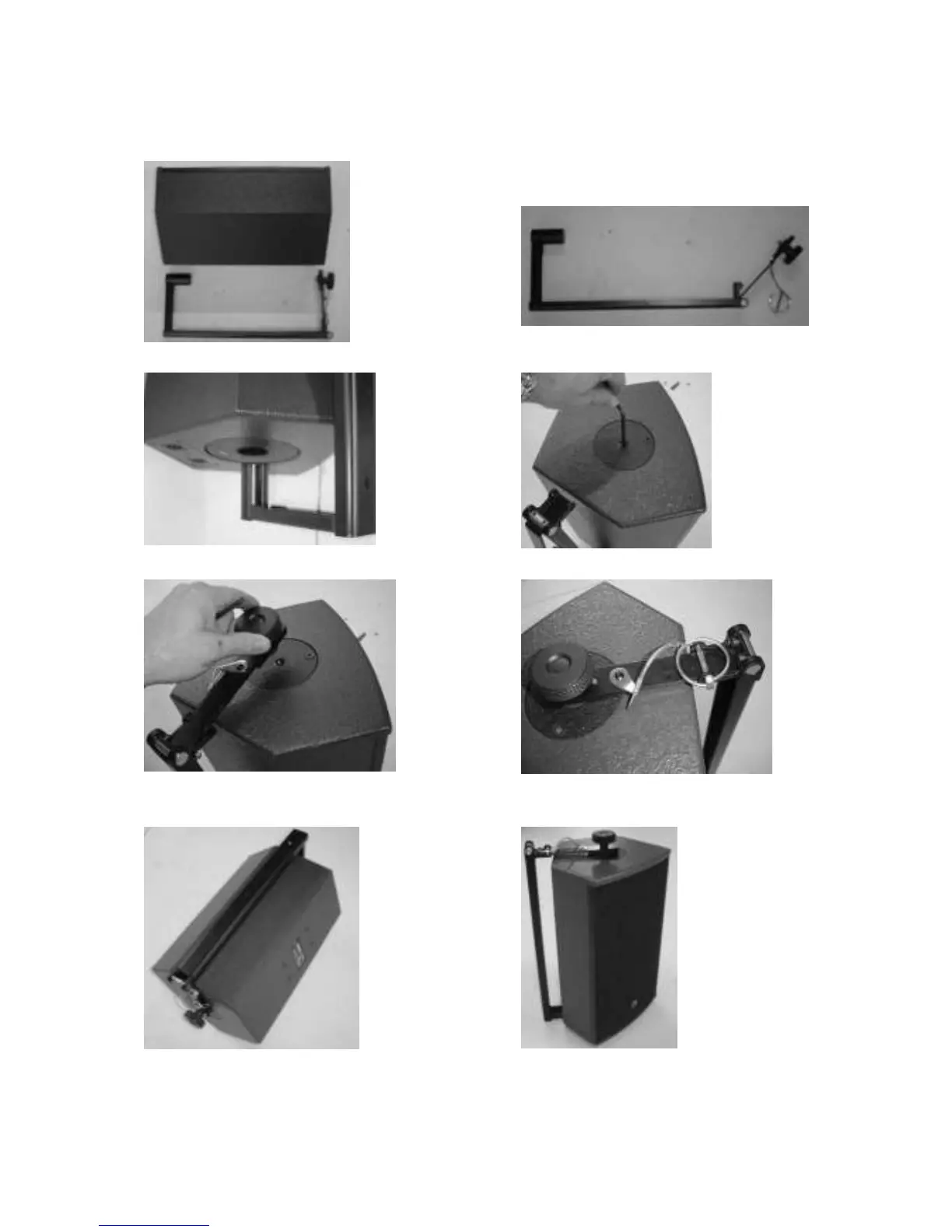

Figure 27: ETR8 U-bracket installation procedure
