Technical Data
This range is supplied set for Natural gas.
A conversion kit from Natural Gas to Propane gas is included.
INSTALLER: Please leave these instructions with the User.

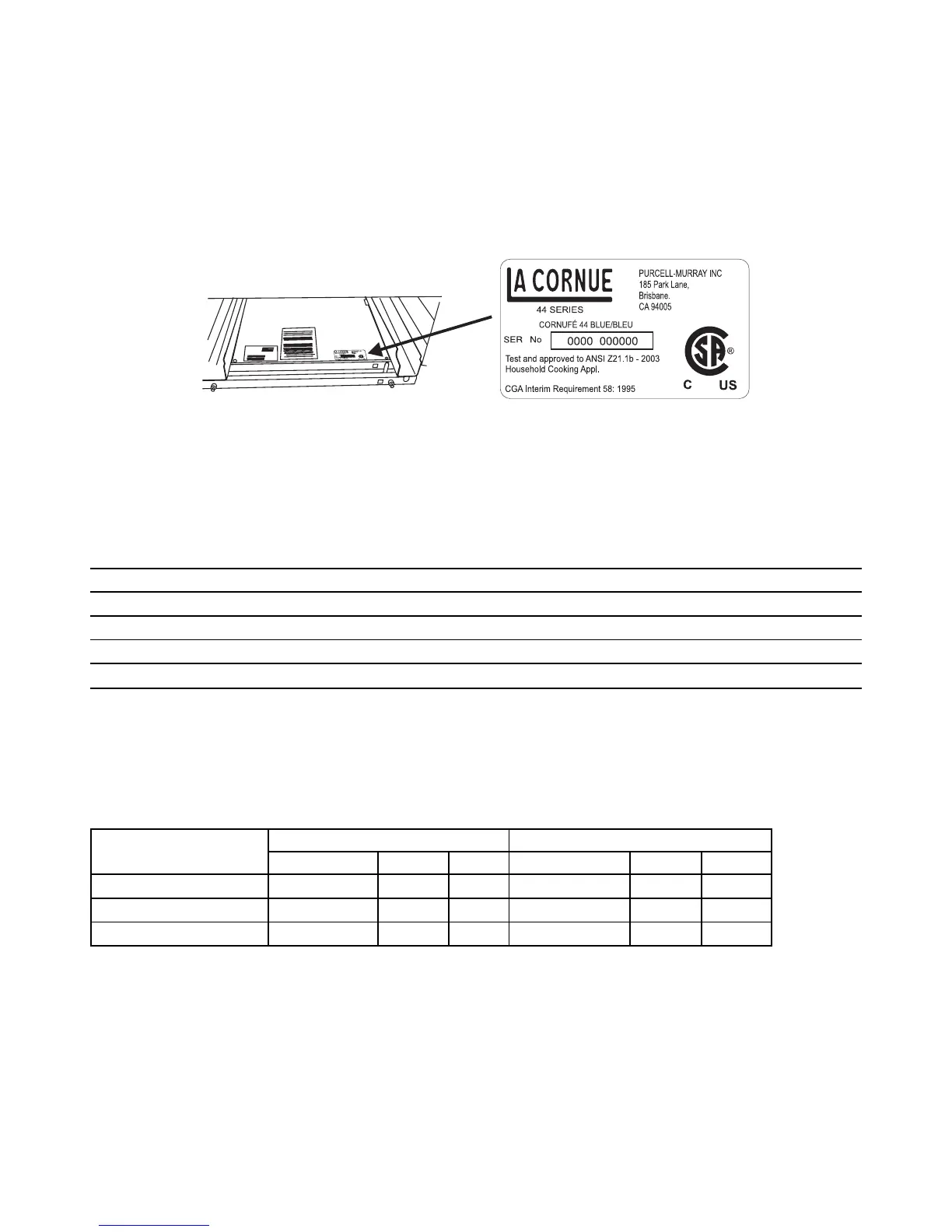

DATA BADGE LOCATION: Inside base of drawer cavity - remove drawer. For removal of drawer see installation
instructions.
Country of Destination: USA/Canada
Gas Electric
Natural Gas 4.0” W.C (10 mbar) 240V 60Hz
Propane 10.0” W.C (25 mbar)
(See appliance data badge for test pressures)
Dimensions
Overall height minimum 35 13/16” (91 cm) maximum 36 7/8” (93.7 cm)
Overall width 43” (109.2cm) See ‘Positioning the Range’
Overall depth 28 5/8” (72 .5cm).
Space for fi xing See ‘Positioning the Range’
Minimum space above cooktop 31.5” (80cm)
Connections
Gas : Electric:
½” NPT at rear right-hand side 240 V 60 Hz
Ratings
Cooktop
Natural Gas Propane Gas
Input Orifice Screw Input Orifice Screw
Center burner 17,500 Btu/hr 205 82 17,500 Btu/hr 118 49
Large Burners 12,000 Btu/hr 150 70 12,000 Btu/hr 99 38
Right hand front Burner 6,000 Btu/hr 112 53 6,000 Btu/hr 68 31
Gas burner inputs based on Gross Calorifi c Value
