Lab12 suono- 25W Class A Single Ended Power Amplifier
Page 7 of 9
Rear Panel
SUONO
Rear
panel

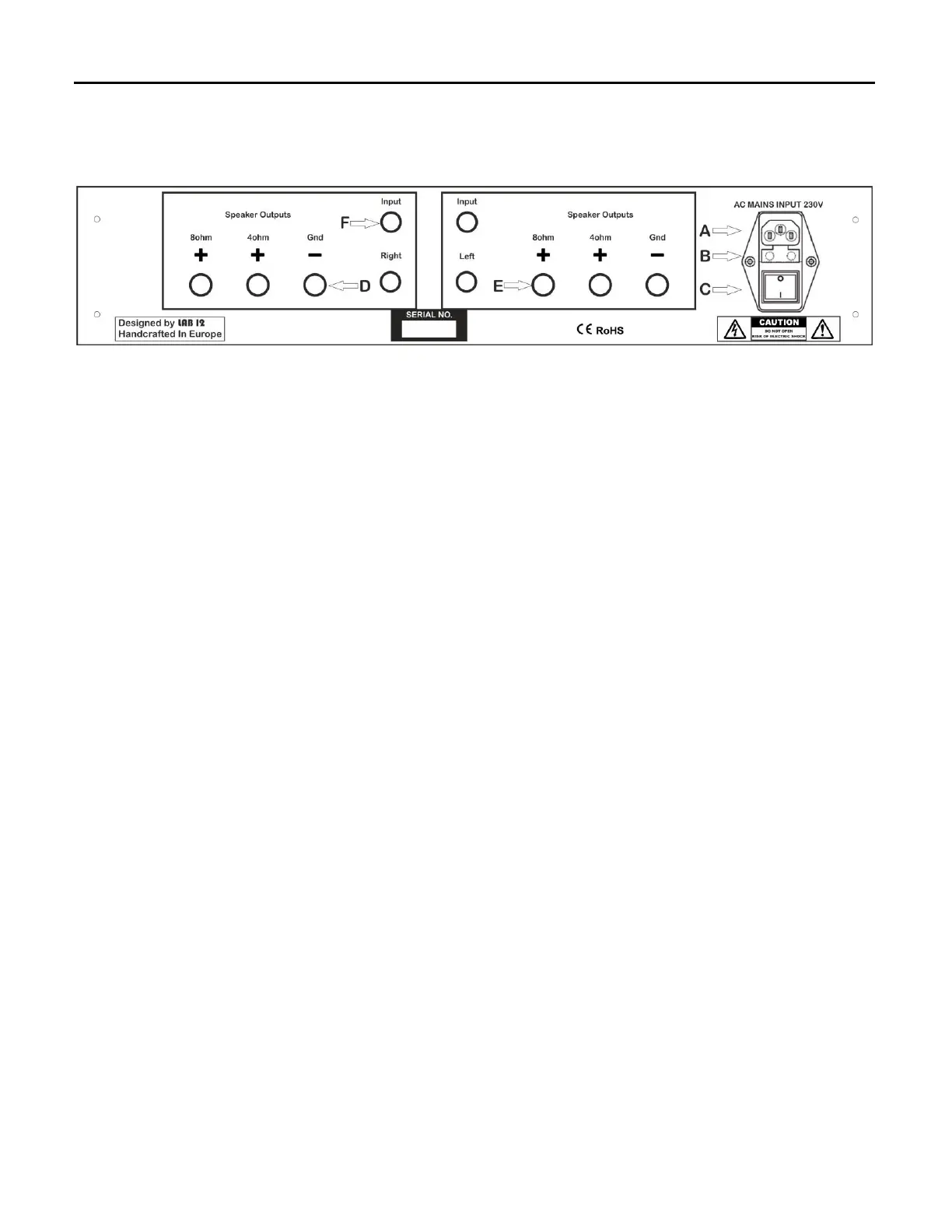

In the rear panel you will find the connection inputs and outputs.
To the right side you will find an IEC AC input. Below IEC input (A), the main fuse holder (B) and the
Power switch (C) are located.
A pair of RCA connectors (F) is located about in the middle of the back panel. It is the input of the signal
from your preamplifier.
Bellow signal input you can find the speaker outputs. (D & E). You have the choice of 4 or 8 ohm output
for perfect matching with your speaker impedance.
