3
Introduction
Thank you for purchasing a LAB.GRUPPEN power amplifier. This manual contains important information on
operating your amplifier correctly and safely. Please take some time and read this manual to familiarize yourself
with the amplifier.
The front panel

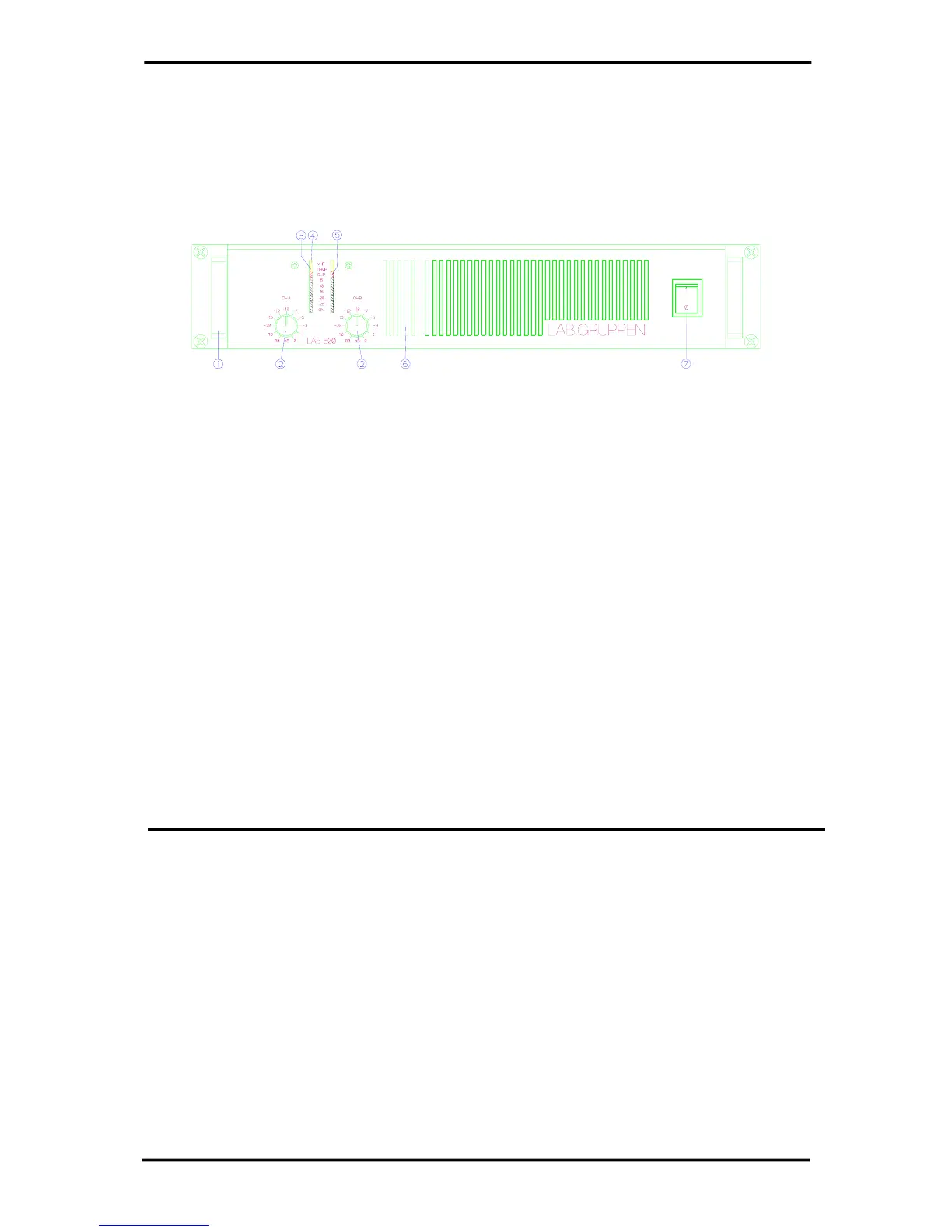

Figure 1. Front panel
1. Carry/protection handle
Both handles can be used to carry the amplifier,
they also act as protection for the front panel. If so
desired they can be removed (by removing the
screws behind the front panel) for fixed installations,
or racks where the front covers are to shallow.
2. Input level attenuators
These controls are used to alter the signal level
entering the amplifier. They are calibrated in dB to
help set up active loudspeaker systems or cut down
unwanted noise from the input signal.
(See page 7).
3. Over temperature protect indicator.
This indicator is lit if the amplifier tries to
operate above its maximum operating
temperature(90
o
C). The indicator first comes on as a
warning to either turn down the input level or check
the cooling arrangements after which point the
amplifier will mute the input signal.
When the cooling fan have returned the output
heat sinks to the normal operating temperature the
input signal is unmuted.
4. VHF protection indicator
This indicator lights when constant signals,
above 20 kHz at full power, are present at the output
terminals. When this happens the input signal is
muted and the process cycles until the VHF signal is
no longer present. (See page 8).
5. Clip/limit indicator
This indicator tells when the amplifier output is
clipping or limiting.
6. Fan grill filter.
A foam filter is located behind the front panel to
prevent dust entering the amplifier.
7. Power actuator
This is used to start the amplifier. (See page 4 and 7).
