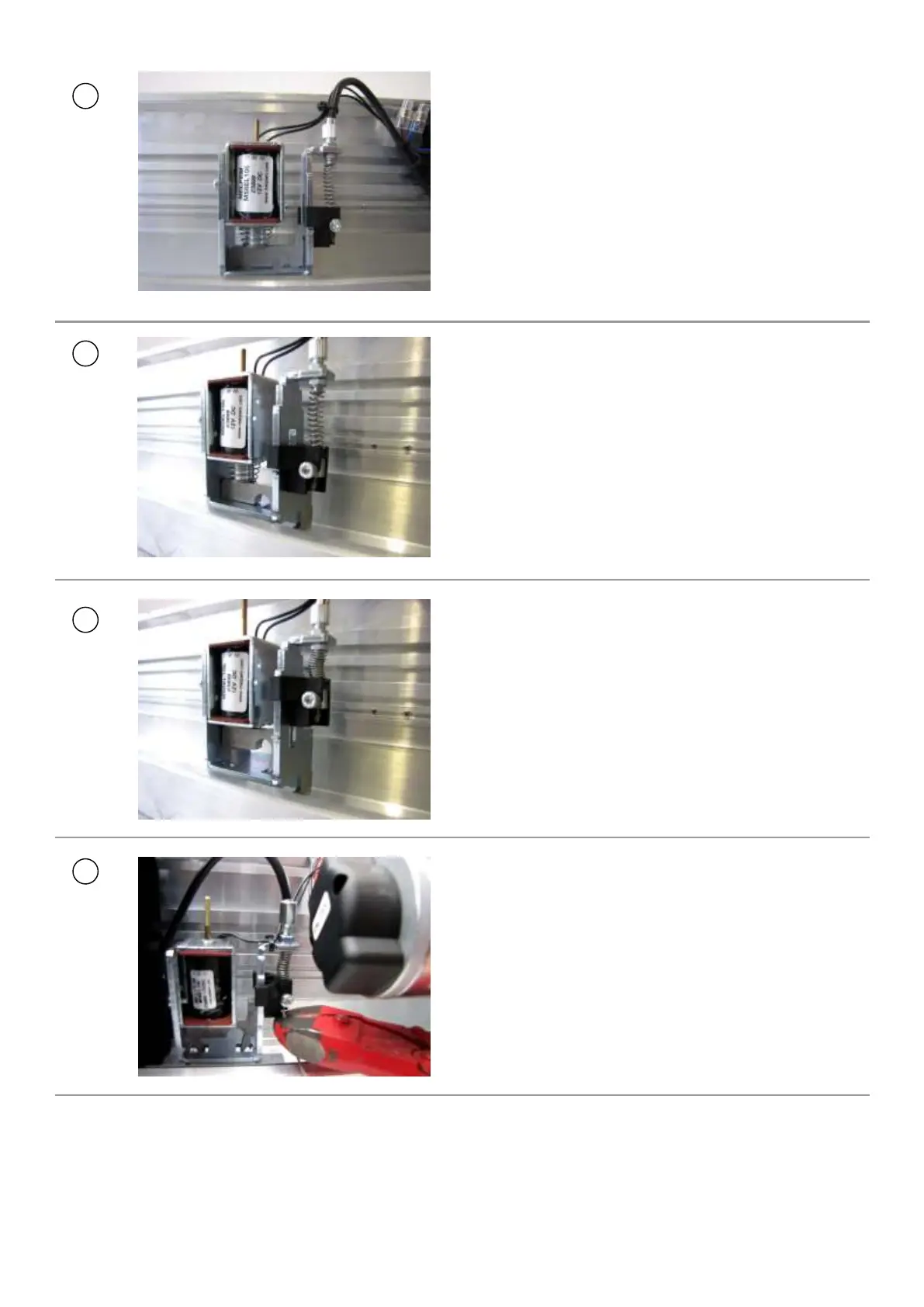

Insert the compression spring and insert the metal cable inside
the special release anchor, then lock it with the screw clamp.
Adjust the cable tension so to give the spring a light pre-load.
Check that the manual release works, when the knob is in the
locked position, the electric lock must work normally.
When the knob is in the released position, the electric lock must
remain open and free the leaves.
Cut the exceeding steel cable from the release anchor.
NOTE:
In case of FAIL SECURE electric lock, by releasing the release, the electric lock will close.
In case of a bistable electric lock, by releasing the release, it will open.
In case it is necessary to manually close the door with a bistable electric lock, it will be sufficient to lift the core of the secondary
solenoid with a screwdriver.
