Label EVOLUS - Left Side Fastening; Single Leaf Operator Installation

13
N
O
P

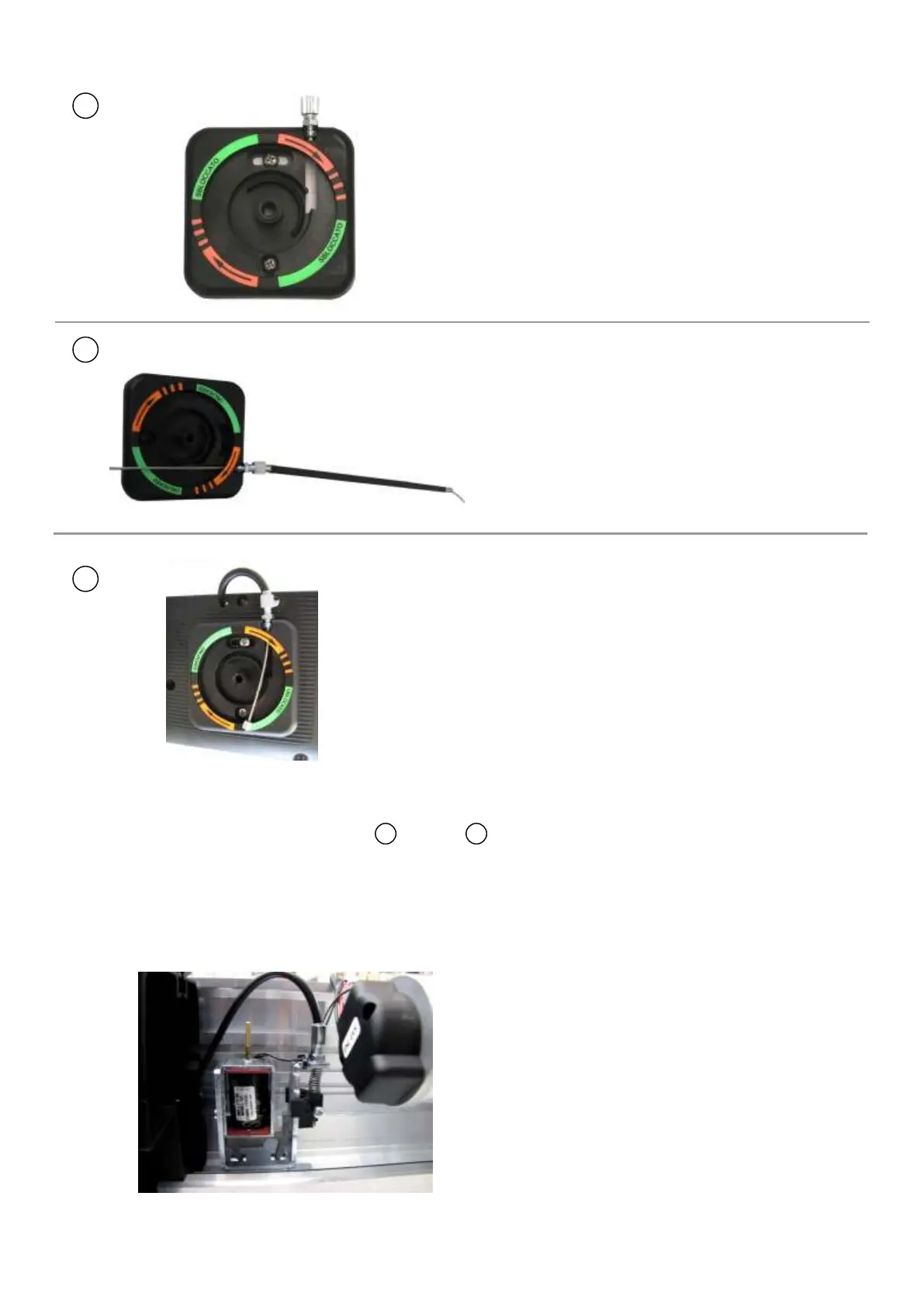

Is even possible to install the release knob on the left side of the
automation.
In this case, the adjustment register must be fastened on the
base of the release knob.
Insert the steel cable inside the adjustment register and the
sheath...
...and fasten the base of the release knob to the side panel
using 2 self-threading screws.
3b) LEFT SIDE FASTENING
3c) ELECTRIC LOCK INSTALLATION ON SINGLE LEAF EVOLUS OPERATOR
In case of single-leaf installation, the electric lock must be
installed at one end of the transom.
In this case the sheath and the metal cable are inserted directly
inside the electric lock without using the release plastic
components.
FOLLOW THE INSTRUCTIONS FROM ITEM TO ITEM .
