Lacanche MACON - Hob and Oven Gas Type Conversion

INSTALLER’S MANUAL
CHANGING GAS TYPE (Changing the Jets on a Gas Cooker)
HOB :

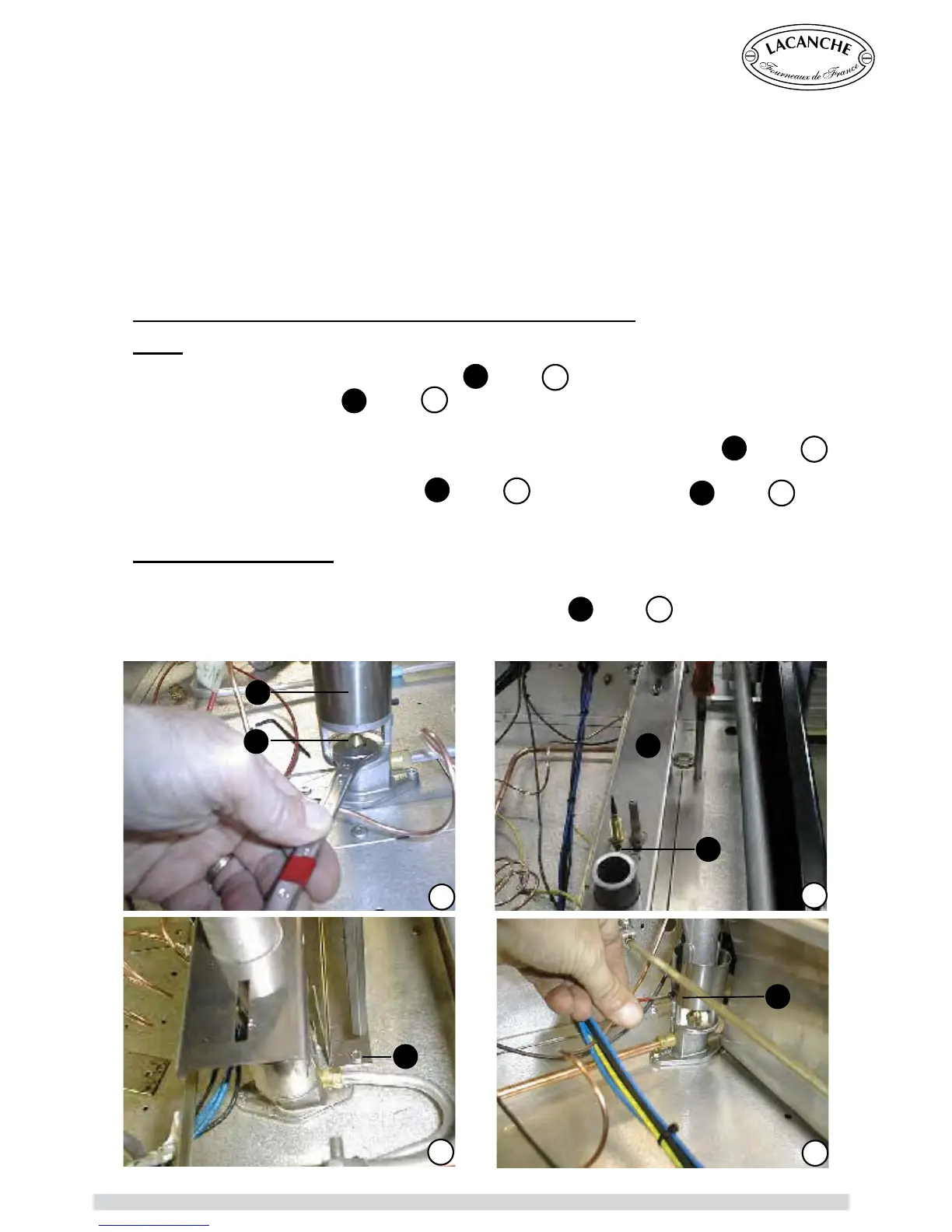

► Lift the air ring up to reveal the injector (see
A
, figure
1
).
► Replace the injectors (see
B
, figure
1
) in accordance with table 5 in appendix 0 ( Ø in 1/100
mm).
If necessary, the mixer tubes of the lateral burners maintained by a cross-bar (see
C
, figure
2
),
may be released.
To release the tubes loosen screws (see
D
, figure
2
) and then screw (see
E
, figure
3
).
Note: Ensure that new jet is tted with a new washer, and tighten into place.
Adjusting the primary air :
► Put the burner in place and ignite it.
► Lower the air ring to appropriate level for that gas type (see
F
, figure
4
), tabel 6 in appendix 0.
(flame should be crisp, blue without any yellow).
Lacanche ranges are supplied with the appropriate gas tting for the gas type specied when the
order is placed. However, the setting must be ne tuned (COMMISIONED) when the cooker is
installed.
The cooker is designed to operate with the gases in table 4, appendix 0.
IMPORTANT : Close the mains gas valve before carrying out any works.
IMPORTANT
In case of use with a gas other than that for which the cooker was initially set up, it is cru-
cial to replace the injectors and modify the adjustments as dened below.
CHANGING GAS TYPE
wrench, 12
F
1
3
2
B
C
A
E
D
4
Chagny - Macon (UK) - Ft 138a - GB - Rév 06 - Modifié le : 07/10/2013 13/42
