Comissioning (ne tuning) gas burner :

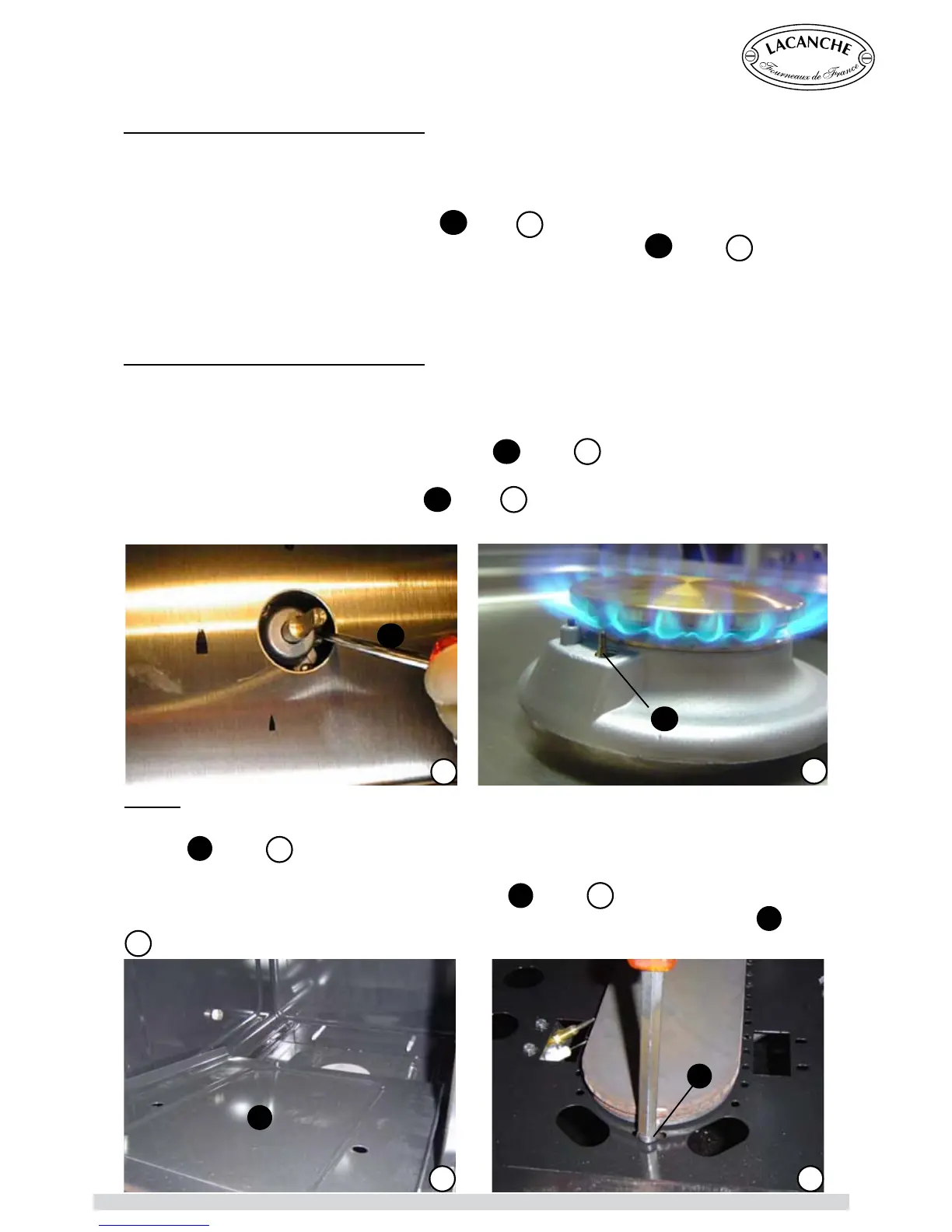

After connection or changing gas type, it is imperative to adjust for a ne tuning.
► Ignite all the burners on the hob.
► After a couple of minutes, reduce to lowest setting.
► Remove control knob by pulling it off (see
G
/figure
5
).
► Using a athead screwdriver adjust the simmer ame accordingly (see
G
, figure
5
).
Note: The ame is reduced to ¼ when you turn maximum to minimum. Looking for a crisp
blue ame without any yellow which does not go out when turned from maximum to mini-
mum.
Setting the safety thermocouple (Hob) :
If the burner goes out, having kept the control knob pushed in for roughly twenty seconds, check
that :
- The magnetic head grips the valve moderately, nger right.
- The ame touches the point of thermocouple (see
H
, figure
6
).
- The thermocouples and magnetic heads are absolutely clean.
Remove control knob by pulling it off (see
H
figure
6
).
Using a flathead screwdriver adjust the simmer flame
OVEN :
► Open oven door and remove oven base plate by pressing down and backwards and then lifting
out (see
I
, figure
7
).
► Remove drawer.
► Through the drawer aperture, loosen 7mm nut (see
K
, figure.
9
).
► Remove the 8mm nut and grub screw and washer within it at the front of the burner (see
J
, gure
8
).
CHANGING GAS TYPE
G
5
6
H
7
I
J
8
