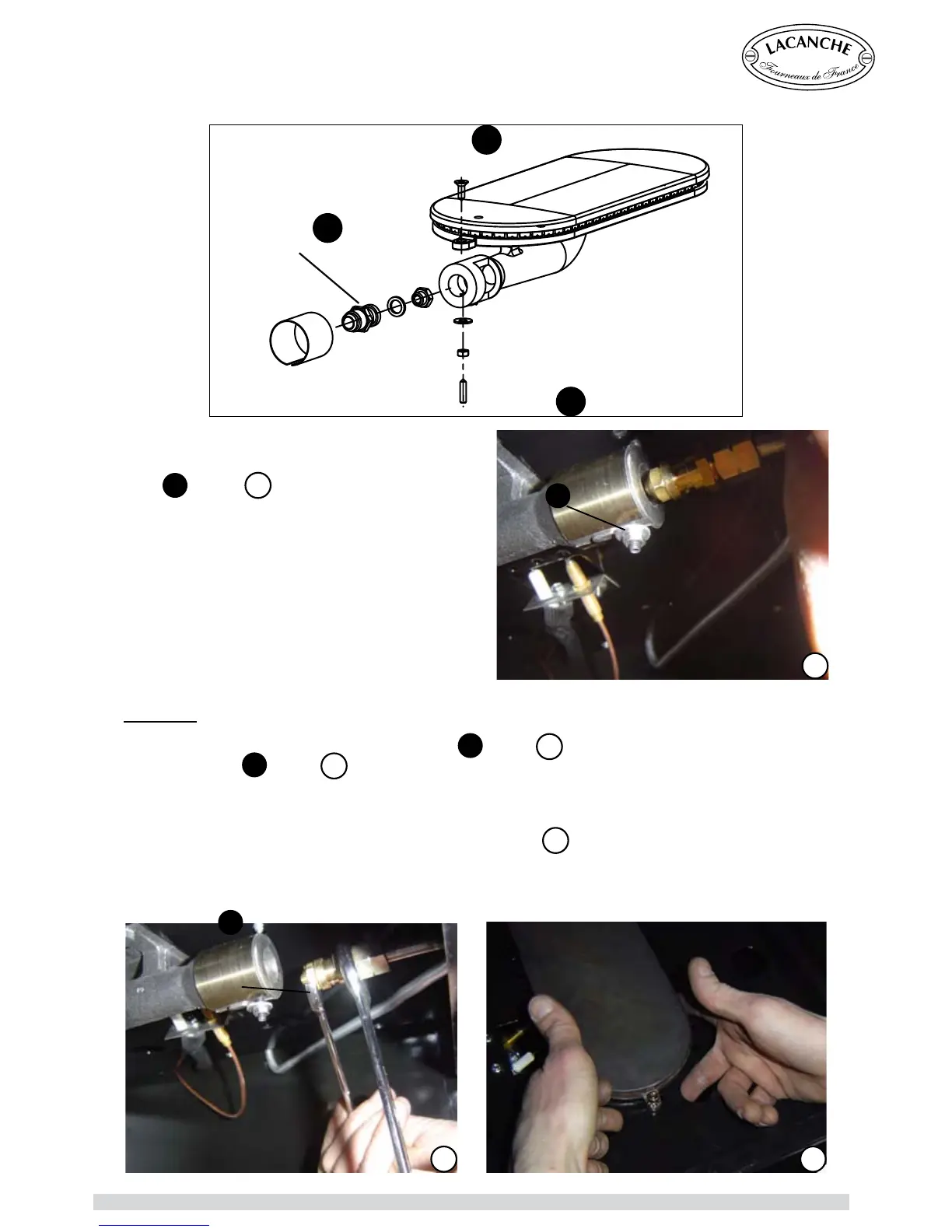

CHANGING GAS TYPE
Oven jet :
►With 12mm spanner tted to the injector (see
L
, figure
10
) and a 16mm spanner tted to the jet
housing (see
L
, figure
10
) unscrew the jet and remover with washer.
► Replace with the new jet and new washer (see appendix 6, table 0), and tighten.
►Replace burner body, remembering to push it backwards towards the rear of the oven once in
place. Secure with the grub screw, washer and nut. (figure
11
).
►Ret the gas pipe into the burner with only the grub screw and nut.
►Loosen the small grub screw inside the nut
(see
K
, figure.
9
) to release the gas pipe.
Carefully release the gas pipe running through
the air ring into the burner.
►Push the burner downwards and then slide
forwards towards front of oven, then lift the back
of the burner extracting the burner backwards
towards the back of the oven cavity.
Air ring
Injector
Screw
