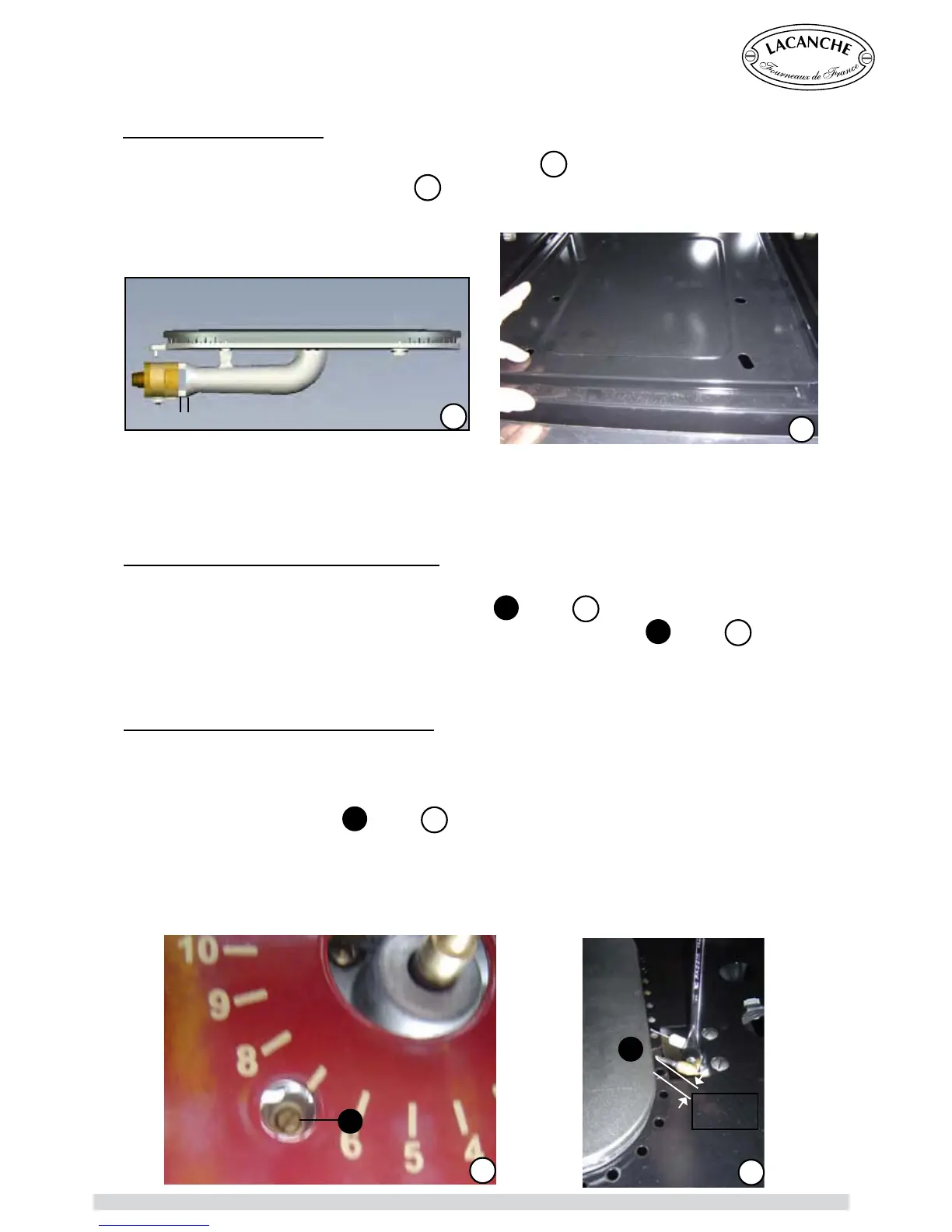

Comissioning (fine tuning) Oven Burner :
► Ignite the oven to Gas Mark 10. Wait for 15 minutes to reach temperature and then reduce to
minimum setting, and remove the control knob (see
M
, figure
14
).
► Using a athead screwdriver adjust the simmer ame accordingly (see
M
, figure
14
). The hole
allowing access for the screwdriver is located behind Gas Mark 7.
Note : The ame is reduced to ¼ when you turn maximum to minimum. Looking for a crisp blue
ame without any yellow which does not go out when turned from maximum to minimum.
Setting the safety thermocouple (Oven) :
If the burner goes out, having kept the control knob pushed in for approximately twenty seconds,
check that:
- The magnetic head grips the valve moderately, nger right.
- The tip of thermocouple (see
N
, figure
15
) should be touched by the ame without coming into
contact with the burner.
- The thermocouples and magnetic heads are absolutely clean.
Looking for a crisp blue ame without any yellow which does not go out when turned from maxi-
mum to minimum.
CHANGING GAS TYPE
3 mm
14
M
15
N
Adjusting the primary air :
> Adjust the airow by moving the adjusting air ring (figure
12
), table n° 7 appendix 0.
> Replace base plate and drawer (figure
13
).
12
13
Adjusting air ring
CAUTION : After connection or changing gas type, it is imperative to adjust for
a ne tuning.
