Prepare Trauma Arms (Accessory) 2/2
Attaching Trauma Arm

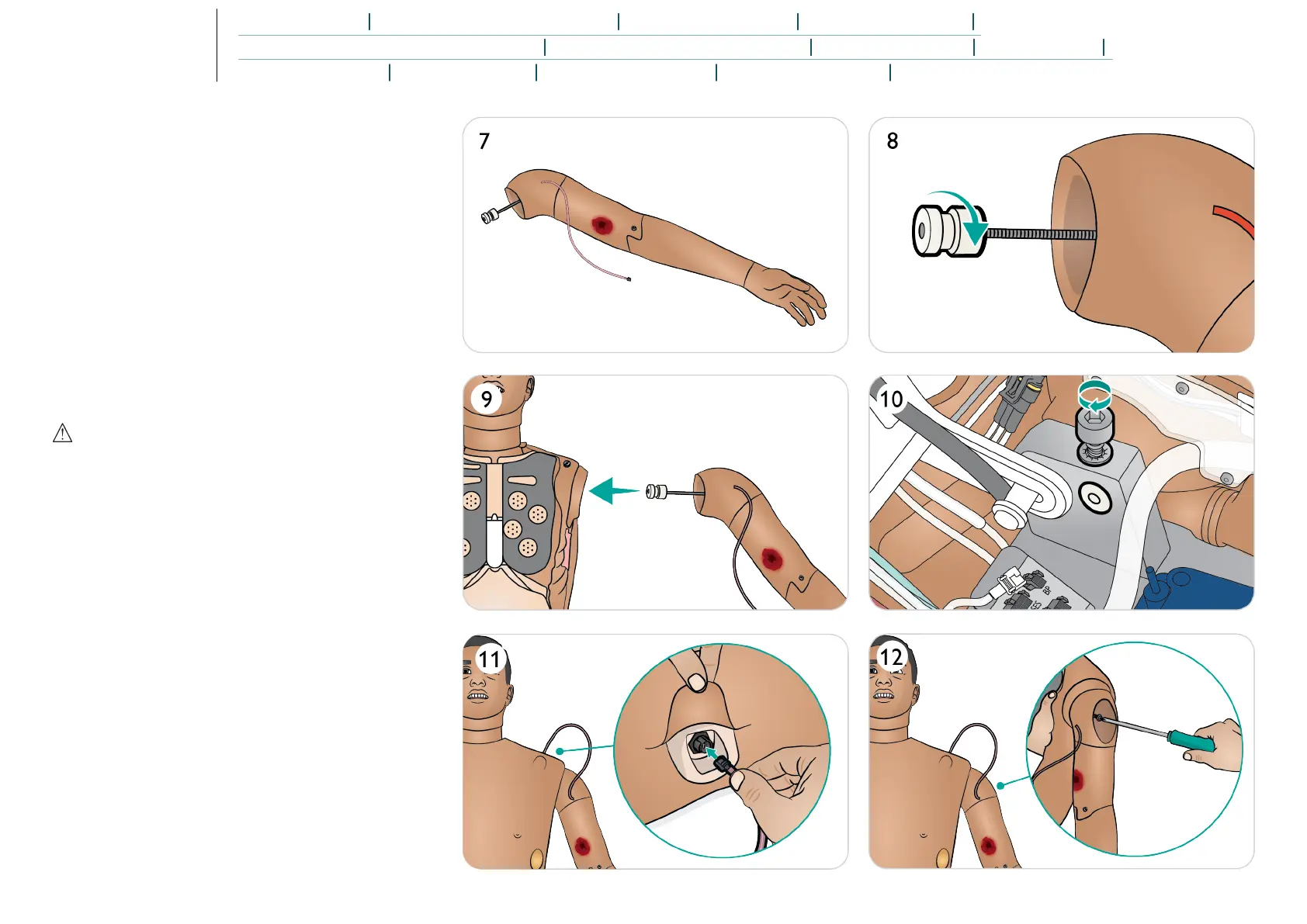

7. Select either the SimMan 3G Amputation or Gunshot Arm
with Arm Adapter and Adapter Screw.
8. Unscrew the Adapter Screw.
9. Insert arm into shoulder bracket.
10. Tighten arm bolt to secure.
11. Attach tube to desired blood port.
12. Tighten screw to adjust range of arm motion with a
screwdriver.
Caution
Do not over rotate arm. Over rotating the arm may cause
the red vinyl tubing to disconnect.
