SpO
2
Monitoring
The SimMan 3G PLUS SpO
2
finger contains a light diode and
light sensor. When the beam between the diode and sensor is
broken, the Patient Monitor Application registers that
the SpO
2
probe is connected.

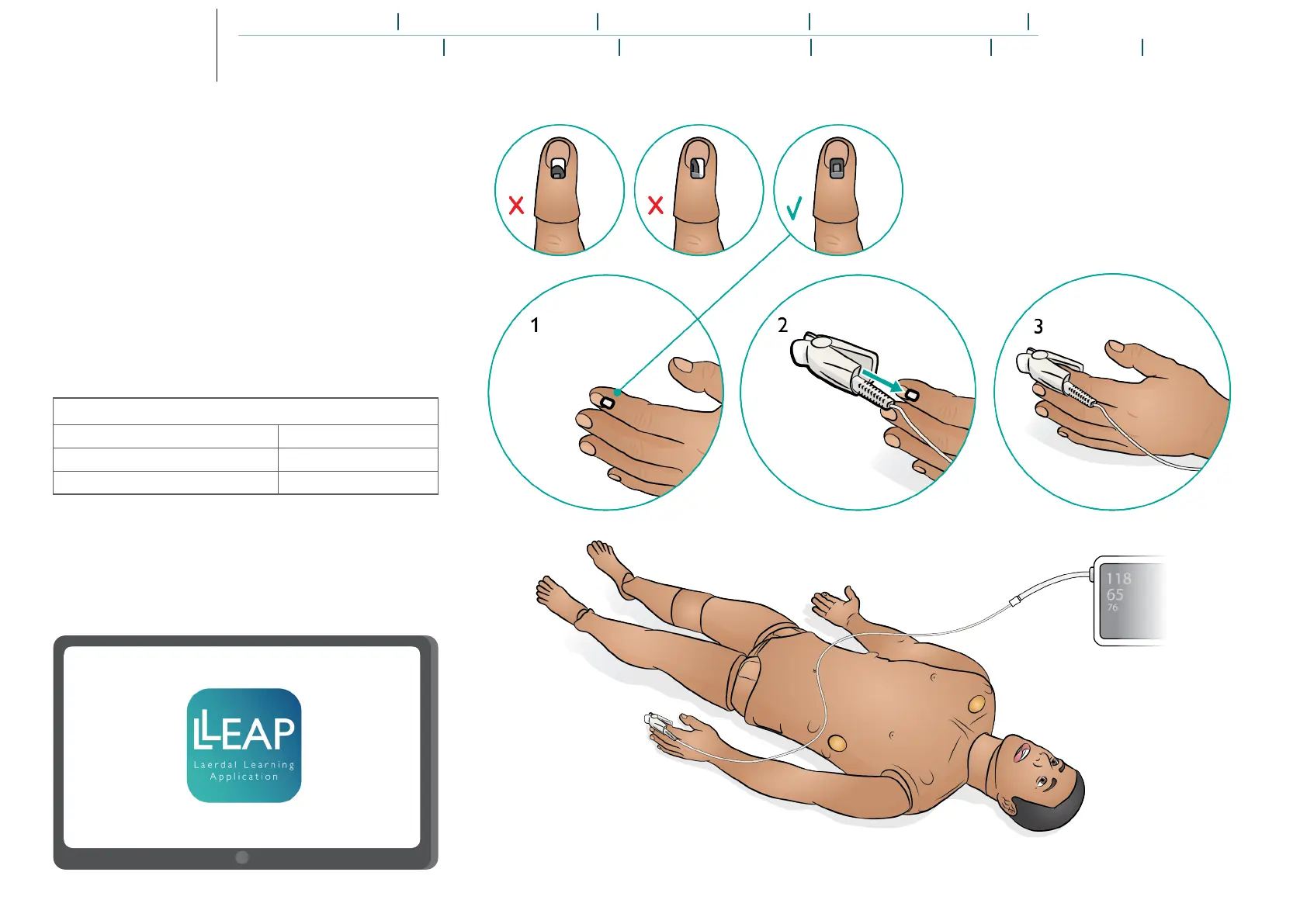

1. Ensure that the index finger skin is correctly aligned with
the (translucent) window area.
2. Clip the probe on to the finger ensuring that it is firmly
positioned over the SpO
2
window area.
3. If positioned incorrectly a reading may not be recorded on
the monitor.
SpO
2
System
SpO
2
values range (minimum) 70-100% SpO
2
SpO
2
values accuracy of ≤ 5% 70-89% SpO
2
SpO
2
values accuracy of ≤ 2% 90-100% SpO
2
