20-18071 Rev A
Replacing Chest Rise Bladders
Replace the chest rise bladders if they leak or are damaged.
Open the torso skin as described in Opening Torso.

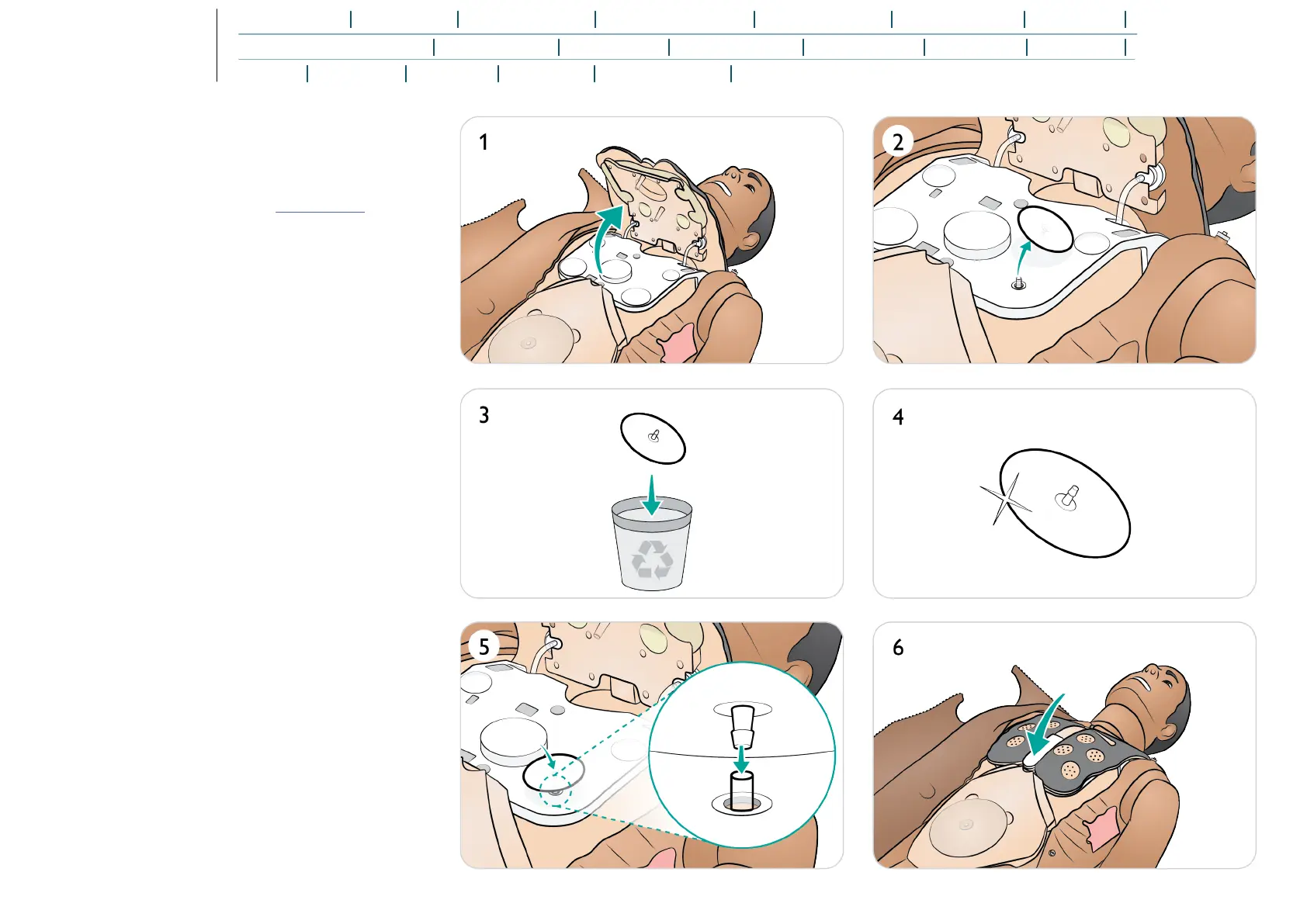

1. Lift the chest plate to expose the Chest Rise bladders
(one on each side).
2. Disconnect the tube(s).
3. Discard used bladder(s).
4. Select new bladder.
5. Insert bladder(s) and reconnect tube(s).
6. Replace chest plate.
