Lesson 8 L298N Motor Driver
About this lesson:
In this lesson, you will learn how to use a L298N Motor Driver module.
Component Introduction
The L298N actually contains two complete H-Bridge circuits, so it is capable of driving a pair of DC motors. This makes it ideal for robotic
projects, as most robots have either two or four powered wheels. The L298N can also be used to drive a single stepper motor, however we won’t
cover that configuration in this article.

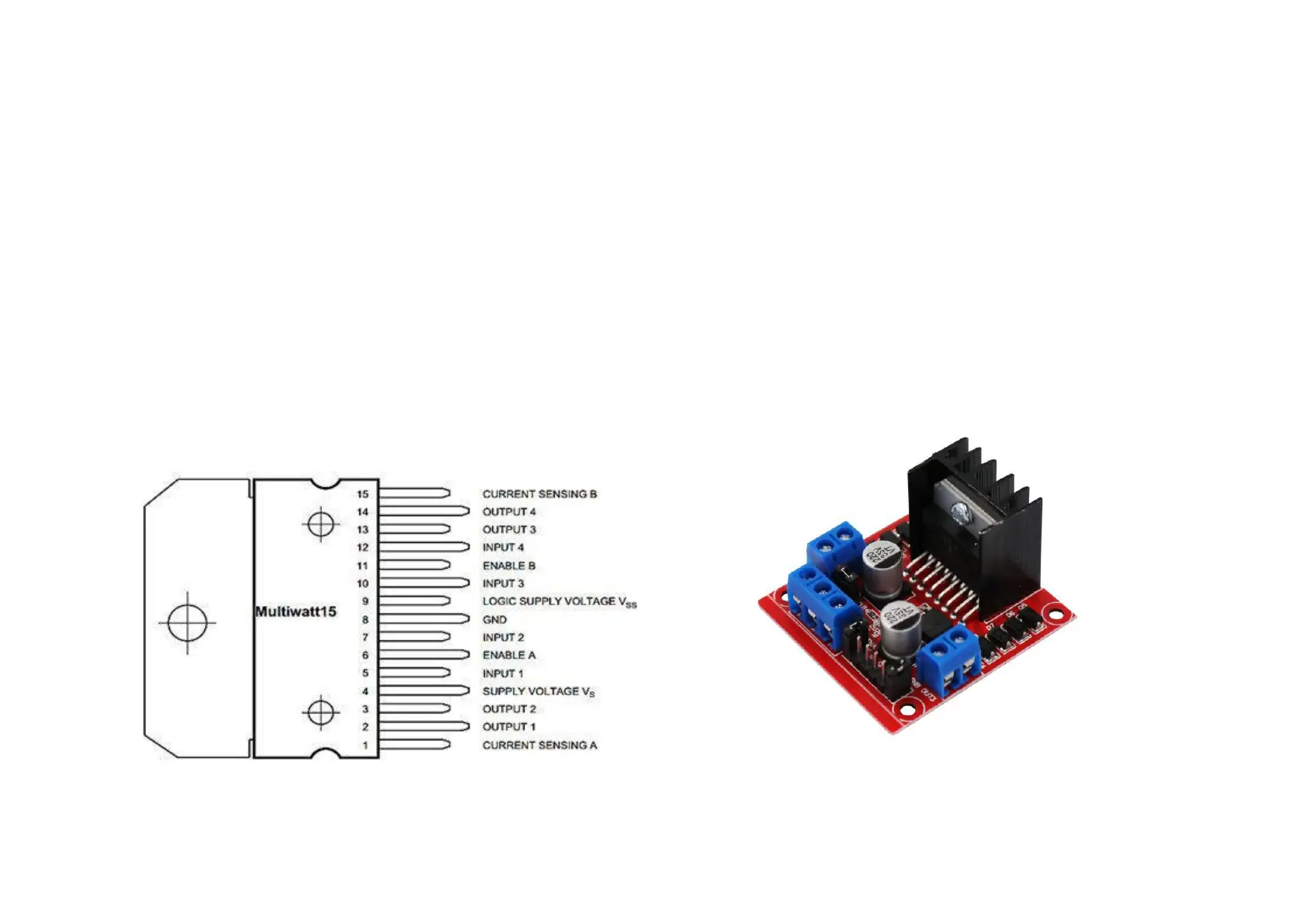

Here is a diagram of the pinouts of an L298N integrated circuit:
