Lagoon 52 - Steering System

19
4.1.2 . Fuel tanks: 2 x 500 liters DIESEL

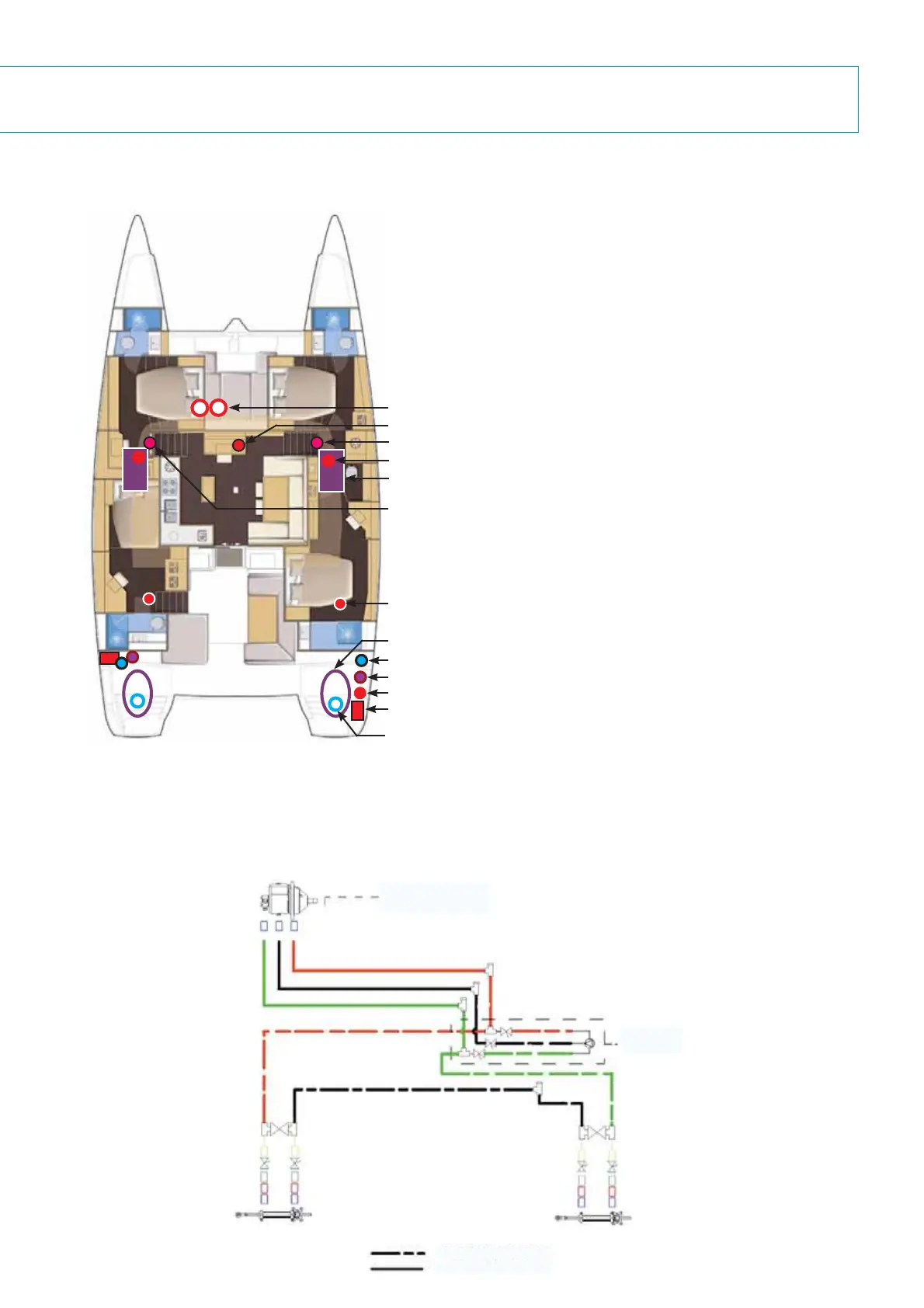

4.2 . Steering system
The steering system is hydraulic.
EQUIPMENT
PILOT PUMP
1 - Fuel tanks deck  llers
2 - Inside engine controls (optional extra)
3 - Engine fuel shut-o handle
4 - Fuel valve
5 - Fuel tank
6 - Engine / generator fuel shut-o handle
7 - Release pull handle of engine extinguisher
8 - Engine
9 - Sea water  lter
10 - Fuel  lter
11 - Engine cut outs + coupling (starboard)
12 - 12 V battery
13 - Engine water inlet valve
3
4
10
11
12
9
8
1
6
7
13
2
5
STEERING WHEEL PUMP
HYDRAULIC PIPES OF HULL
HYDRAULIC PIPES OF FLY
