Operator's Manual – Mega Stacker
© LAI GAMES

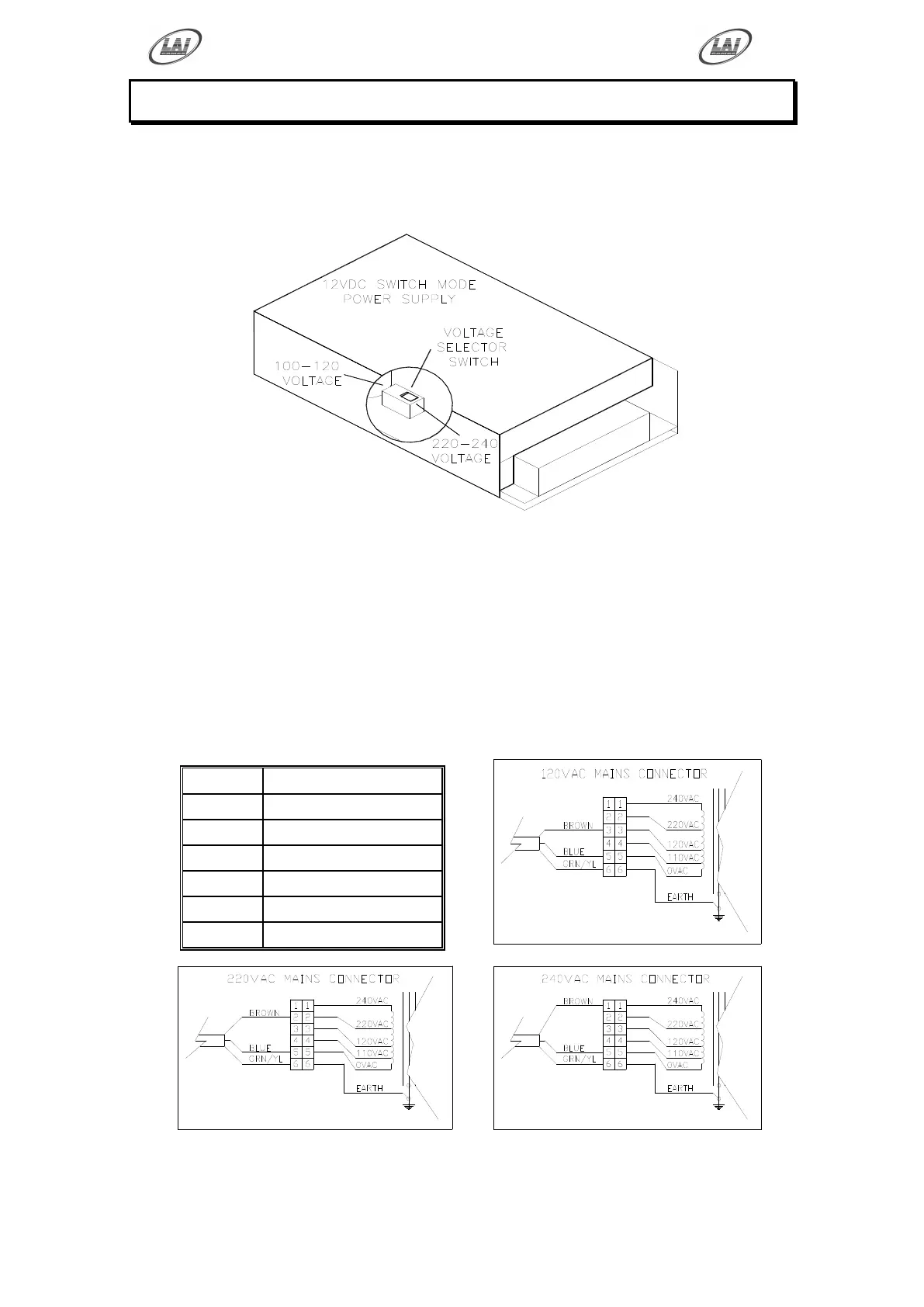

MAINS VOLTAGE ADJUSTMENT
POWER SUPPLY
The Switch Mode Power Supply has a switch to set the mains voltage range. It is
located at the rear of the game cabinet, and is accessed via the back door. Use a thin
blade screwdriver to move the selector switch to the desired mains voltage (See
Diagram Below)
TRANSFORMER CONNECTORS
Locate the machine transformer(s) from the back in the base of the cabinet. If
unsure of the location of the transformer(s), refer to Parts location diagram page of
this manual. Change the position of the „ACTIVE‟ or „HOT WIRE‟ input,
(marked brown on the diagram), to the position for the desired mains voltage. (See
Diagram Below)
6 WAY CONNECTOR PINOUT
