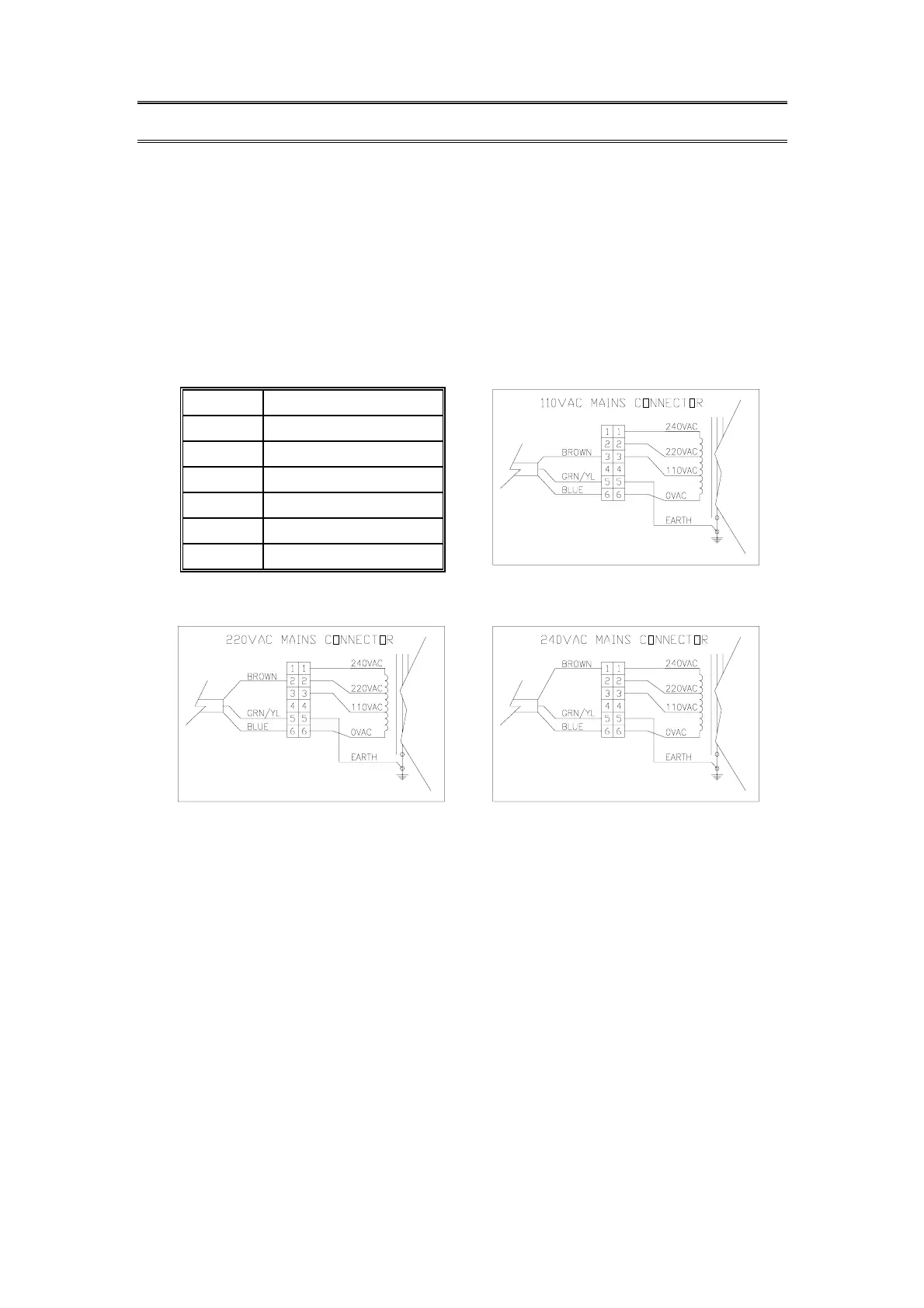

MAINS VOLTAGE ADJUSTMENTS

TRANSFORMER CONNECTOR

!"Locate the 2 machine transformers, both positioned to the right hand side of the

overhead display as viewed from the rear. If unsure of the location of either

transformer, refer to Parts location diagram on page 27 of this manual.

!"Change the position of the ‘ACTIVE’ or ‘HOT WIRE’ input, (marked brown on

the diagram), to the position for the desired mains voltage. (See Diagram Below)

6 WAY CONNECTOR

PIN FUNCTION

1 240VAC

2 220VAC

3 110VAC

4 N/C

5 EARTH

6 0VAV (NUTRAL)

LAI Games Slam 'n' Jam Overhead Display User Manual
