FITTING THE OVERHEAD DISPLAY
!"
The Overhead Display can be fitted in two positions, depending if it is fitted
above an “even” number of machines, or an odd number of machines. The
mounting brackets and the fitting of the brackets are the same for both an odd
and even bank of machines. The difference is in the position where they are

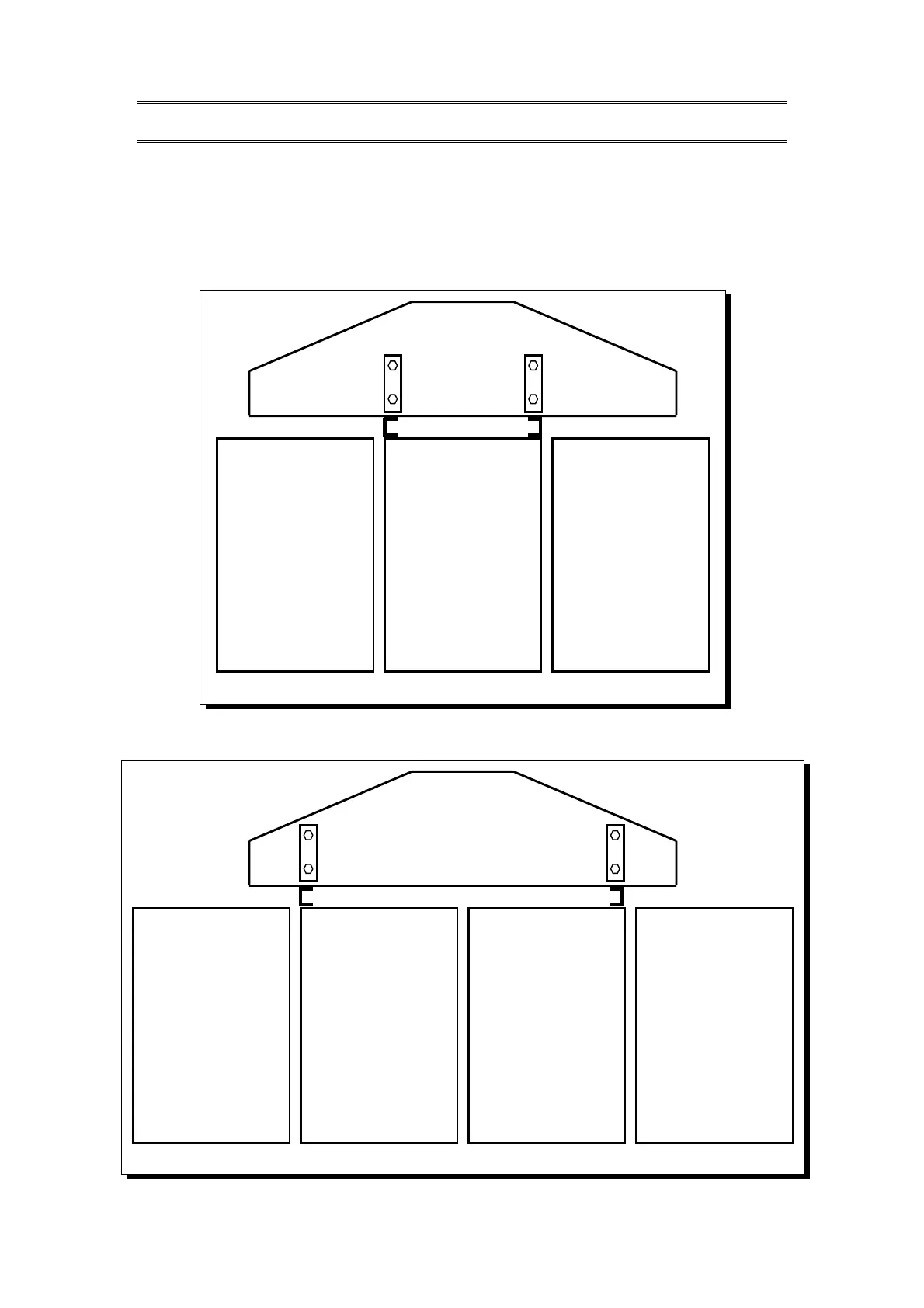

bolted onto the back of the display is different. Refer to diagrams below:
3, 5 OR 7 MACHINES
OVERHEAD
JACKPOT
2, 4, 6, OR 8 MACHINES
OVERHEAD
JACKPOT
