Operator's Manual – Stacker Giant – SKILL
© LAI GAMES
Page 36
ERRORS AND TROUBLESHOOTING
If the microprocessor detects any problems with the operation of the game, an Error
will be displayed on the 4-digit display and the machine will play a voice message.
“Please Call the Attendant”. Some error Messages will only be displayed when test
mode is entered. Errors are displayed on the displays as
E
r
r
X
, where ‘X’ is the
error number. There are eight error messages for Stacker Giant, listed as follows:

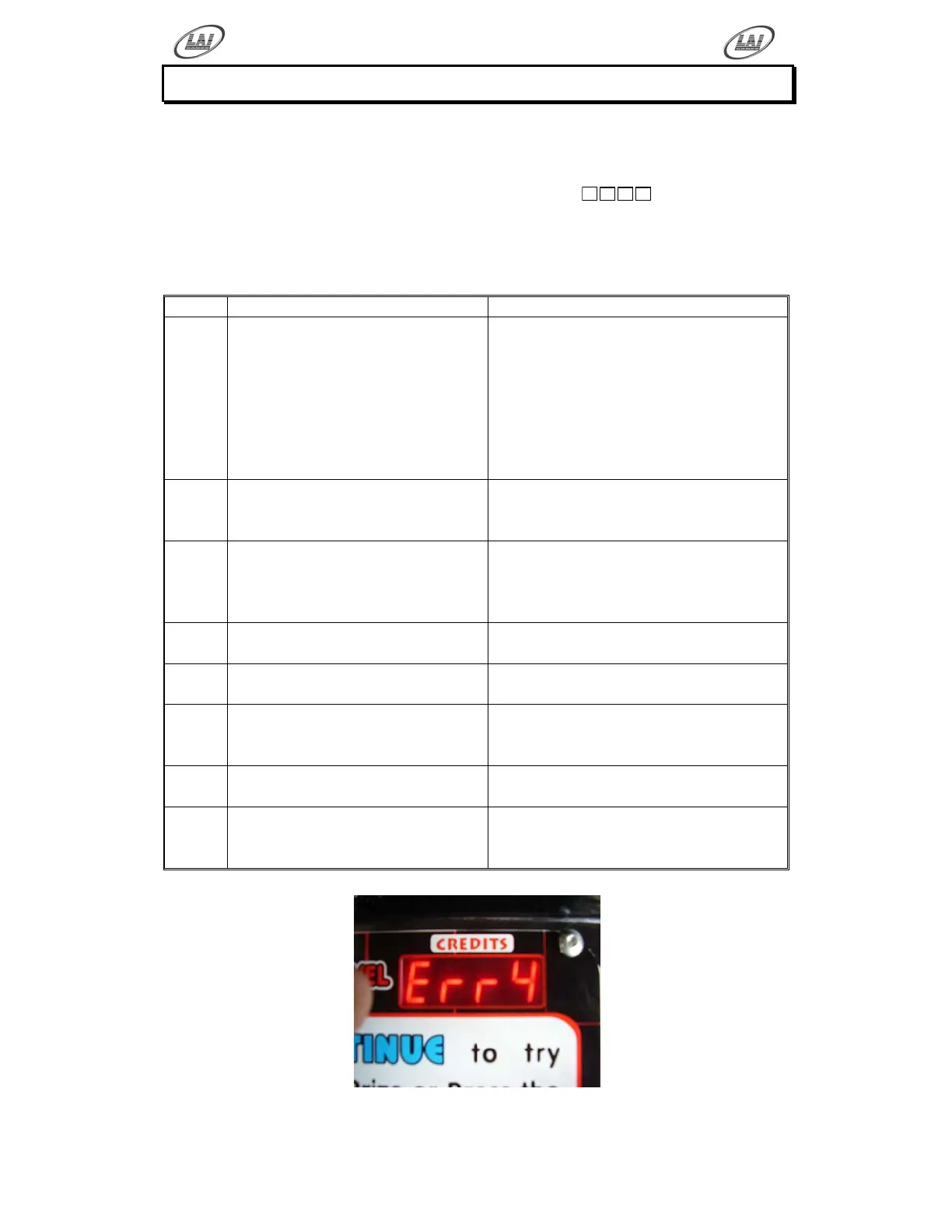

ERROR CODE QUICK REFERENCE TABLE
CODE ERROR DESCRIPTION SOLUTION
Err1
MERCY SYSTEM ERROR
Jammed tickets/capsules or no
ticket/capsule notch pulse for
longer than 3 seconds.
 If the ticket/capsule dispenser is
fitted, clear ticket/capsule dispenser
jam, replenish tickets/capsules. After
this, push Test button once to clear
error.
 If the ticket/capsule dispenser is not
fitted, make sure P11 and P12 are set
to 0”.
Err2
START/STOP BUTTON
JAMMED, active for longer then
30 seconds
Check Button function using switch test
Err3
EEPROM ERROR
Problem with on-board
EEPROM
The main MCU is getting errors reading
the EEPROM (24C16 IC on MCU).
Send MCU PCB to the closest LAI
Games distributor for repair.
Err4
MAJOR PRIZE DEPLOYMENT
ERROR
Refill Major Prize Arms or test sensor
using switch test.
Err5
PRIZE SENSOR BLOCKED or
PRIZE SENSOR FAULTY
Clear Blockage from between prize
sensors or test sensor using switch test.
Err6
All PRIZE ARMS STATUS are
DISABLED.
Check that at lest one Major Prize Arm
(P14 to P23) has been set active. Prize
Arms ON.
Err7
MINOR PRIZE DEPLOYMENT
ERROR
Refill Capsule Dispenser, check for
capsule jam or do run test.
Err8 PRIZE BOX GATE ERROR
Make sure the prize box gates are
closed. Check that there is no jam in the
prize box gates.
Error displayed on Machine
