Operator's Manual – Stacker Giant – SKILL
©
LAI GAMES
Page 48
SERVICE CONTROLS II

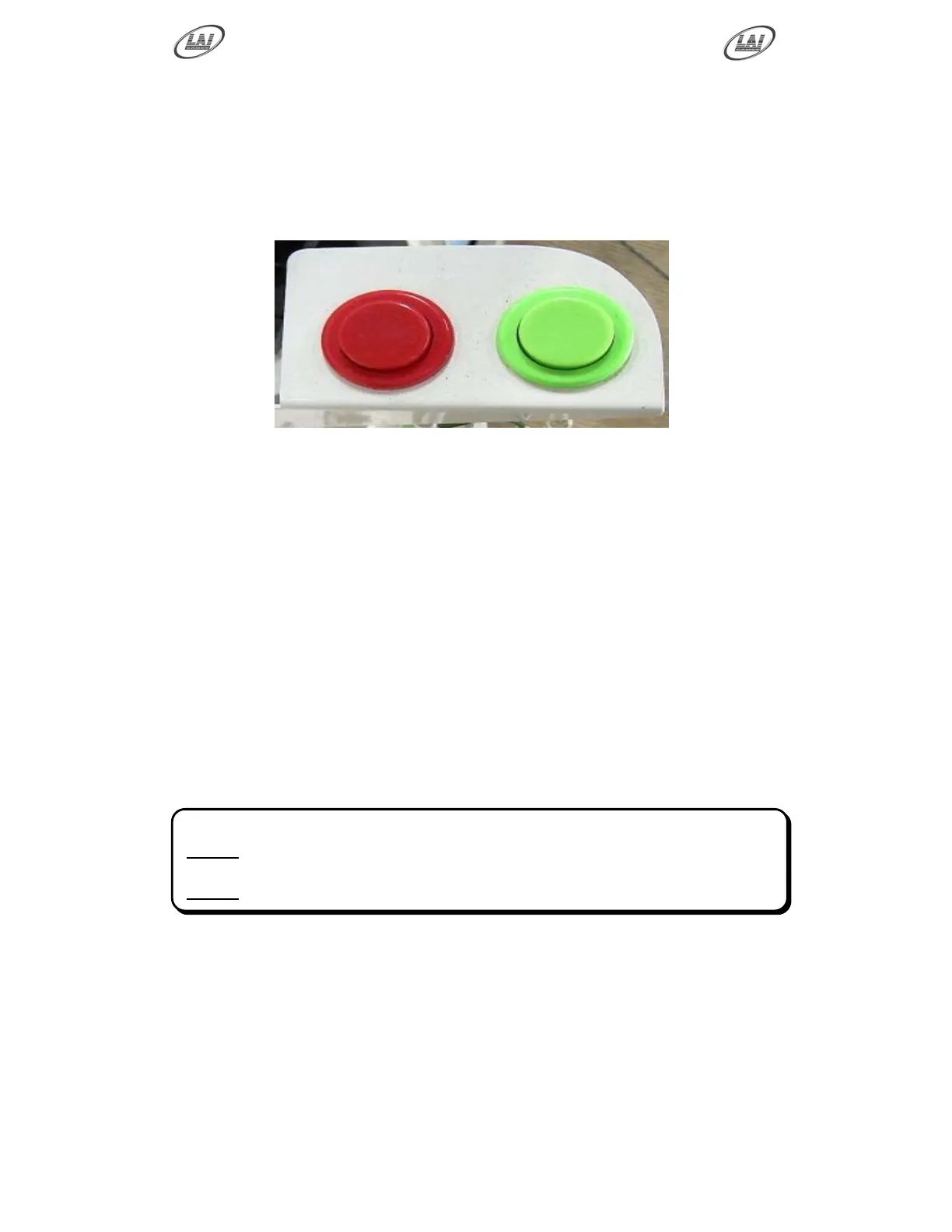

Located at the upper part of the coin door. Access is through the coin door.
SERVICE BUTTON: Used to input credits to the game without activating the
coin counter, and to perform test procedures in combination with the test button.
TEST BUTTON: Used to perform the test mode, in combination
with the Service button.
POWER CORD
The power cord is a standard IEC power cord (as used on computers) that is
plugged in to the power inlet socket at the rear of the machine. The power cord
can be removed for transport.
POWER INLET
The power inlet is located at the rear of the machine on the Left-hand side as
viewed from the rear. It is a standard IEC inlet socket.
MAINS SWITCH
The mains switch is located on the power inlet assembly along with the mains
fuse, and IEC inlet socket.
FUSES
For locations of all fuses refer to Fuses and Fuse location, page 42 of this manual.
7-SEG DISPLAY
There is a 4-digit display located on the control panel. Access is through the back
of the control panel assy.
PCB’s
For location of all game PCB’s, refer to the Parts Location diagram page 44 of this
manual.
* WARNING! *
Always
turn OFF Mains power and unplugged the game, before replacing any
fuses
Always
use the correct rated fuse. Refer to page 34 for fuse information.
Test
Service
