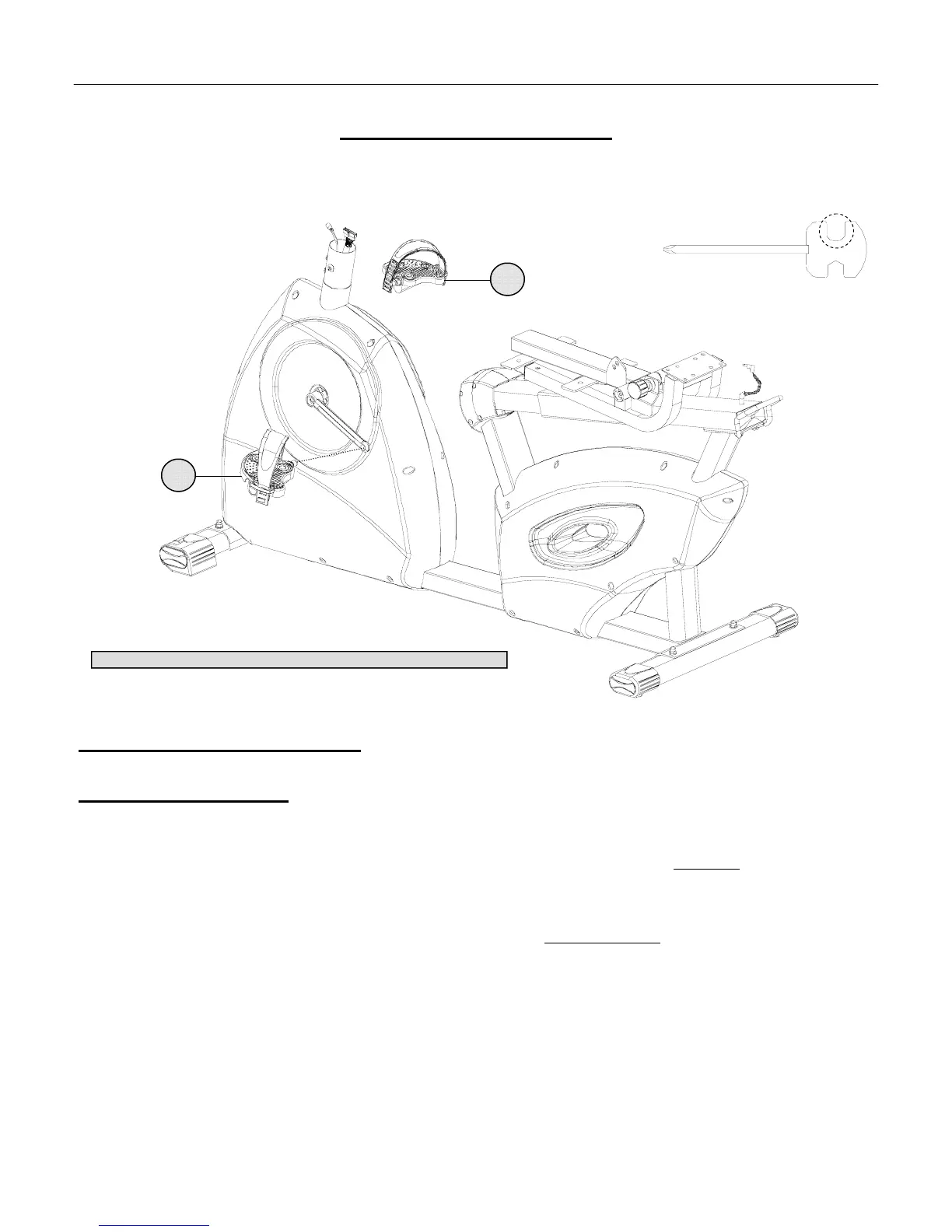

ASSEMBLY STAGE #2
Attach Pedals to the Base Assembly
Assembly Hardware Required: (None Required)
Assembly Description:
A) Assemble the Left Pedal (#4) to the Left Crank Arm on the Base Assembly (#1). Thread the pedal onto the crank
arm (counterclockwise) and securely tighten in place using the pedal wrench. Note: A clockwise
rotation will tighten
the pedal to the crank arm and a counterclockwise rotation will loosen the pedal. (*See Assembly Note)
B) Assemble the Right Pedal (#5) to the Right Crank Arm on the Base Assembly (#1). Thread the pedal on the crank
arm and securely tighten in place using the pedal wrench. Note: A counterclockwise
rotation will tighten the pedal to
the crank arm and a clockwise rotation will loosen the pedal. (*See Assembly Note)
C) Attach the Pedal Straps (included with pedals) to each of the pedals. The straps are labeled (R) or (L) to correspond
with the right and left pedal.
*Important Assembly Note: The right and left pedals are appropriately marked (R) and (L). The threading orientation
on the left pedal is reversed from the threading orientation on the right pedal. To avoid stripping of the threads on the
pedals or crank arms make sure to follow the noted assembly orientation.
♦ Assembly Stage #2 completed
ASSEMBLY INSTRUCTION PAGE 7
4
5
L
R
USE TOOL
Use This End to Tighten the Pedals
Note: Follow Assembly Instructions Carefully to Avoid Stripping Pedal Threads
