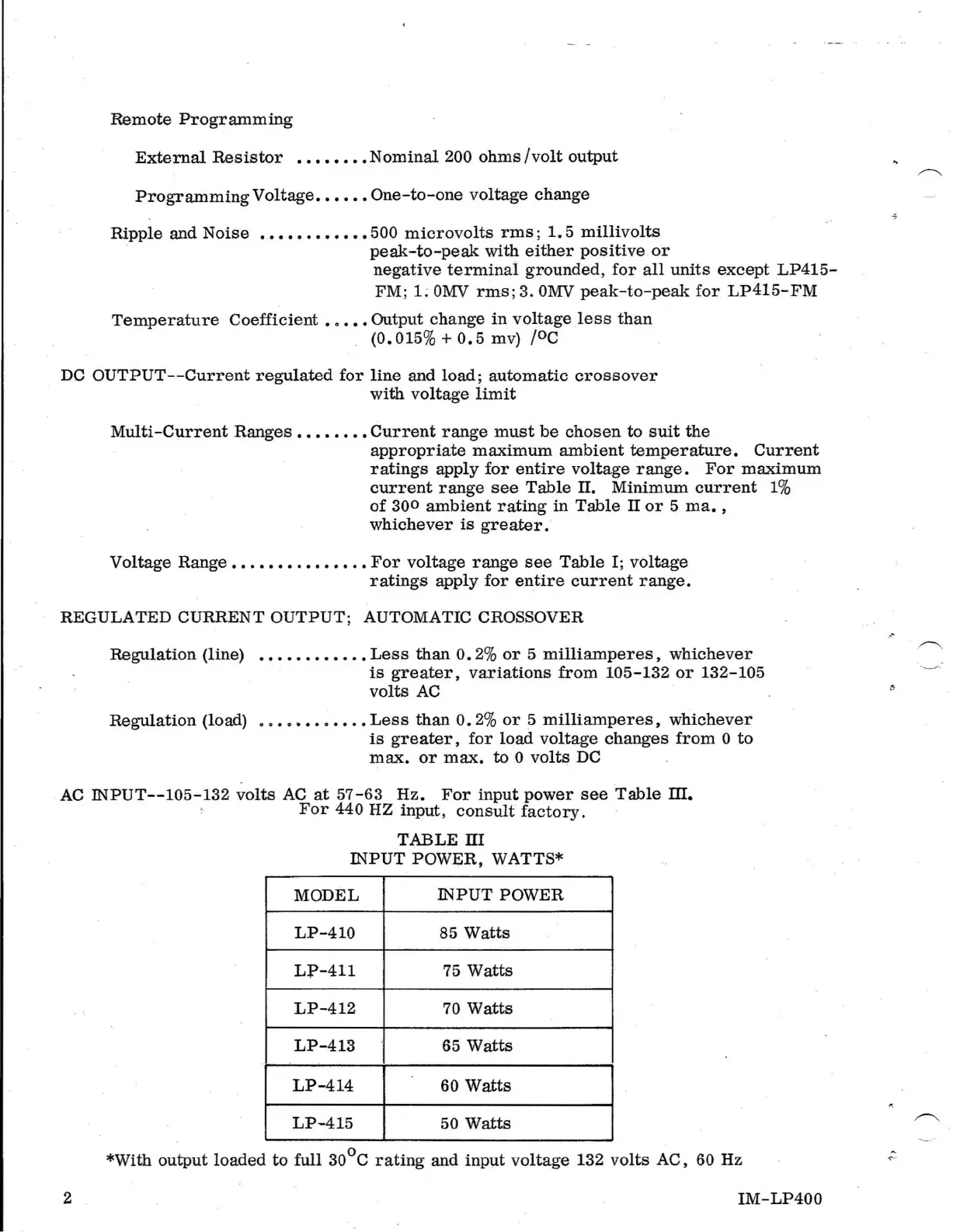

Remote Programming
External Resistor •••••••• Nominal 200 ohms /volt output
Programming Voltage •••••• One-to-one voltage change
Ripple and Noise •••••.•••••• 500 microvolts rms; 1. 5 millivolts
peak-to-peak with either positive or
negative terminal grounded , for all units except LP415-
FM; L OMV rms; 3. OMV peak-to-peak for LP415-FM
Temperature Coefficient •..•. Output change in voltage less than
(0. 015% + 0. 5 mv) /OC
DC OUTPUT--Current regulated for line and load; automatic crossover
with voltage limit
Multi -Current Ranges •••••.•• Current range must be chosen to suit the
appropriate maximum ambient temperature. Current
ratings apply for entire voltage range. For maximum
current range see Table II. Minimum current 1%
of 300 ambient rating in Table II or 5 rna. ,
whichever is greater.
Voltage Range •...•••.•••••.• For voltage range see Table I; voltage
ratings apply for entire current range.
REGULATED CURRENT OUTPUT; AUTOMATIC CROSSOVER
Regulation (line) ••••.••••••• Less than 0. 2% or 5 milliamperes, whichever
is greater, variations from 105-132 or 132-105
volts AC
Regulation (load) •.••••.••••• Less than 0. 2% or 5 milliamperes, whichever
is greater, for load voltage changes from 0 to
max. or max. to 0 volts DC
AC INPUT--105-132 volts AC at 57-63 Hz. For input power see Table m.
, For 440 HZ input, consult factory.
TABLE III
INPUT POWER, WATTS*
MODEL
INPUT POWER
LP-410 85 Watts
L:P-411 75 Watts
LP-412
70 Watts
LP-413 65 Watts
LP-414
60 Watts
LP-415
50 Watts
*With output loaded to full 30°C rating and input voltage 132 volts AC, 60 Hz
