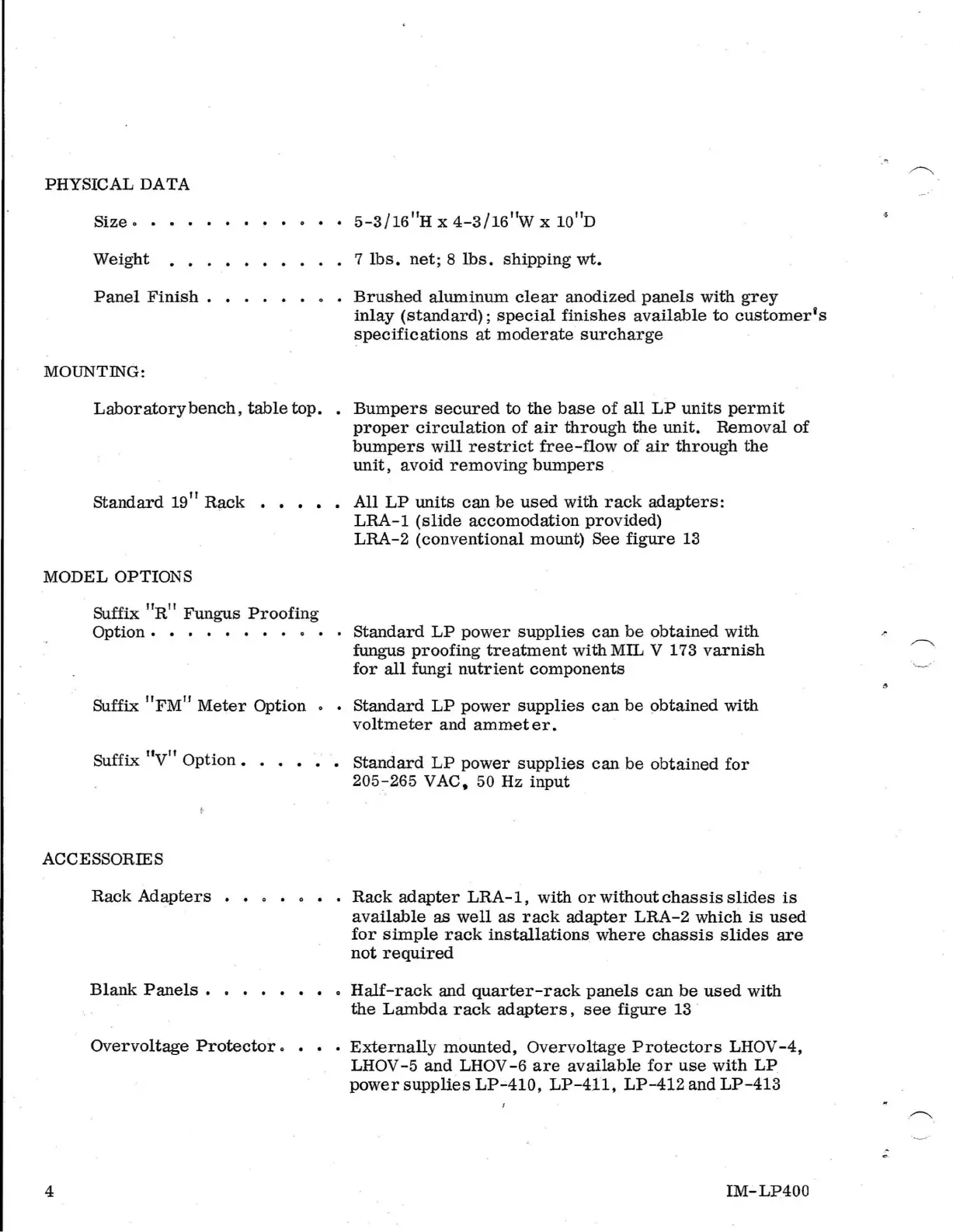

PHYSICAL DATA
Size o •
Weight
Panel Finish • •
5-3/16
11
H X 4-3/16
11
W X 10
11
D
• • •
7 lbs. net; 8 lbs. shipping wt.
•• o • Brushed aluminum clear anodized panels with grey
inlay (standard); special finishes available to customer's
specifications at moderate surcharge
MOUNTING:
Laboratory bench, table top •. Bumpers secured to the base of all LP units permit
proper circulation of air through the unit. Removal of
bumpers will restrict free-flow of air through the
unit, avoid removing bumpers
Standard 19
1 1
R:wk
All LP units can be used with rack adapters:
LRA-1 (slide accomodation provided)
LRA-2 (conventional mount) See figure 13
MODEL OPTIONS
Suffix "R" Fungus Proofing
Option . • . . . • • . o • • Standard LP power supplies can be obtained with
Suffix
11
FM
11
Meter Option
Suffix "v" Option •
fungus proofing treatment with MIL V 173 varnish
for all fungi nutrient components
Standard LP power supplies can be obtained with
voltmeter and ammeter.
Standard LP power supplies can be obtained for
205:-265 VAC, 50 Hz input
ACCESSORIES
4
Rack Adapters • • o • o • • Rack adapter LRA-1, with or without chassis slides is
available as well as rack adapter LRA-2 which is used
for simple rack installations where chassis slides are
not required
Blank Panels • • . • • • • o Half-rack and quarter-rack panels can be used with
the Lambda rack adapters, see figure 13 ·
Overvoltage Protector o • • • Externally mounted, Overvoltage Protectors LHOV -4,
LHOV -5 and LHOV -6 are available for use with LP
power supplies LP~410, LP-411, LP-412 and LP-413
IM-LP400
