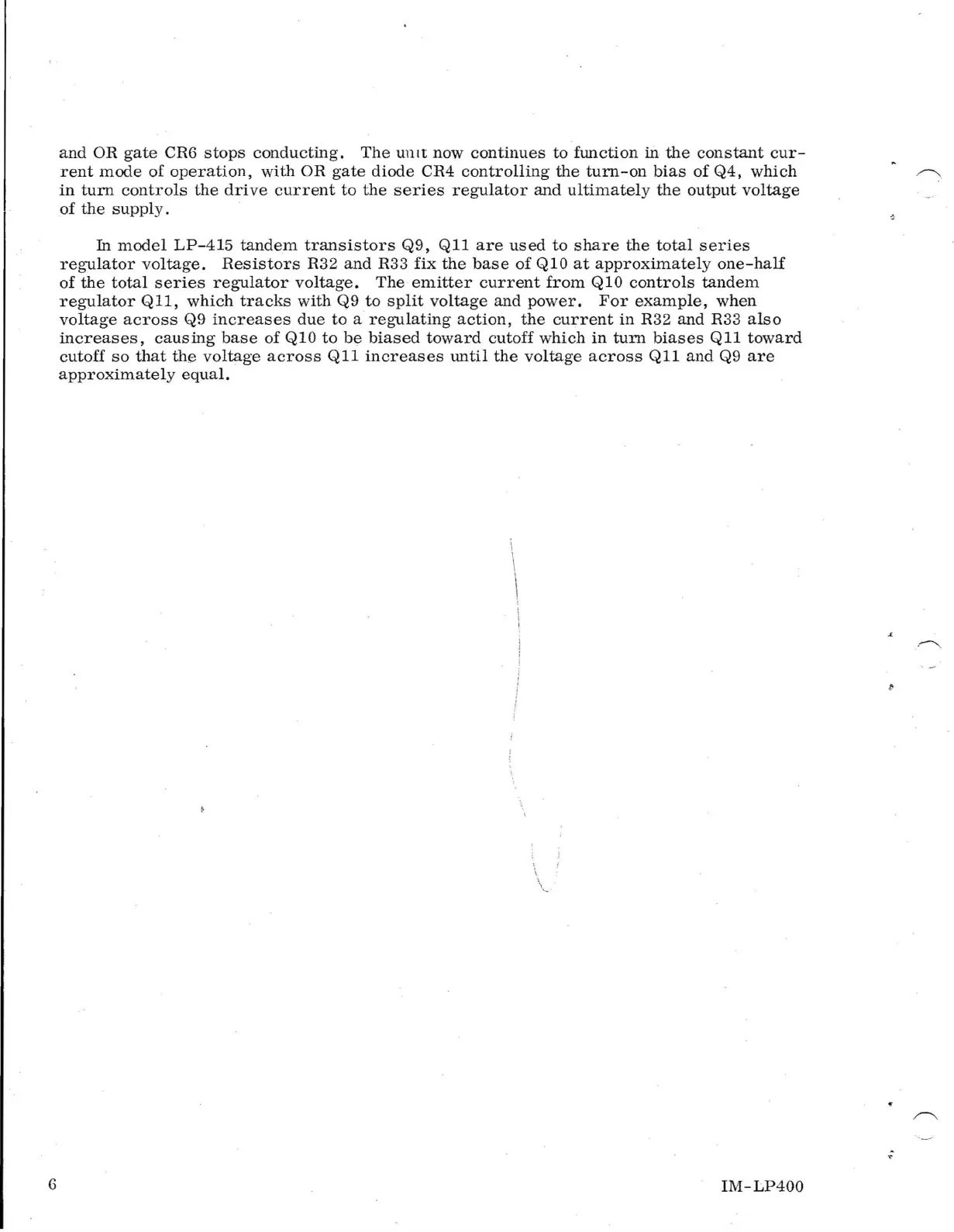

6
and
OR
gate
CR6
stops
conducting.
The
untt
now
continues
to
function
ill
the
constant
cur-
rent
mode
of
operation,
with
OR
gate
diode
CR4
controlling
the
turn-on
bias
of
Q4,
which
in
turn
controls
the
drive
current
to
the
series
regulator
and
ultimately
the
output
voltage
of
the
supply.
In
model
LP-415
tandem
transistors
Q9,
Qll
are
used
to
share
the
total
series
regulator
voltage.
Resistors
R32
and
R33
fix
the
base
of
QlO
at
approximately
one-half
of
the
total
series
regulator
voltage.
The
emitter
current
from
QlO
controls
tandem
regulator
Qll,
which
tracks
with
Q9
to
split
voltage
and
power.
For
example,
when
voltage
across
Q9
increases
due
to
a
regulating
action,
the
current
in
R32 and R33
also
increases,
causing
base
of QlO
to
be
biased
toward
cutoff
which
in
turn
biases
Qll
toward
cutoff
so
that
the
voltage
across
Qll
increases
until
the
voltage
across
Qll
and
Q9
are
approximately
equal.
