Vega Customer Applications Manual Section 10 - Combining Modules
Rev. A3: October 2003 Page 33 of 48

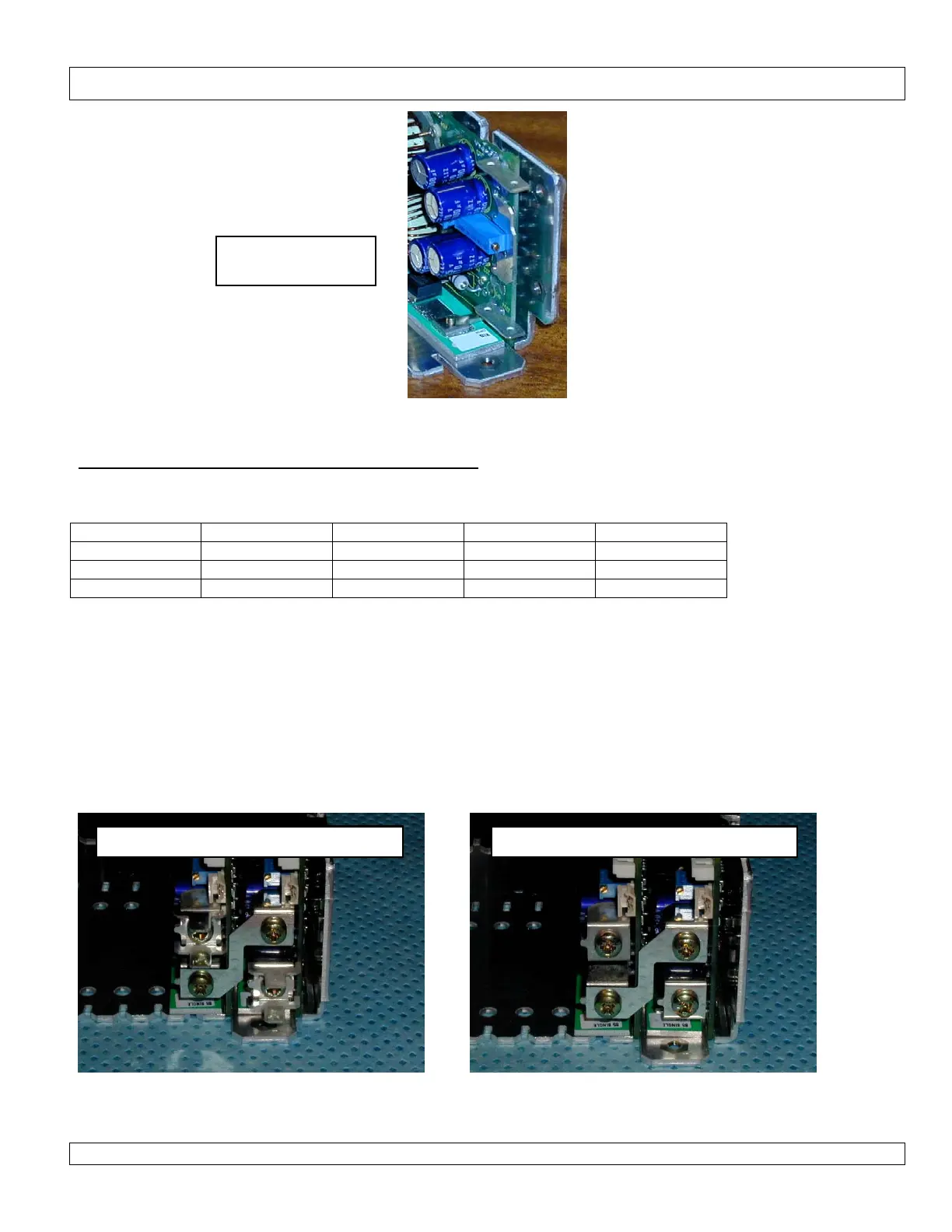

Example 2 : 1 slot C3 module with voltages combined.
2 x C3 modules can be combined to provide 20V nominal at 18Amps.
Vmin Vnom Vmax Imax
C3 module 1 9.1 10 16.2 18
C3 module 2 9.1 10 16.2 18
Combination 18.2 20 32.4 18
C3 is a single module and the combination will have a bussbar fitted at manufacture to combine the voltages (see
pictures).
The module description would become 20CC3 ("CC" indicates that two modules are configured to sum the output
voltages).
The suffix "F" for faston or "S" for screw can be added eg 20CC3F or 20CC3S.
With Screw TerminationsWith Faston Terminations
Twin module with
fastons
