Vega Customer Applications Manual Section 10 - Combining Modules
Rev. A3: October 2003 Page 35 of 48
Tables of Common module combinations.
This table shows the most commonly used series combinations that are available.
Module
name
How done Vmin Vmax Imax Slots Power @
Vmin
Power @
Vmax
EE2 E2 + E2 7.6 16 55 4 418 880
CC3 C3 + C3 18.2 32.4 18 2 327.6 583.2
HH5/3 Both halves of H5/3 25.3 47.2 5 1 126.5 236
BB4 B4 + B4 32.6 43 10 2 326 430
DD4 D4 + D4 28 43 18 3 504 774
HH5/4 Both halves of H5/4 32.5 56 4.5 1 146.2 252
C5B4 C5 + B4 43 48 10 2 430 480
CC5 C5 + C5 48.1 62 10 2 481 620
DD5 D5 + D5 42 56 15 3 630 840

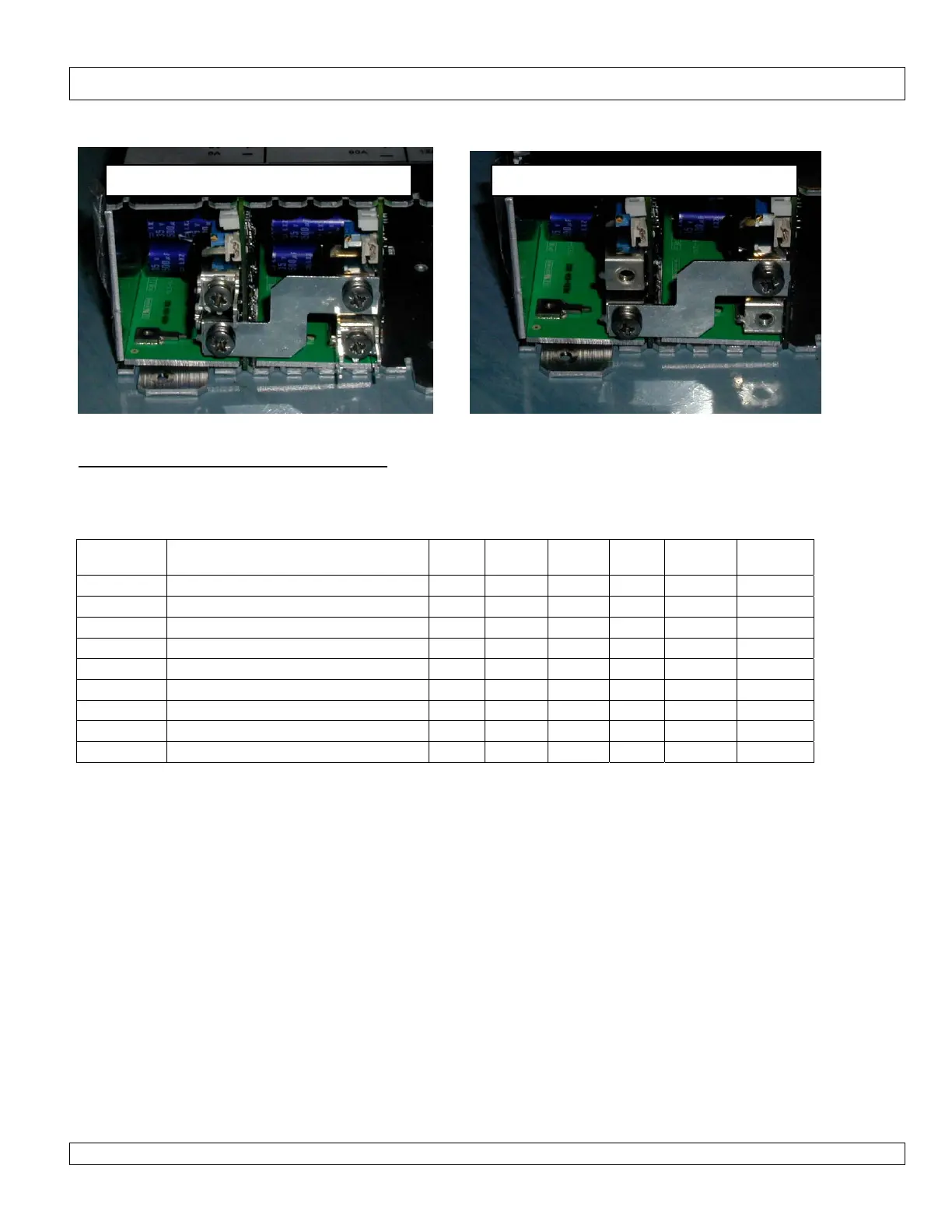

With Faston Terminations With Screw Terminations
