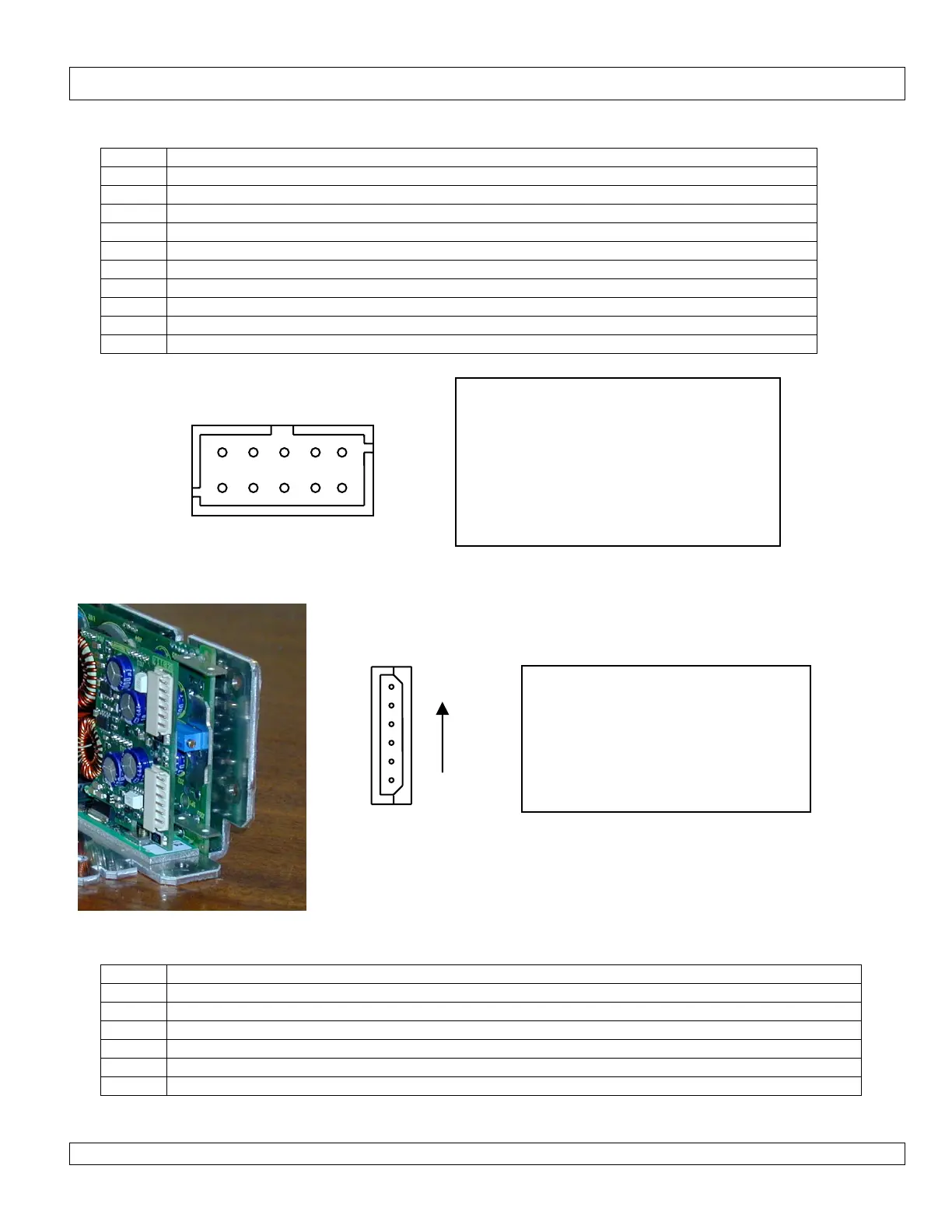

Each of the two option boards have the following pin out.
Pin No Function
1 Unused.
2 Module Good E
3 +Ve Sense. *1
4 Module Good C
5 Starpoint Parallel.
6 Unused.
7 Starpoint Parallel.
8 Module Inhibit -Ve
9 -Ve Sense. *1
10 Module Inhibit +Ve
The "N" option is also available for a twin slot module :
The pinouts are as follows for of the two molex connectors on the twin slot module:
Pin No Function
1 Module inhibit -VE
2 Module inhibit +VE
3 Module good E
4 Module good C
5 -VE sense.
6 +VE sense.
PIN 6
PIN 1
Mating connector information:
ote: housing and pins supplied with each
power supply.
Housing: Molex 51110-1060
Crimp pin: Molex 50394-8051
Hand Crimp Tool: 69008-0959 (Europe or
Japan) Or 11-01-0204(USA)
Mating connector information:
ote: housing and pins supplied with
each power supply.
Housing: Molex 50-37-5063
Crimp pin: Molex 08-70-1039
Hand Crimp Tool: 11-26-0167 (Japan)
Or 11-01-0194(Europe or USA)
9 7 5 3 1
10 8 6 4 2
