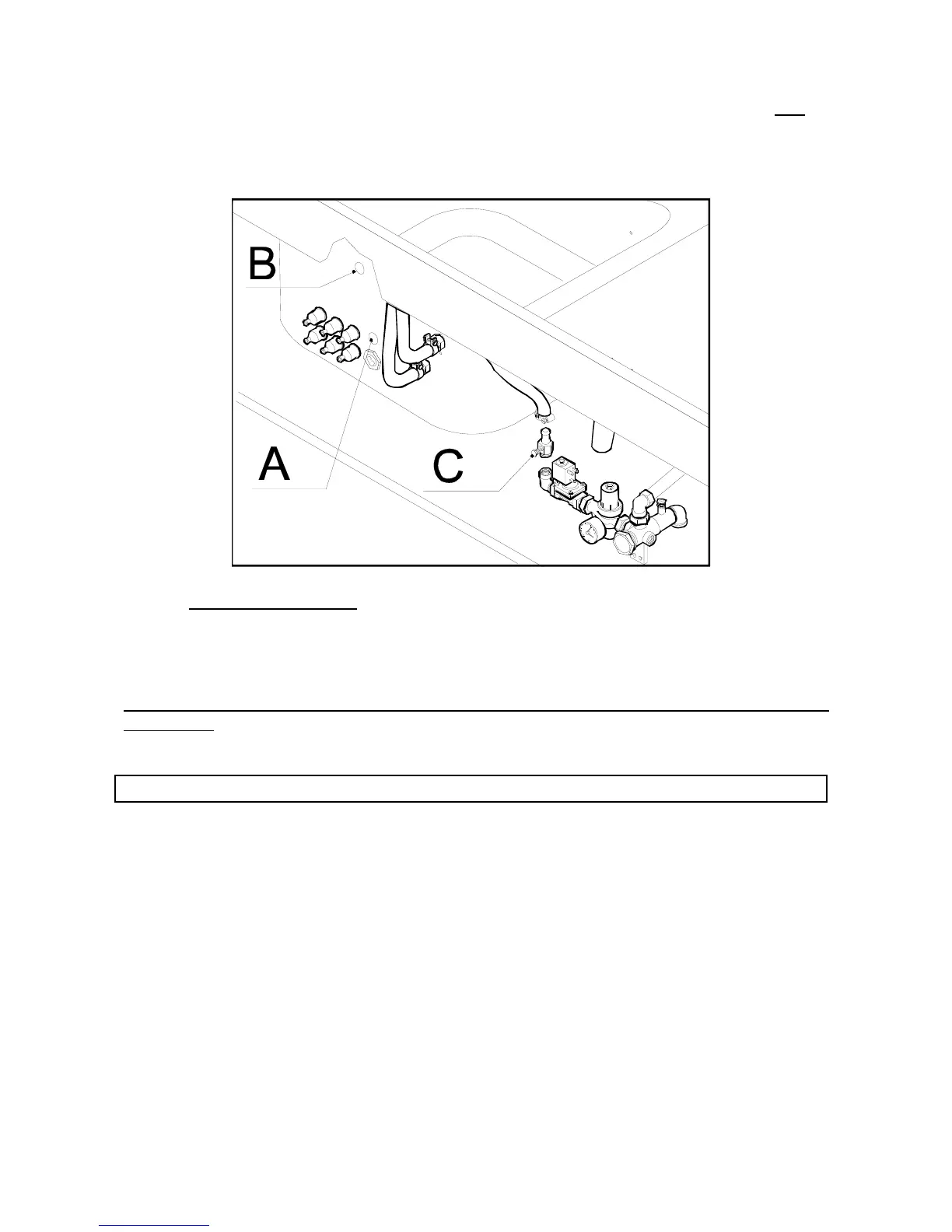

As regards the introduction of the liquid rinse aid product, use the passage “C” ,
placed near the water inlet group.
This coupling will allow an appropriate introduction of the liquid rinse aid product.
In order to do this use a fitting with non-return valve.
02 0019 6
02 0145 5
For the electrical connection of these dosing pumps join the auxiliary contacts of the
contactors MT5 (detergent pump) and MT4 (rinse aid pump) into the lower electric box
(standard M115 model) or the blue terminals into the upper electric box (M115 with
drying tunnel), marked by special tags.
Note: In order to let cables pass, please use the labelled wire clamp behind the electrical
control box.
DISPOSAL
At the end of its life, the machine shall be disposed according to the local laws in force by
specialized and acknowledged companies in this field. Its components shall be
distinguished as follows:
- metallic components: body, plans, frames, filters;
- electric components: motors, remote control switch, microswitches, wiring;
- plastic components: baskets, connections;
- rubber components: hoses, sleeves.
