WATER DRAINING
Reachable from the machine front side
after opening the front panel (to do this
turn the two front screws out);
Arrange a discharge at floor level provided
with siphon and connect to the floor drain by
means of a hose provided with an adequate
inclination. Make sure the drain hose is not
choked in any way.
Make sure the drain hose is resistant to a
temperature of 70 °C.
Carefully comply with any national or regional
regulations in force.
STEAM FEEDING *
As far as steam feeding is concerned,
connect to the machine fittings indicated

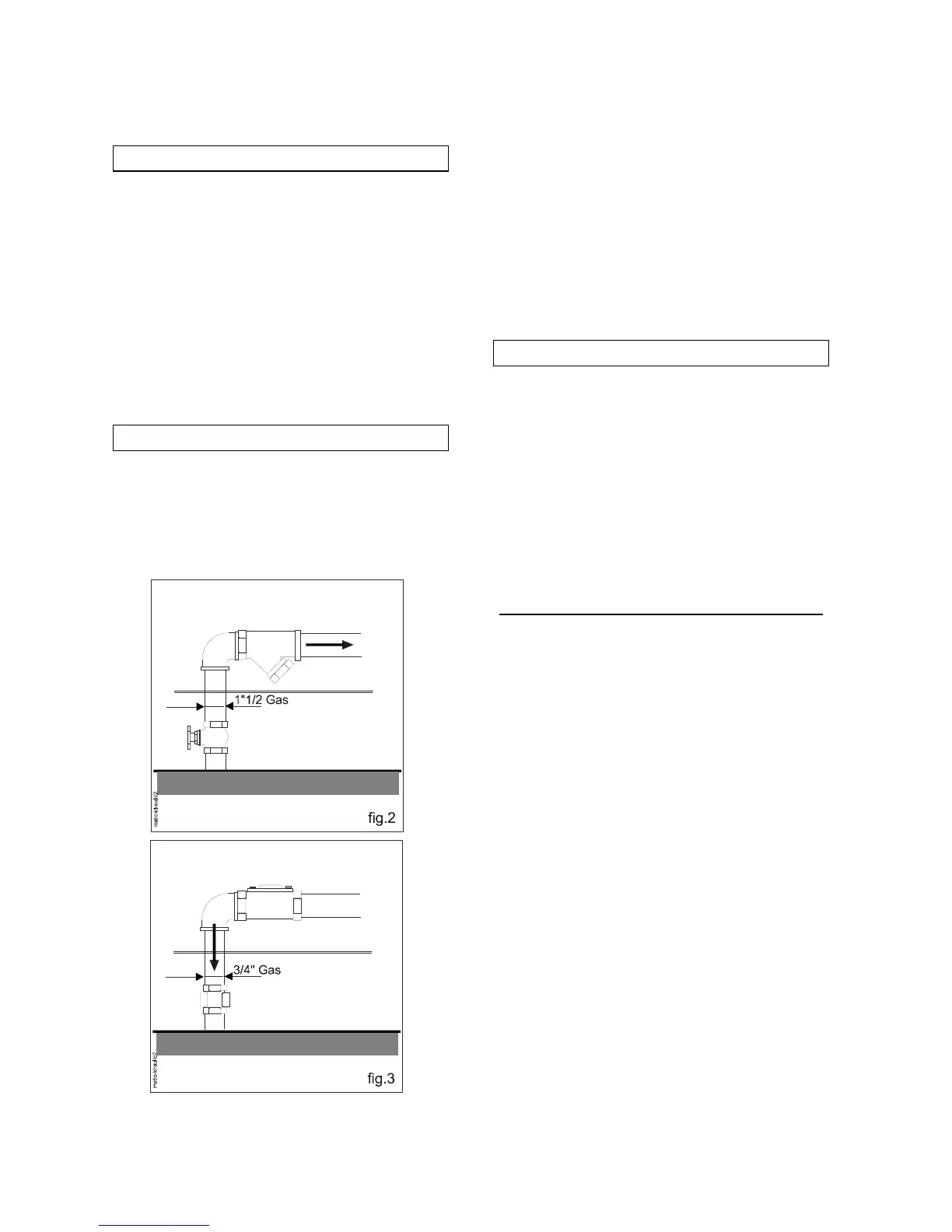

in the installation drawings. In order to
make the equipment independent from
the general steam distribution network, it
is necessary to use gate and gas on/off
valves (see draw 2 and 3).
This type of feeding should be supplied at
a pressure ranging from 1 bar (100°C) to
2 bar (121°C).
The steam used should be absolutely
saturated and dry.
STEAM EXHAUST *
The condensed steam exhaust shall have
an appropriate slope toward the recovery
installation or a blow-by pump, in order to
guarantee an autonomous scavenging of
the condensed steam.
N.B.: for possible maintenance operations,
it is advisable to arrange a gate valve
parallel with the discharge so that it is
possible to deviate condensation towards a
runoff pit.
* for steam machines only
