25

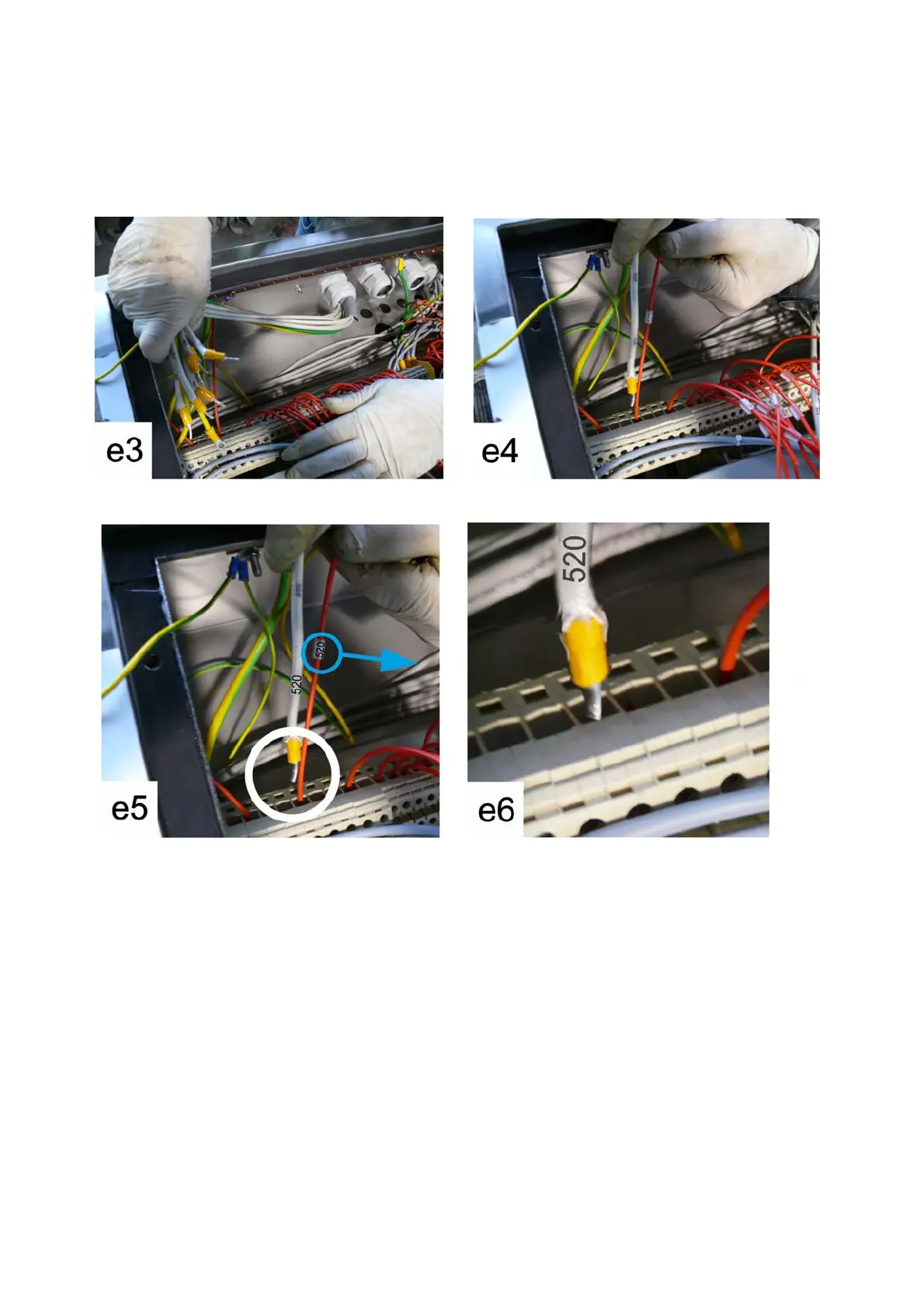

Connect each single cable to the terminal, referring to the numbers indicated on the
cables. Example: remove the red cable 520 on the terminal (e4) and replace them with
the corresponding cable 520 of the bundle (e5-e6).
