195
7
Operating Control and Displays
History
Accessing the ’Histories’ submenu

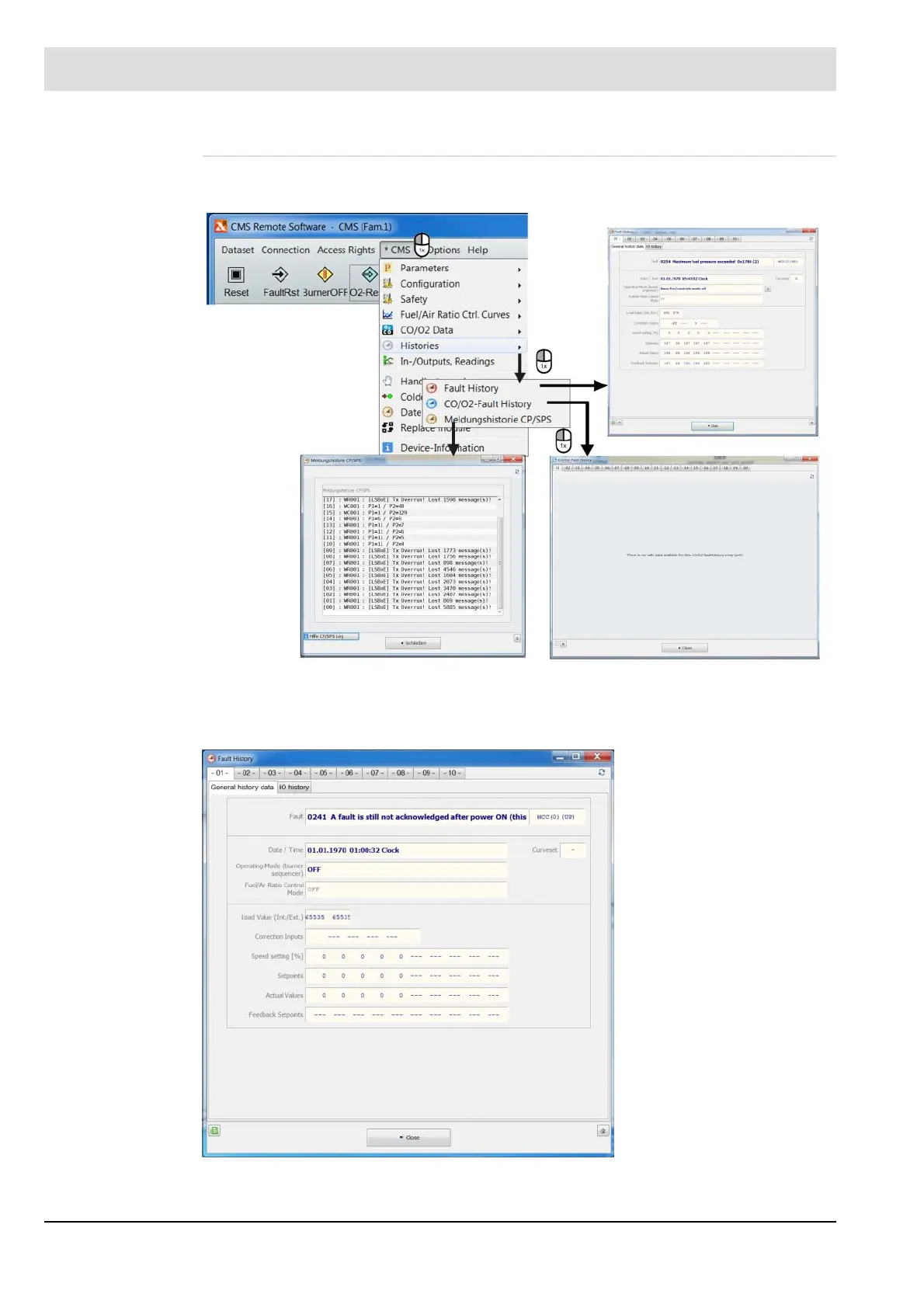

Fig. 7-75 CMS submenu Histories
The fault history shows the last 10 faults.
The following information is output for the individual faults:
Fig. 7-76 Show fault history
•
Fault number
•
Fault text
•
Affected module
•
Curve set
•
Date and time
•
Operating conditions
•
Firing rates
•
Setpoints
•
Actual
values
195
197
