72
4 CMS Components

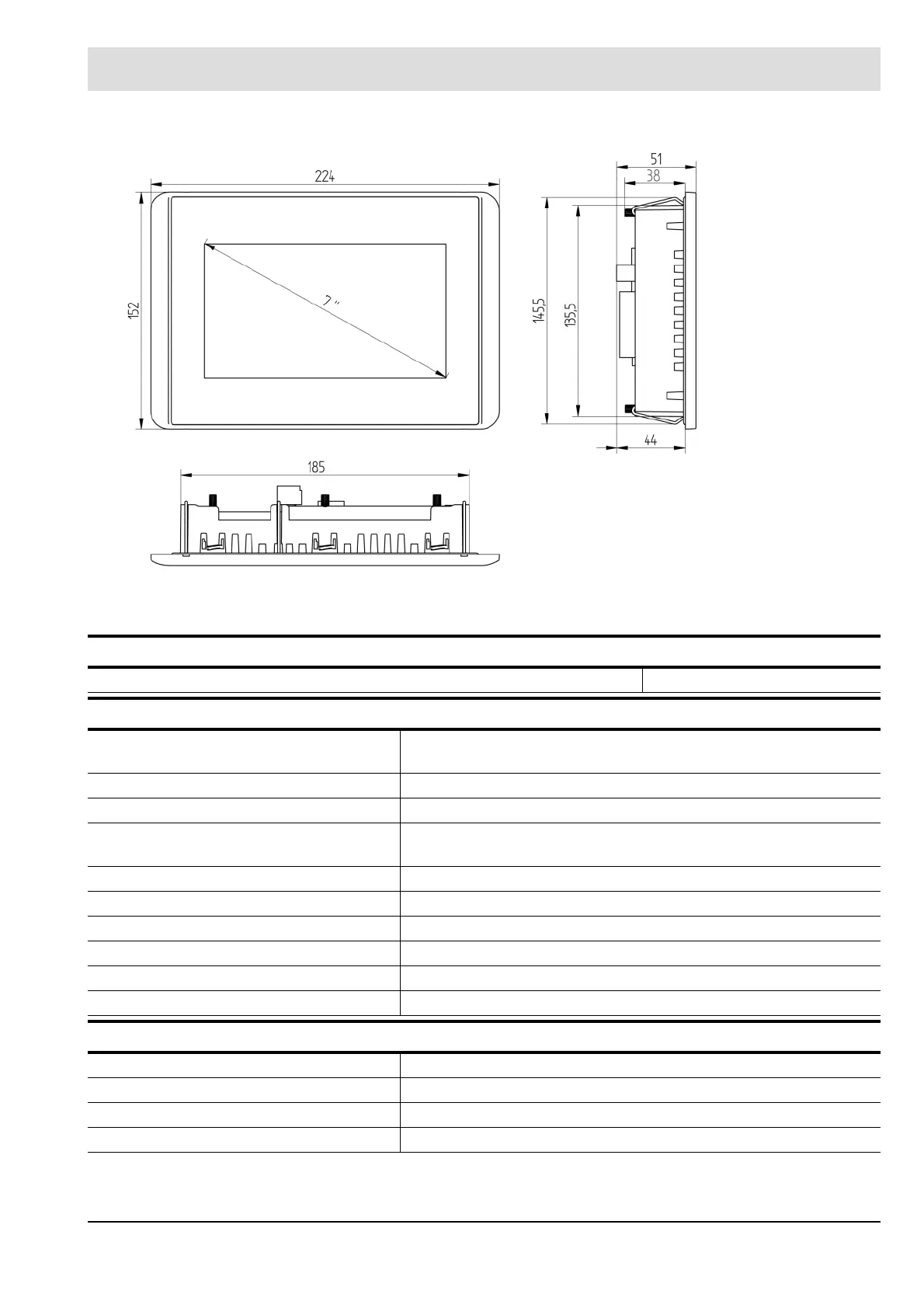

Fig. 4-40 GUI607 mounting dimensions in mm
Cut-out for GUI706 installation: 187 mm × 136.5 mm for a sheet thickness of 2 mm
Part number
GUI607 graphical user interface, 7" 24 VDC, panel installation Type 668R1000
Function
Supply voltage 24 VDC 15/+20% SELV
max. AC voltage component 5% with inverse-polarity protection
Maximum backup fuse 10 A slow-blow
Power consumption
Module electronics current consump-
tion
Type 0.3 A, max. 1.2 A at +24 VDC
Display diagonal/resolution 7" display, 800 × 400 (WVGA)
Touch screen type Resistive
Colours TFT: 16.7 M (24 bits/pixel)
CPU 800 MHz ARMÒ CPU with Cortexä-A9 single core
RAM/flash/non-volatile memory 256 MB RAM/256 MB flash/100 kB FRAM
Communication interfaces 2x Ethernet, 10/100 Base, RJ45
Housing
Dimensions (H × W × D) [mm] 222 × 152 × 57
Weight [kg] 0.6
Installation Integrated locking tabs
Flammability
