193
7
Operating Control and Displays
Safety
Accessing the ’Level CRCs’ submenu (AL1)

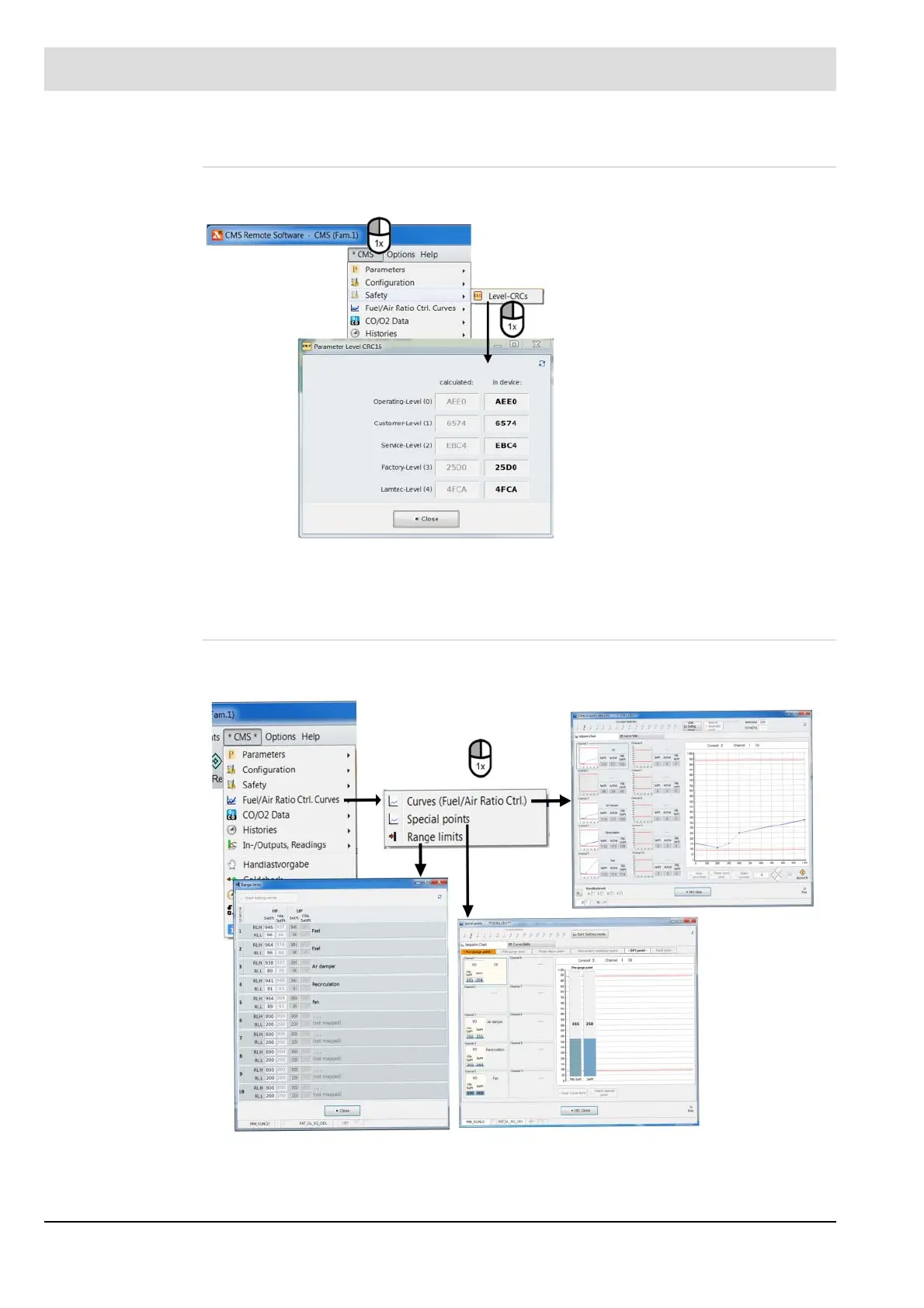

Fig. 7-72 Accessing the CMS parameter submenu ’Level CRCs’
Displays the CRC checksums for the individual user levels as calculated and
stored in the device.
RC Curves
Accessing the CMS menu ’RC curves’ and submenus (AL1)
Fig. 7-73 Accessing the CMS menu ’RC curves’ and submenus
193
195
