210
8
CO/O
2
Control
8.6.2
Overview of Functions
The LAMTEC CO/O
2
control consists of the following components:
•
CMS Combustion Management System with the option CO/O
2
control
•
L
T3-F Lambda T
ransmitter with KS1D combination probe
The LAMTEC SYSTEM BUS (LSB) transmits the measured values and operating states to
CMS.
NOTICE
The CO/O
2
control only takes over when the probe is ready for operation.

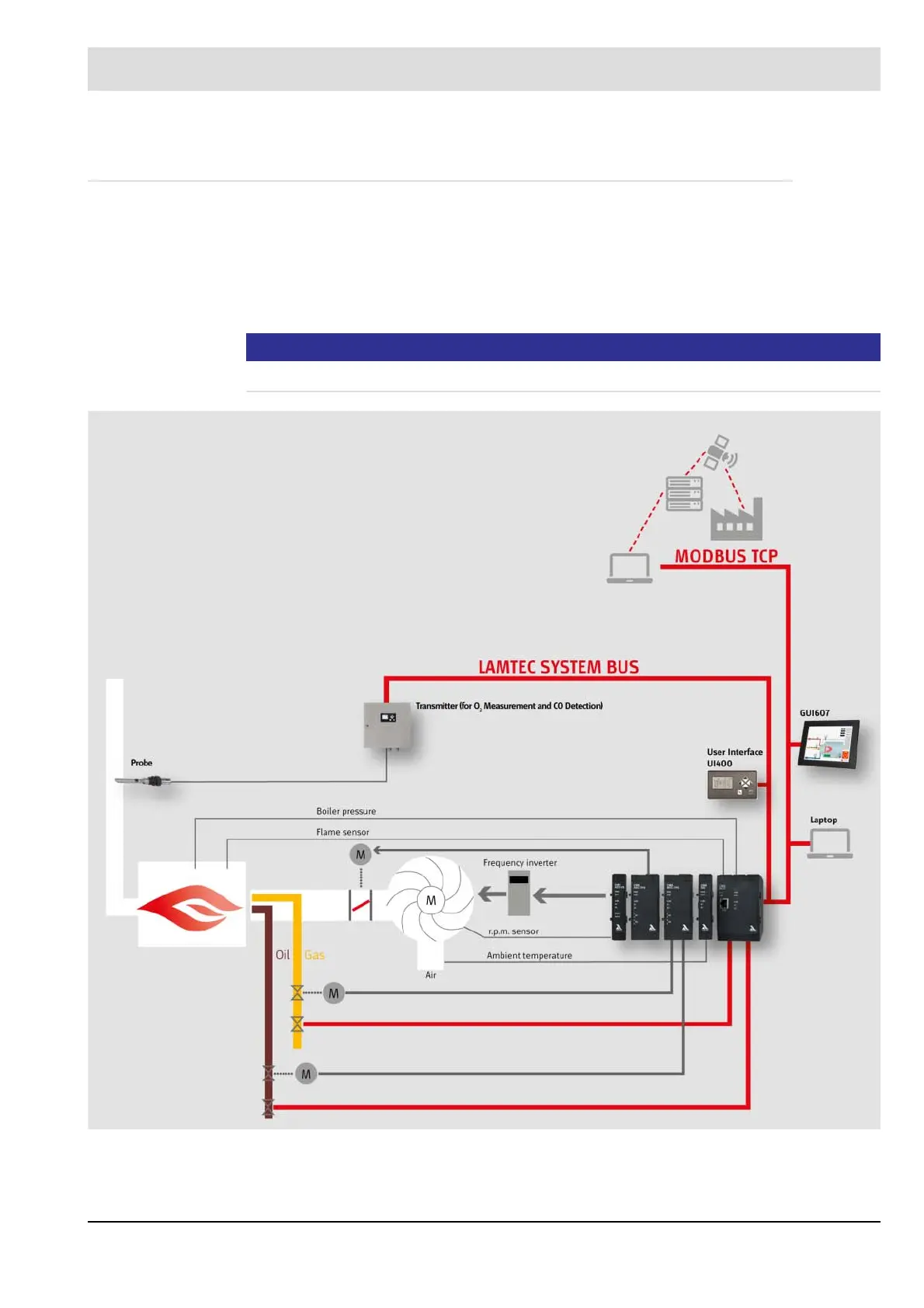

Fig. 8-2 System overview CO/O
2
control Gerät
210
212
