Safety Lanyard Repair Procedures
71
7.5. Safety Lanyard
1. Remove the lower control panel as outlined in “Lower Control Panel Electronics” on page 68.
2. Remove the emergency stop switch, which is secured with four screws, as shown in Lower Control Panel Com-
ponents.
3. Remove the cover, it is secured by three screws as shown in the following figure.

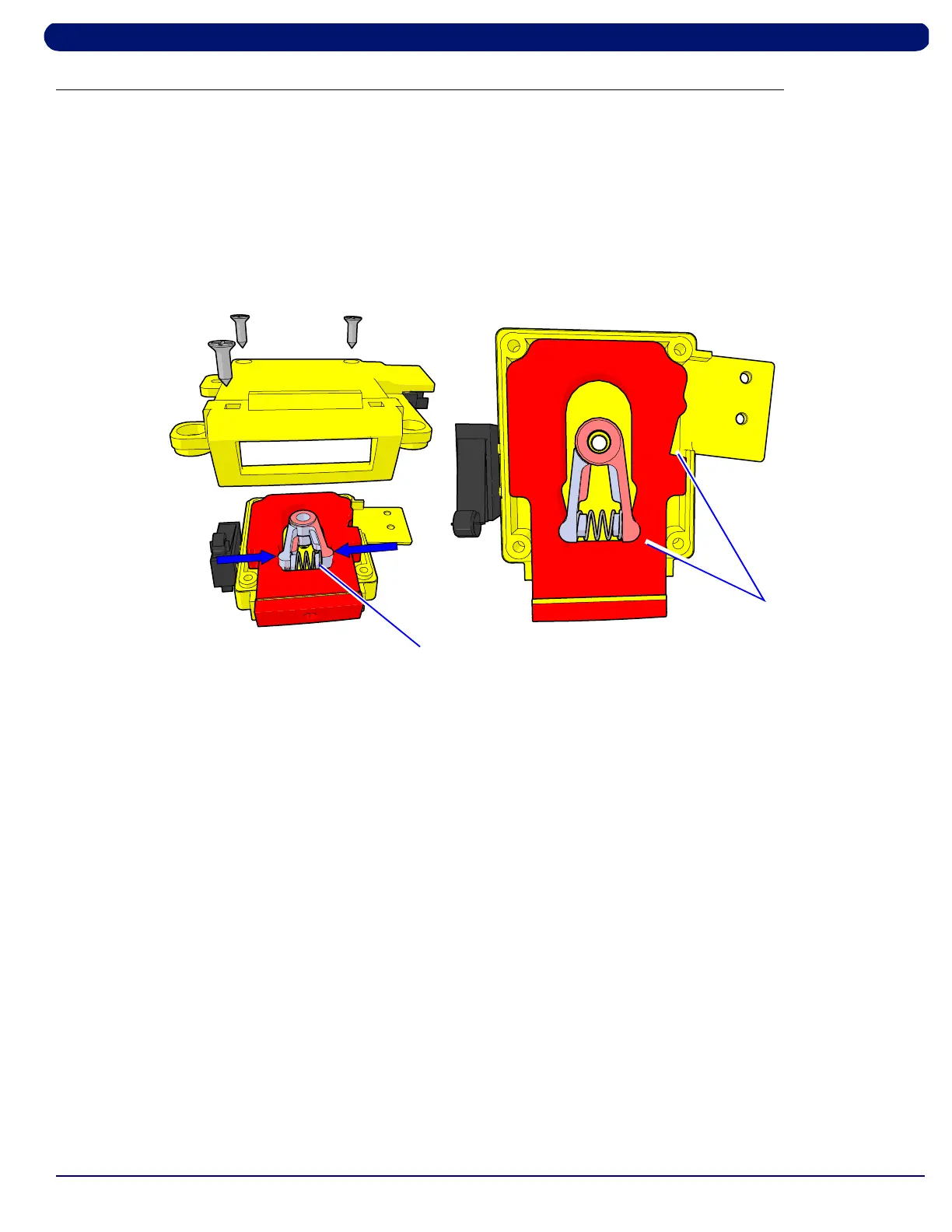

Figure 7-6. Safety Lanyard Assembly
4. Compress the spring assembly and remove from the lanyard assembly. Do not allow it to spring free.
5. Remove the lanyard block and untie the lanyard string to remove it.
6. The installation is the reverse of removal but remember to run the lanyard string through the front opening in the
cover and the hole in the block and tie it in the block to secure it.
