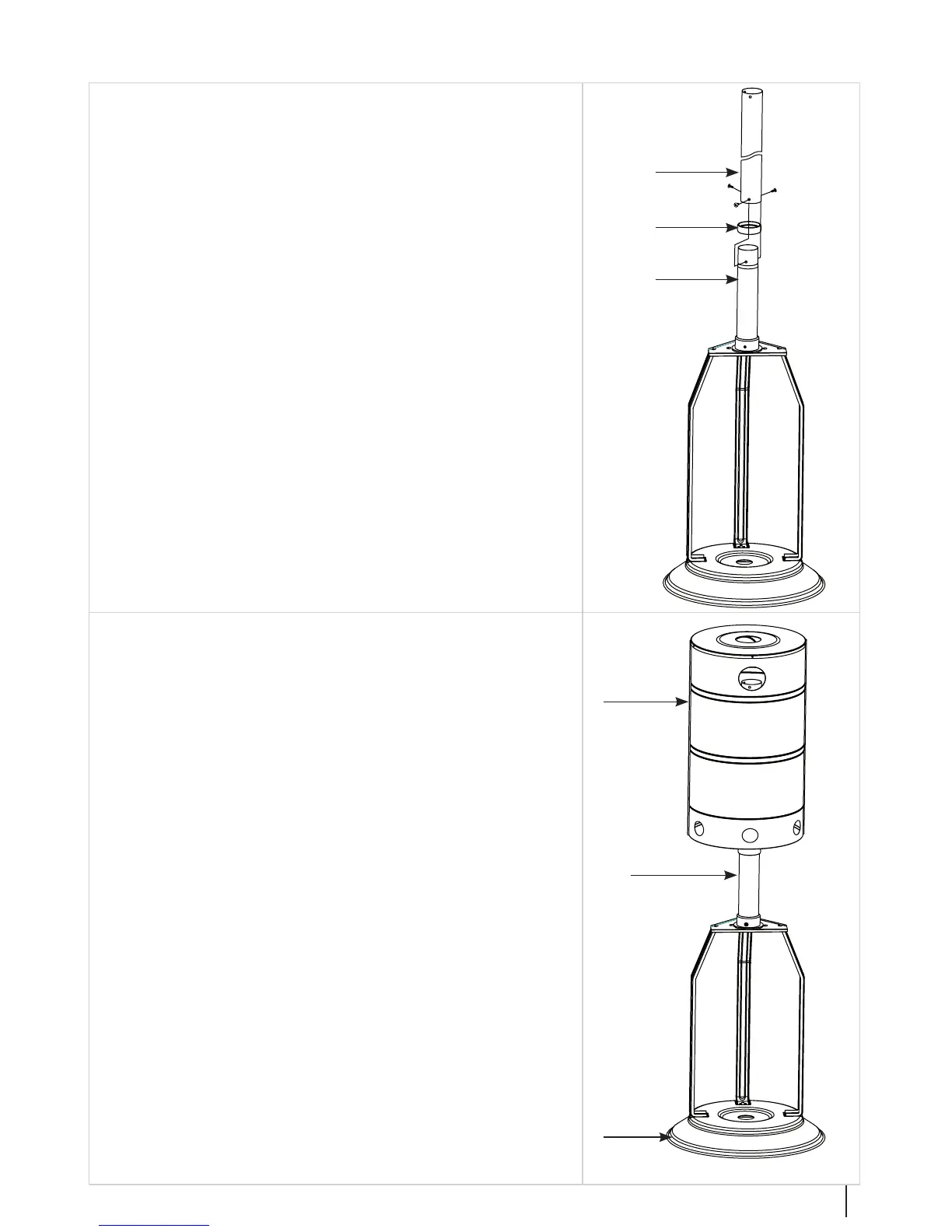

4. Place the connecting ring (6) onto the lower column (long)
(5). Now slide the upper column (short) (7) onto the lower
column (long) (5) until the three holes overlap. Secure the
column (long and short) (5 +7) using M5x15 (f) bolts.
5. Slide the cylinder chamber (8) over the column (long and
short) (5 +7) until it reaches the base. (1).
6
7
5
8
1
5+7
