16
Landmann

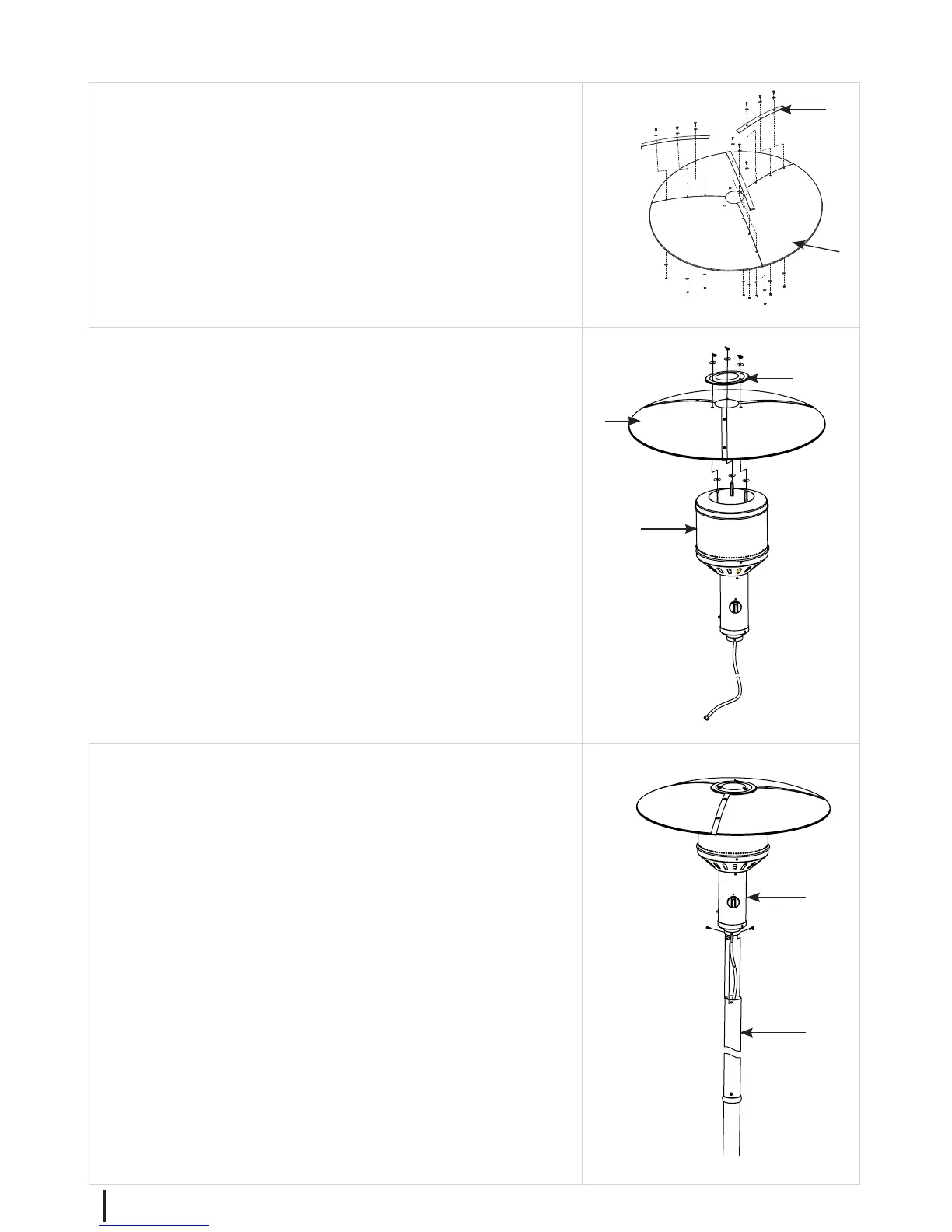

6. Screw the connections for the reflector (13) to individual
reflector units (12) using M4x15 (g) bolts, Ø4.3 (i) washers
and M4 (h) nuts.
7. First place the reflector and the connecting ring (14) onto
the threaded rods of the burner (11). Secure the reflector
(12) in place using Ø 6.5 (c) washers and M6 (b) bolts.
8. Feed the hose through the column (long and short) (5+7)
and secure the burner unit (11) to the column (long and
short) (5+7) using 3 M6x15 (d) hex bolts.
(see Fig. d)
12
13
14
13
11
11
5+7
