Landmann 42170 - Step 3: Tank Tray Bolt Installation; Step 4: Magnet Attachment; Step 5: Left Side Panel Attachment; Step 6: Right Side Panel Attachment

8
Assembly Instructions
4
A
W
EE

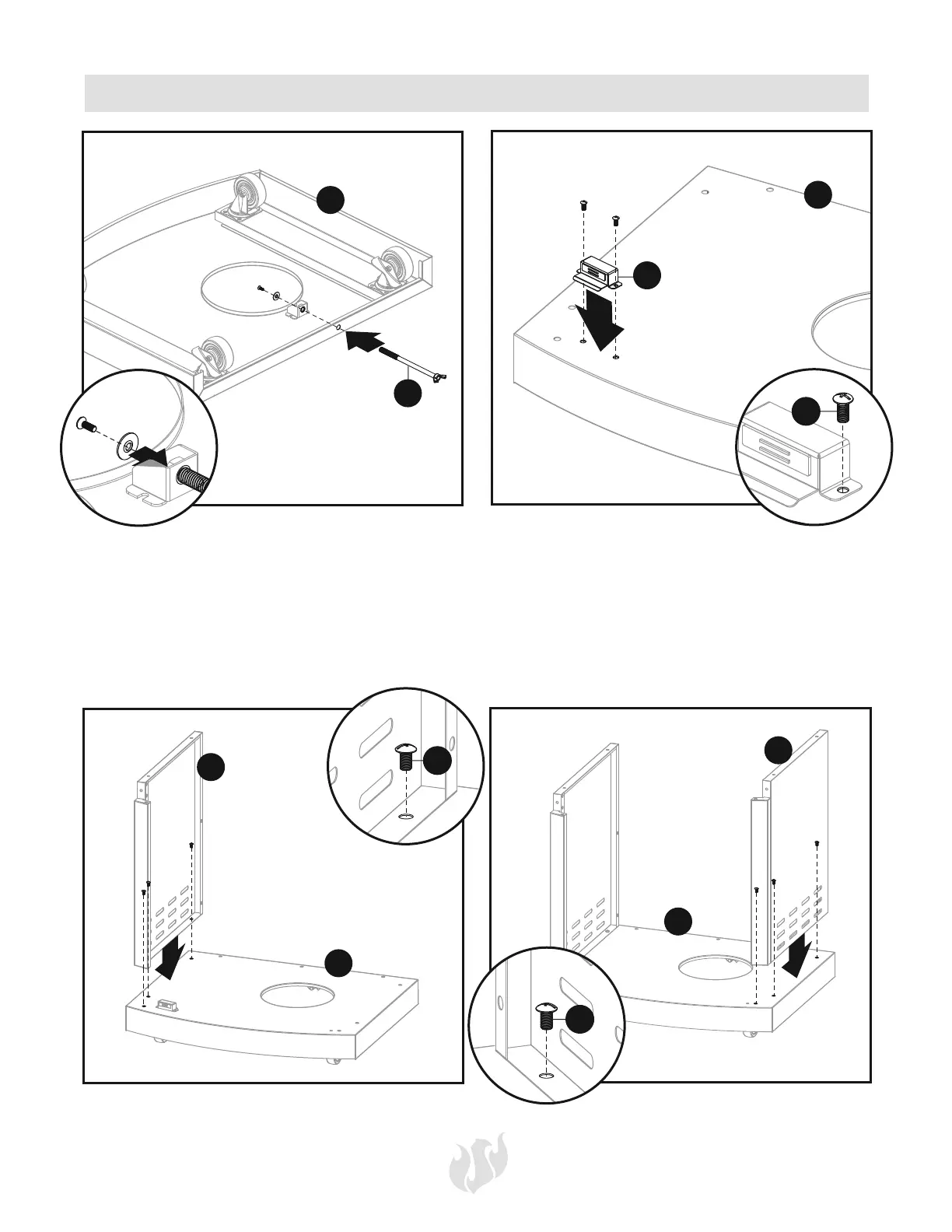

Thread tank tray bolt (D) through hole in back of bottom
panel (A) and holder. Secure firmly with washer and
small bolt.
Note: Washer and small bolt are attached to the tank
tray bolt (D) and must be removed for assembly.
Attach magnet (W) to bottom panel (A) and secure
with bolts (EE) as shown.
6
A
F
AA x3 AA
Attach right side panel (F) to bottom panel (A) with
bolts (AA).
3
A
D
5
AA
A
E
Attach left side panel (E) to bottom panel (A) with
bolts (AA).
