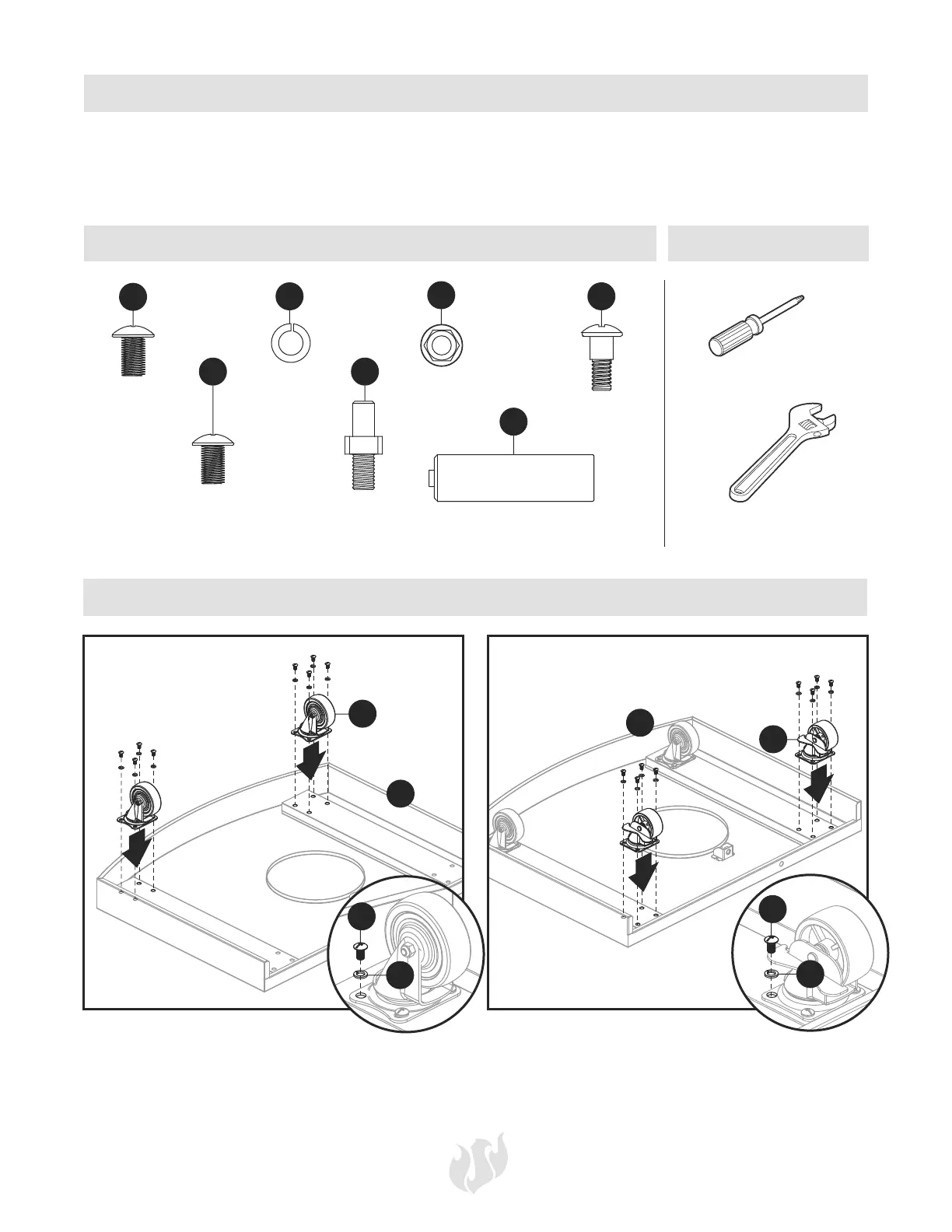

Landmann 42170 - Preparation; Hardware Contents; Tools Required; Assembly Instructions

7
Hardware Contents
BB
Spring
Washer
Qty: 16
CC
M6 Nut
Qty: 8
Step Bolt
Qty: 8
DD
EE
L
V
AA
M
6 x 12mm
Bolt
Qty: 49
M5 x 10mm Bolt
Qty: 3
Door
Bottom Pin
Qty: 1
AA Battery
Qty: 1
+ –
Preparation
Before beginning assembly of this grill, make sure all parts are present (see Package Contents on page 6 and
Hardware Contents below). If any part is missing or damaged, DO NOT attempt to assemble the product.
Estimated assembly time: 50 minutes with two people
Assembly Instructions
1
BB
AA
A
B
A
C
2
AA x8
BB
AA
Attach non-locking casters (B) to the front of the
bottom panel (A) and secure using spring washers
(BB) and bolts (AA).
Attach locking casters (C) to bottom panel (N) and
secure with spring washers (BB) and bolts (AA).
Tools Required
2 pt Phillips
Screwdriver
Adustable Wrench
