LW 225 E / LW 245 B
Version: 19.11.2015
Compressor Lubrication
Pistons, cylinders, crankshaft and connecting rods are provided with oil by splash lubrication.

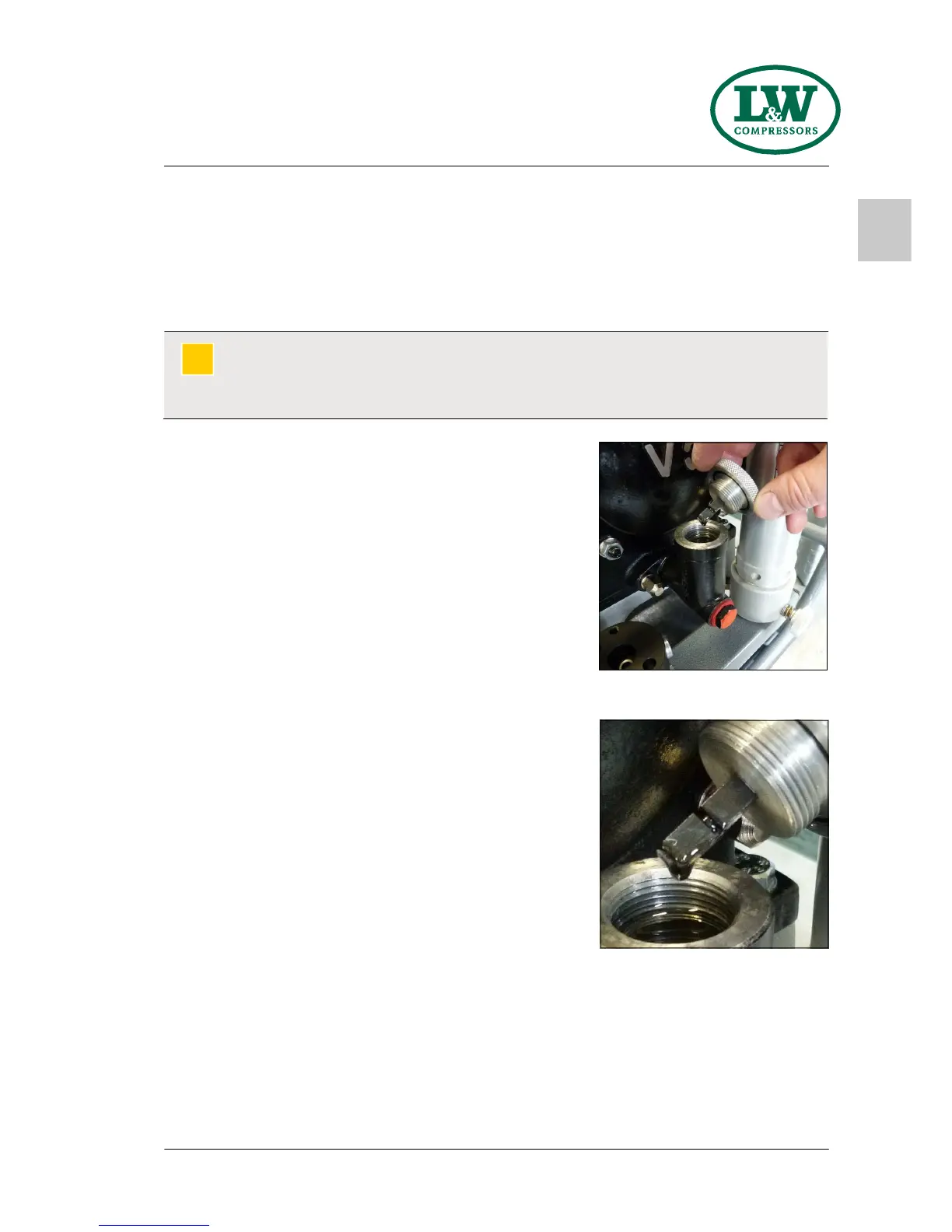

Check oil level
Check the oil level before each operation of the unit.
Oil level check as follows:
• Screw out oil dipstick
• Wipe off oil residues
• Insert the oil dipstick as far as it will go back into its tube
and screw in.
• Screw out oil dipstick again
• The oil level should reach the upper maximum marking but
minimum the lower edge of the oil dipstick. Refill new
compressor oil at least when the recommended oil level
wasn´t reached.
• Screw in the oil dipstick as far as it will go back into its
tube.
Warning
Check oil level daily. Never start the compressor with a too low oil level. Risk of accidental
loss, destruction or deterioration.
!
Oil cover
Oil level
