L&W LW 225 E - Oil-;Water Separator Maintenance

Page A - 51
A
LW 225 E / LW 245 B
Version: 19.11.2015
Oil change
Oil change as follows:
• Run compressor warm for about 2 minutes.
• Switch off and vent compressor.
• Tilt the compressor aside.
• Place a suitable oil drain tray under the drain plug (red
marked hexagon bolt).
• Screw off red oil drain plug carefully.
• Drain oil.
• Screw in red oil drain plug and tighten.
• Pull out oil cover (Fig. 1) and fill with oil. (Fig. 2)
• Check oil level.
• Check condition og oil cover o-ring and insert the oil cover.
The oil change is now completed.
Maintenance intervals
• First oil change after 25 operating hours (total hours).
• All further changes after each 250 operating hours.
Oil and oil capacity
Approx. 800 ml synthetic compressor oil is necessary for one oil change. Only use synthetic
compressor oil which is recommended as suitable from L&W. (P/N: 000001)
Only LW 245 B
Drive motor oil change intervals: see manufacturer's specification for the drive motor.
(L&W P/N: 000004)
Note
We recommend oil change at least once a year - depending on total operating hours.
i

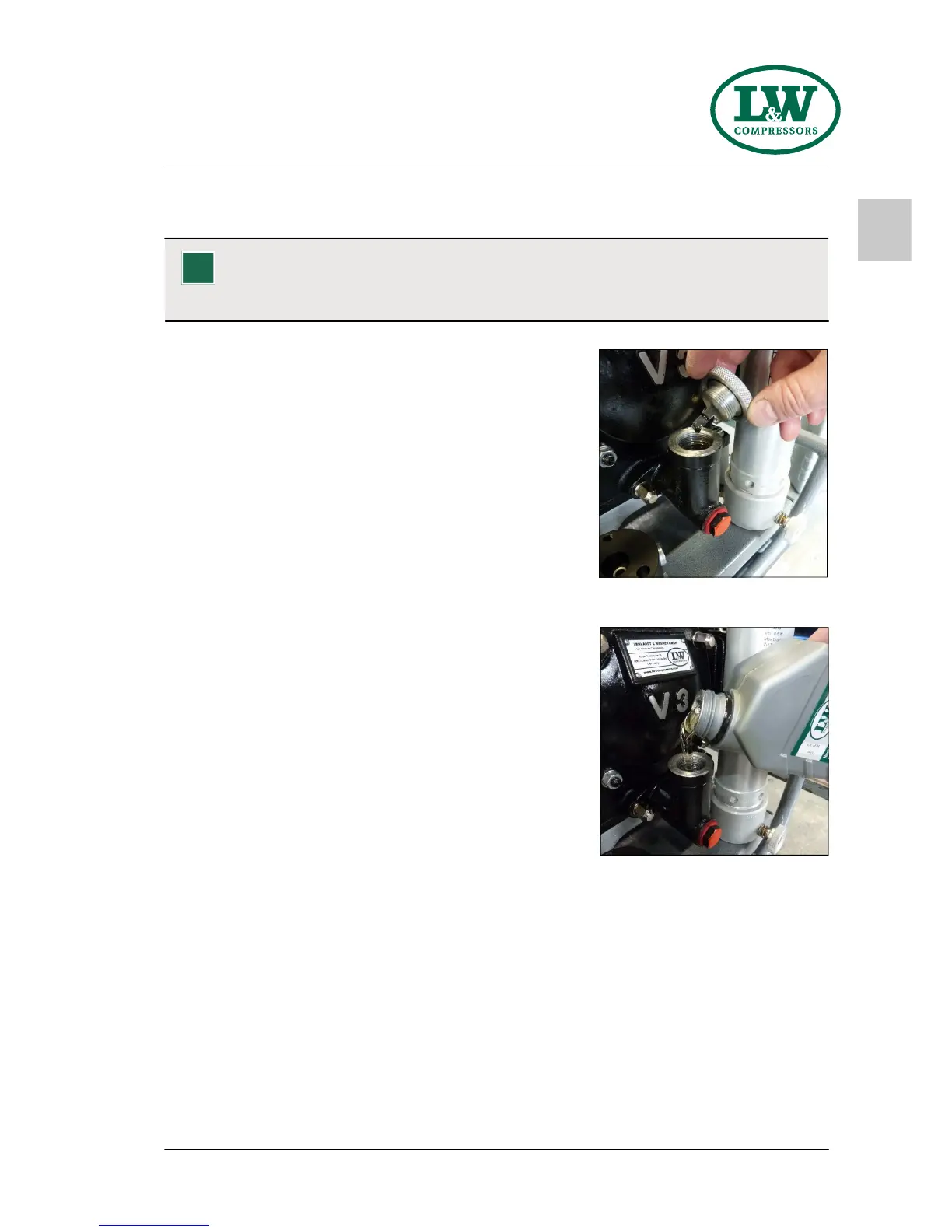

(Abb.1) Öldeckel mit Ölpeilstab
(Abb.2) Ölstand
M A I N T E N A N C E A N D S E R V I C E
